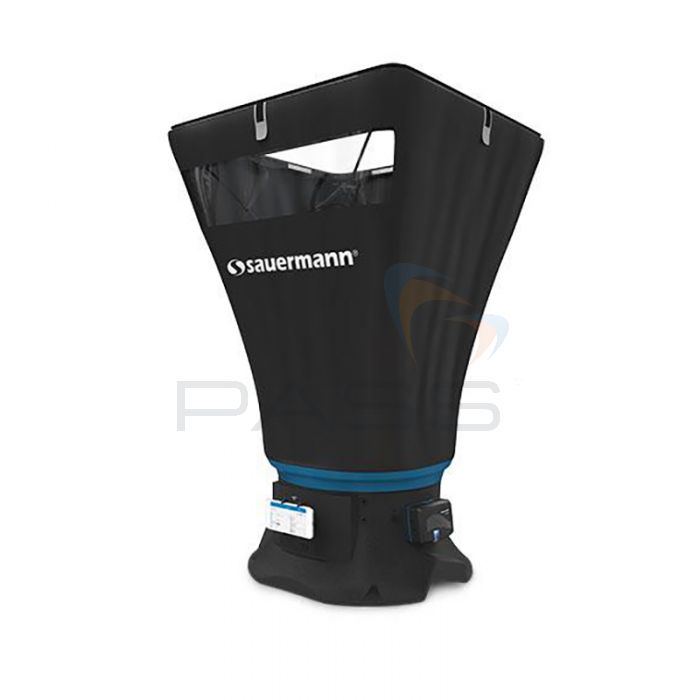

The KIMO DBM620 Electronic Air Flow Meter is a multipurpose electronic air balancing instrument capable of measuring air volume at air vents as well as airflow, relative humidity, atmospheric pressure, temperature, differential pressure, and air velocity. Users can set the KIMO DBM620 Electronic Air Flow Meter to display any four of these parameters.

The KIMO DBM620 Electronic Air Flow Meter is available as part of a standard kit or DBM620C kit. Please see the ‘What’s Included?’ section for more information.

This lightweight, compact, and easy-to-transport air flow meter has a measurement range of 35 to 4250 m³/h (10 to 1181 L/s). The KIMO DBM620 Electronic Air Flow Meter also supports automatic averaging, point-by-point averaging, and automatic airflow direction (extraction or air blast). In addition to this, it includes Hold and ACR (Air Change Rate) functions.

Users can swap between 5 hood configurations quickly and easily; when used with the Pitot tube attachment, the KIMO DBM620 Electronic Air Flow Meter also functions as an autonomous micromanometer. The extendable tripod eliminates the need for ladders while the Hood’s flow straightener ensures the KIMO DBM620 Electronic Air Flow Meter is compatible with all air vent types.

Finally, the KIMO DBM620 Electronic Air Flow Meter can be used with the SmartKap App allowing users to export data to a smartphone or tablet for easy reading and reporting. To this end, the KIMO DBM620 Electronic Air Flow Meter is equipped with long-range and low energy Bluetooth® 4.2.  Additionally, the SmartKap App allows users to make corrections based on diffusor types to ensure accurate measurement.

The KIMO DBM620 Electronic Air Flow Meter is a multifunctional anemometer, micromanometer and balometer.

KIMO DBM620 Electronic Air Flow Meter Key Features

  • A multipurpose electronic air balancing instrument
  • Measure air volume at air vents
  • Airflow
  • Relative humidity
  • Atmospheric pressure
  • Temperature
  • Differential pressure
  • Air velocity
  • View any four parameters simultaneously
  • Available as part of a standard or DBM620C kit
  • Lightweight, compact, and easy-to-transport
  • Measurement range: 35 to 4250 m³/h (10 to 1181 L/s)
  • Automatic averaging
  • Point-by-point averaging
  • Automatic airflow direction (extraction or air blast)
  • Hold function
  • ACR (Air Change Rate) function
  • Swap between 5 hood configurations quickly and easily
  • Use as an autonomous micromanometer with the Pitot tube attachment
  • Extendable tripod
  • The hood flow straightener ensures it is compatible with all air vent types
  • Export data to a smartphone or tablet for easy reading and reporting using the SmartKap App
  • Use the SmartKap App to make corrections based on diffusor types to ensure accurate measurement
  • Equipped with long-range and low energy Bluetooth® 4.2
  • A multifunctional anemometer, micromanometer, and balometer

What’s Included?

KIMO DBM620 Electronic Air Flow Meter Standard Kit

  • KIMO DBM620 Electronic Air Flow Meter
  • Measurement Grid
  • Temperature and Hygrometry Probe
  • Removable measuring unit with Bluetooth and 4 Alkaline Batteries
  • 610 x 610mm Hood with Flow Straightener and Foldable Frame
  • Sheath with Four Fixing Rods
  • 2x 0.80m Silicone Tube
  • Replacement Hinges for Frames
  • Transport Case
  • Calibration Certificate

KIMO DBM620C Electronic Air Flow Meter DBM620C Kit

  • KIMO DBM620 Electronic Air Flow Meter
  • Measurement Grid
  • Temperature and Hygrometry Probe
  • Removable measuring unit with Bluetooth and 4 Alkaline Batteries
  • 610 x 610mm Hood with Flow Straightener and Foldable Frame
  • 720 x 720mm Hood with Foldable Frame and Transport
  • 720 x 1320mm Hood with Foldable Frame and Transport Case
  • 420 x 1520mm Hood with Foldable Frame and Transport Case
  • 1020 x 1020mm Hood with Foldable Frame and Transport Case
  • Sheath with Four Fixing Rods
  • 2x 0.80m Silicone Tube
  • Replacement Hinges for Frames
  • Transport Case
  • Calibration Certificate

Kit Comparison

Kit Standard  DBM620C
KIMO DBM620 Electronic Air Flow Meter

Measurement Grid

Temperature and Hygrometry Probe

Removable measuring unit with Bluetooth and 4 Alkaline Batteries

610 x 610mm Hood with Flow Straightener and Foldable Frame

720 x 720mm Hood with Foldable Frame and Transport

720 x 1320mm Hood with Foldable Frame and Transport Case

420 x 1520mm Hood with Foldable Frame and Transport Case

1020 x 1020mm Hood with Foldable Frame and Transport Case

Sheath with Four Fixing Rods

2x 0.80m Silicone Tube

Replacement Hinges for Frames

Transport Case

Calibration Certificate

Part Code

KIMO DBM620 Electronic Air Flow Meter Technical Specifications

Display On smartphone or tablet(1)
Integrated support for smartphone or tablet Adjustable integrated support
Smartphone or tablet max. width: 10 cm (4’’)
Connectors/Pneumatic ABS connectors, Ø7x4 mm
Maximum operating pressure 500 mbar
Storage capacity Standard size of a measurement dataset report: 1 Mo
Housing Shock-proof made of ABS
Protection IP40
Keypad 1 key on the housing
Power supply 4 alkaline batteries LR6 AA 1.5V(2)
Battery life Up to 30 hours
Bluetooth® Class 1 Bluetooth® 4.2
Bluetooth® range: 2.4 GHz
Range up to 30 m (98 ft) - Depending on smartphone and tablet Bluetooth® radio strength.
Minimum required versions: Android 4.4, iOS 8.0,
Bluetooth® 4.0
Device dimensions Folded: 475 x 455 x 255 mm (1.56 x 1.49 x 0.84 ft)
Mounted: 610 x 610 x 980 mm (2 x 2 x 3.22 ft)
Environmental conditions of use Air, non corrosive and combustible gases
Temperature: from -5 to +50°C (23 to 122°F),
in dry air and non-condensing condition
Hygrometry: in non-condensing conditions (< 80% RH)
Maximum altitude: 2000 m (6561’)
Storage temperature From -20 to +60°C (-4 to 140°F)
Auto-shut-off Adjustable from 0 to 60 minutes
Weight Base/Measuring unit/Hood/Frame: 2.9 kg (6.4 lbs)
Standard DBM 620 content kit: 6.4 kg (14.1 lbs)
Languages German, Spanish, Italian, Dutch, Portuguese, Hungarian, Polish, Romanian, Russian, Slovak, Finnish, Danish, Norwegian, Swedish, Chinese, Korean, Japanese
European Union Directives 2011/65/EU RoHS II; 2012/19/EU WEEE; 2014/53/EU RED
Notes  (1) Device not provided
(2) We recommend the use of type Nx PCA9002 batteries
