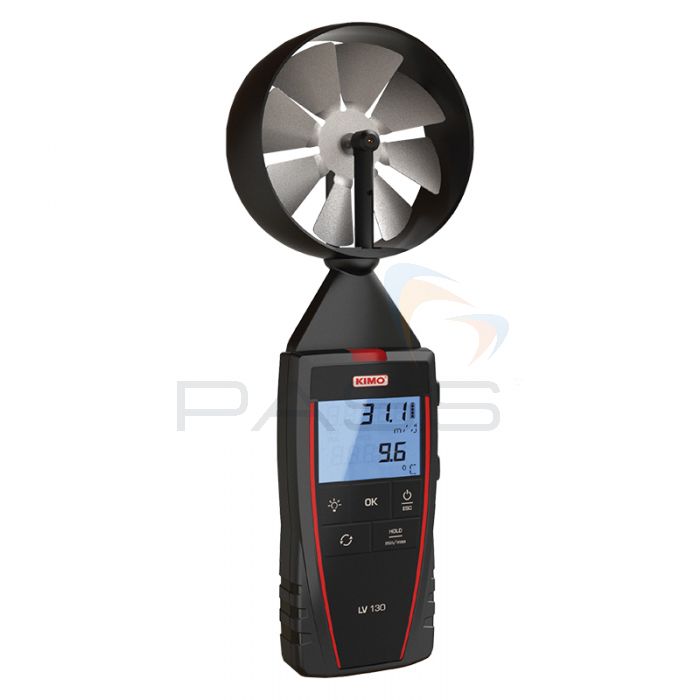

KIMO LV130 Thermo Anemometer w/ Built-In Vane Probe (100mm Diameter)
The KIMO LV130 is a precision portable anemometer with a built-in large measurement vane (100mm diameter) suited for making large air flow and air velocity calculations.
This anemometer can be used to measure air velocity, air flow and temperature levels, all using the built-in vane. It can measure velocity in selectable units of m/s, fpm or km/h across a range from 0.3 to 35m/s; it measures airflow in selectable units of m³/h, cfm, l/s and m³/s with range of 0 to 99,999m³/h and it also tests temperature in Celsius/Fahrenheit from 0 to 50°C.
Need more precise airflow measurements? The KIMO LV130 gives you the ability to use optional airflow cones (see the datasheet for more info) to measure in specific-shaped ducts and similar applications. This instrument will also automatically determine flow direction to ensure accurate results.
KIMO's LV130 anemometer has several additional features including a HOLD function (temporarily stores current values shown on the screen), a MIN/MAX mode and a backlit LCD screen.
KIMO LV130 Thermo Anemometer Key Features
- Precision anemometer for measuring air temperature, air velocity and air flow
- Built-in measurement vane (100mm diameter)
- Measure velocity in selectable units of m/s, fpm or km/h across a range from 0.3 to 35m/s
- Measure airflow in selectable units of m³/h, cfm, l/s and m³/s with range of 0 to 99,999m³/h
- Measure temperature in Celsius/Fahrenheit from 0 to 50°C
- Compatible with optional cones (sold separately)
- Automatic average
- HOLD function - freezes current values shown on the screen
- MAX/MIN mode - calculates the maximum/minimum values taken over a period of time
- Adjustable automatic shutoff - adjustable from 0 to 120 minutes
- Backlit LCD screen
- Automatically determines flow direction
What's Included?
- KIMO LV130 Thermo Anemometer
- Calibration Certificate
- Transport Case
Optional Accessories
- CQ15 Magnetic Housing
- K25 and K85 Airflow Cones
- MT51 ABS Transport Case
KIMO LV130 Technical Specifications
| Measuring Units | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| Air Velocity | |||
| m/s, fpm, km/h | From 0.3 to 35m/s | From 0.3 to 3m/s: ±3% of reading ±0.1m/s | 0.01m/s |
| From 3.1 to 35m/s: ±1% of reading ±0.3m/s | 0.1m/s | ||
| Airflow | |||
| m³/h, cfm, l/s, m³/s | From 0 to 99,999m³/h | ±3% of reading ±0.03 area (cm²) | 1m³/h |
| Temperature | |||
| Celsius/Farhenheit | From -20 to +80°C | ±0.4% of reading ±0.3°C | 0.1°C |
| General Specifications | |||
| Measuring Elements | Air Velocity: hall effect sensor Ambient Temperature: NTC sensor |
||
| Display | 4 lines, LCD technology. Size: 50 x 36mm 2 lines of 5 digits with 7 segments (value) 2 lines of 5 digits with 16 segments (unit) |
||
| Vane Probe Diameter | 100mm | ||
| Housing | ABS, protection: IP54 | ||
| Keypad | 5 keys | ||
| Conformity | Directives CEM 2004/108/CE and NF EN 61010-1 | ||
| Power Supply | 4 x AAA, LR03, 1.5V batteries | ||
| Battery Life | 120 hours | ||
| Ambience | Neutral gas | ||
| Operating Temperature (Instrument and Probe) | From 0 to +50°C | ||
| Storage Temperature | From -20 to +80°C | ||
| Automatic Shutoff | Adjustable from 0 to 120 minutes | ||
| Weight | 390g | ||
| SKU | K-LV130 |
|---|---|
| Manufacturer Part Code | LV 130 |
| Model Ref | LV 130 |
