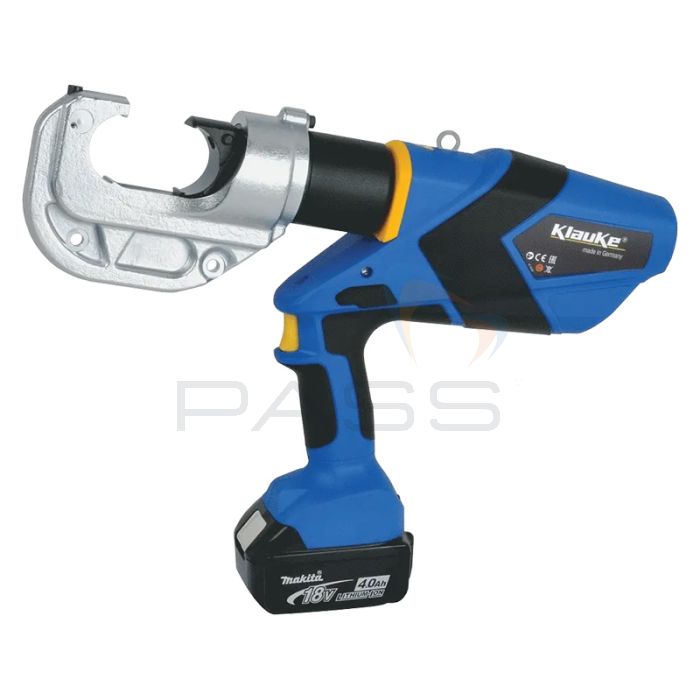

Klauke 120/42 Battery Powered Hydraulic Crimping Tool
- Rotatable open head
- 16 - 400 mm²
- Bosch or Makita battery
SKU
KL-120/42-B/M
The Klauke EK 120/42 crimping tool has a C-head with a very wide crimping range of up to 400 mm². It is easy to handle and is compatible with the Klauke Link® app, which displays all the tool data. Up to 60 % fewer crimps thanks to wide crimping in comparison to 6 t tools.
Suitable for 13-series interchangeable crimping dies, and wide crimping. Two instrument variations are available, choose either a Bosch battery or a Makita Battery.
Key Features
- Choose your battery system: Bosch or Makita
- All data can be easily read via Bluetooth
- Open head, rotatable
- Quality assurance via visual and audible signals in case of error
- Simple and safe: one-button operating concept for controlling all tool functions
- Effortless working due to a balanced centre of gravity
- LED for work area illumination
- 2-stage hydraulic system with fast feed and power stroke
- Simple and safe: automatic retraction when operation is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Always ready to use thanks to the battery charge and service display
What's Included?
- EK12042CFB - Bosch
- EK 120/42 Battery powered hydraulic crimping tool
- RALB2EU Bosch battery 18 V / 5.0 Ah, Li-Ion
- LGLB1EU Bosch quick-charger for 18 V Li-Ion batteries
- KK120NG Hard plastic carrying case
- EK12042CFM - Makita
- EK 120/42 Battery powered hydraulic crimping tool
- RAL40 18 V / 4.0 Ah, Li-Ion Makita battery
- LGL1 Makita quick-charger for 18 V Li-Ion batteries
- KK120NG Hard plastic carrying case
Product Range
- Klauke EK12042CFB Battery Powered Hydraulic Crimping Tool, Bosch
- Klauke EK12042CFM Battery Powered Hydraulic Crimping Tool, Makita
Technical Information
Specification
| BOSCH BATTERY SYSTEM | |
|---|---|
| Crimping Force | 120 kN |
| Stroke/Opening Width | 42 mm |
| Crimping Range | 16-400 mm² |
| Crimping Cycle | 8 s to 9 s (depending on crimping cross-section) |
| Battery Voltage | 18 V |
| Battery Capacity | 5.0 Ah, Li-Ion |
| Battery Charging Time | 45 mins |
| Weight Including Battery | 7.1 kg |
| Ambient Temperature | -10 °C to + 40 °C |
| MAKITA BATTERY SYSTEM | |
|---|---|
| Crimping Force | 120 kN |
| Stroke/Opening Width | 42 mm |
| Crimping Range | 16-400 mm² |
| Crimping Cycle | 8 s to 9 s (depending on crimping cross-section) |
| Number of Crimps | approx. 115 at 150 mm² Cu DIN |
| Battery Voltage | 18 V |
| Battery Capacity | 4.0 Ah, Li-Ion |
| Battery Charging Time | 36 mins |
| Weight Including Battery | 7.1 kg |
| Ambient Temperature | -12 °C to + 40 °C |
Document Downloads
Klauke Battery Powered Hydraulic Crimping Tool, Bosch User Manual
Klauke Battery Powered Hydraulic Crimping Tool, Makita User Manual
Additional Information
SKU
KL-120/42-B/M
Klauke 120/42 Battery Powered Hydraulic Crimping Tool
