Klauke EK 135 FT Battery-Powered Hydraulic Crimping Tool, 10 - 630mm2
Free Tyre Inflator (Spend £500+)
- Crimping range to 630 mm²
- Crimping force of 13.5 t
- Makita or Bosch battery systems
SKU
EK135FTCFM/B

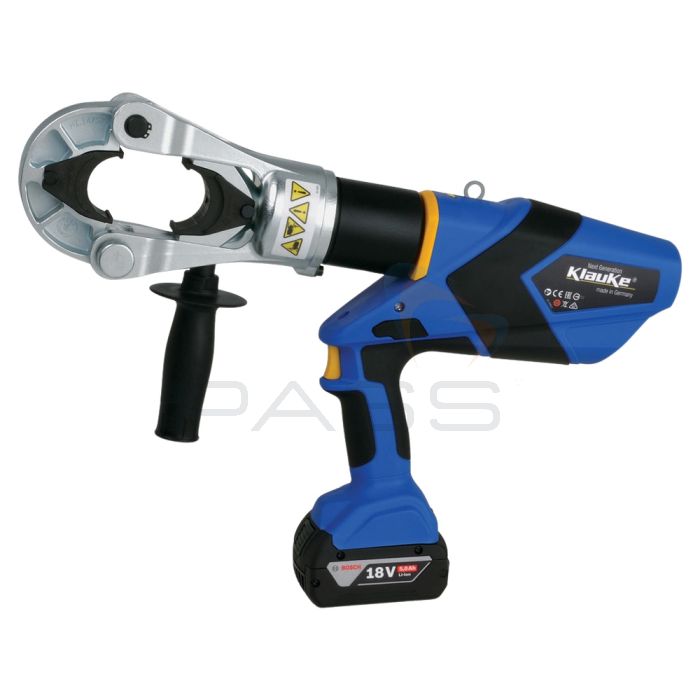

The Klauke EK 135 FT is a hydraulic crimping tool powered by a Makita or Bosch battery. It can handle various cable sizes, from 10 mm² to 630 mm². The instrument is suitable for the 13- and 15-series interchangeable crimping dies. It delivers a crimping force of 13.5 tonnes and has a two-stage hydraulic system.
Key Features
- Makita or Bosch battery systems
- Very large crimping range to 630 mm²
- Very powerful with a crimping force of 13.5 t
- All tool data is in view thanks to the display and Klauke Link app
- All data can be easily read via Bluetooth
- Closed head, rotatable
- Quality assurance via visual and audible signals in case of error
- One-button operating concept for controlling all tool functions
- Effortless working due to a balanced centre of gravity
- LED for work area illumination
- 2-stage hydraulic system with fast feed and power stroke
- Automatic retraction when operation is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Always ready to use thanks to the battery charge and service display
What's Included?
- EK135FTCFM - Makita Battery System
- Battery-powered hydraulic crimping tool
- Makita battery, 18 V / 4.0 Ah, Li-Ion - RAL40
- Makita quick-charger for 18 V Li-Ion batteries - LGL1
- Adapter for crimping dies of Series 13 - UA15T
- Hard plastic carrying case - KK135FTNG
- EK135FTCFB - Bosch Battery System
- Battery-powered hydraulic crimping tool
- Bosch battery 18 V / 5.0 Ah, Li-Ion - RALB2EU
- Bosch quick-charger for 18 V Li-Ion batteries - LGLB1EU
- Adapter for crimping dies of Series 13 - UA15T
- Hard plastic carrying case - KK135FTNG
Product Range
- Klauke EK135FTCFM Battery-Powered Hydraulic Crimping Tool, Makita Battery
- Klauke EK135FTCFB Battery-Powered Hydraulic Crimping Tool, Bosch Battery
Videos
EK 135 FT Introduction
EK 135 FT Battery powered hydraulic crimping tool 10 - 630 mm²
£3,584.00
£4,300.80 inc vat
2 Options in Stock:
Available Next Working Day*
Free Tyre Inflator (Spend £500+)
Find Out More
Offers
Free Tyre Inflator (Spend £500+)
Worth £29.99. Automatically adds to your basket when the total exceeds £500+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Makita Battery System | |
|---|---|
| Crimping Force | 135 kN |
| Stroke/Opening Width | 50.8 mm |
| Crimping Range | 10 - 630 mm² |
| Crimping Cycle | Approx. 9 s (depending on crimping cross-section) |
| Number Of Crimps | Approx. 85 for 1 x 240 mm² NYY-O rm |
| Battery Voltage | 18 V |
| Battery Capacity | 4.0 Ah, Li-Ion |
| Battery Charging Time | 36 mins |
| Weight Including Battery | 10.2 kg |
| Ambient Temperature | -10 °C to +40 °C |
| Bosch Battery System | |
|---|---|
| Crimping Force | 135 kN |
| Stroke/Opening Width | 50.8 mm |
| Crimping Range | 10 - 630 mm² |
| Crimping Cycle | Approx. 10 s to 11 s (depending on crimping cross-section) |
| Battery Voltage | 18 V |
| Battery Capacity | 5.0 Ah, Li-Ion |
| Battery Charging Time | 45 mins |
| Weight Including Battery | 10.2 kg |
| Ambient Temperature | -10 °C to +40 °C |
Document Downloads
Klauke EK135FTCFB Bosch Battery-Powered Hydraulic Crimping Tool User Manual
Klauke EK135FTCFM Makita Battery-Powered Hydraulic Crimping Tool User Manual
