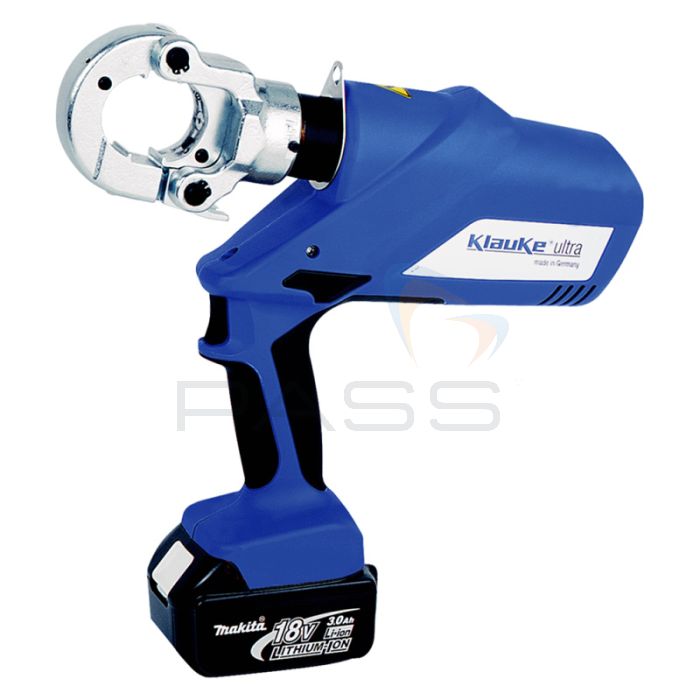

Klauke EK 60/22 Battery-Powered Hydraulic Crimping Tool

All Klauke Products
  • 6 to 300mm²
  • Closed crimping head, flip top style, rotatable
  • Quality assurance
SKU
KL-EK-60-22/SETS

Read More

View All Crimp Tools & Crimping Pliers

The Klauke EK6022L delivers superior performance with its special strong motor and 2-stage hydraulic system. It has an 18V / 3.0 Ah Li-Ion battery and a large crimping range of up to 300 mm². The slim crimping head is an ideal feature when space is of critical essence. Suitable for interchangeable dies, series 22, narrow crimping.

The Crimping Tool is available as a standard kit or can be purchased with a set of dies, two die sets are available - D2216-D222 & L221.

Key Features

  • Closed crimping head, flip top style, rotatable
  • Electronic control and monitoring of crimping operation
  • Integrated pressure measurement with visual and audible signals in case of failure
  • Evaluation function using optical interface and USB adapter
  • One-button operating concept for controlling all tooling functions
  • Ergonomic 2-component plastic housing with soft linings
  • Balanced centre of gravity for easy handling
  • LED for workplace illumination
  • High-performance 18V Li-ion battery with high capacity
  • High-performance motors for maximum operating speed
  • 2-stage hydraulic system with fast feed and power stroke
  • Energy saving function by stopping motor after successful crimping process
  • Quick motor stop for high user safety
  • Automatic retraction when crimping is complete
  • Manual retract in case of need
  • Automatic retract stop (ARS) for positioning control in case of multiple crimpings
  • Multi-function LED for maintenance control, charge level indicator of the battery and data transmission via a USB adapter
  • Environmentally-friendly hydraulic oil, quickly biodegradable

What's Included?

  • EK6022L
  • EK 60/22-L Crimping tool
  • RAL2 Battery 18 V / 3.0 Ah, Li-Ion (54 Wh)
  • LGL1 Quick-charger for 18V Li-Ion batteries, 230 V
  • KK120L Plastic case
  • EK6022LSETD
  • EK 60/22-L Crimping tool
  • RAL2 Battery 18 V / 3.0 Ah, Li-Ion (54 Wh)
  • LGL1 Quick-charger for 18V Li-Ion batteries, 230 V
  • KK120L Plastic case
  • DIES D2216-D222
  • EK6022LSETL
  • EK 60/22-L Crimping tool
  • RAL2 Battery 18 V / 3.0 Ah, Li-Ion (54 Wh)
  • LGL1 Quick-charger for 18V Li-Ion batteries, 230 V
  • KK120L Plastic case
  • DIES L221

Product Range

  • Klauke EK6022L EK 60/22 Battery-Powered Hydraulic Crimping Tool Kit
  • Klauke EK6022LSETD EK 60/22 Battery-Powered Hydraulic Crimping Tool Kit & D2216-D222 Dies
  • Klauke EK6022LSETL EK 60/22 Battery-Powered Hydraulic Crimping Tool Kit & L221 Dies
£2,715.00
£3,258.00 inc vat
Free Delivery*
Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.

Ask An Expert
Price Match
Technical Information
Specification
Crimping Force 60 kN
Stroke / Opening Width 17 mm
Crimping Range 6 - 300 mm²
Crimping Cycle 3 s to 5 s (depending on cross-section)
Number of Crimps approx. 300 at 150 mm² Cu DIN
Battery Voltage 18 V
Battery Capacity 3.0 Ah, Li-Ion
Charging Time 22 min.
Weight incl. Battery 4.2 kg
Ambient Temperature -12°C to +40 °C
Additional Information
SKU
KL-EK-60-22/SETS
