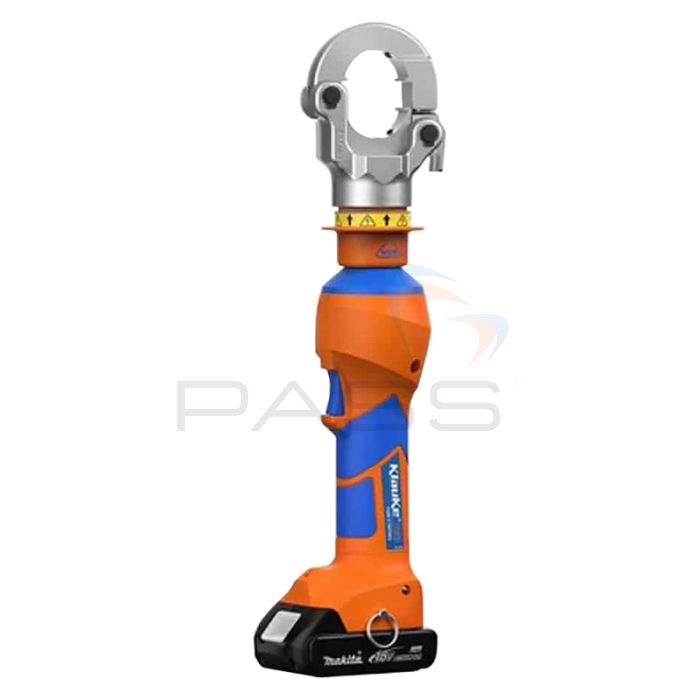

Klauke EKM 60/22 IS VDE Battery Powered Hydraulic Crimping Tool
- 6 - 300 mm²
- Closed head with bolt interlock
- Bosch or Makita battery systems
- Optional L Set with Makita battery
SKU
KL-EKM6022ISB/M
The Klauke EKM 60/22 IS VDE is housed in signal orange for simple differentiation from standard tools. It is insulated and VDE certified up to 1,000 V for increased safety when working on potentially voltage-carrying parts. The crimping range is large and up to 300 mm2, while all of your tool data can be viewed in the built-in display.
The instrument can be purchased with a Bosch or Makita Battery and an optional L Set is also available with a Makita battery.
Key Features
- Choose your battery system: Bosch or Makita
- Closed head with bolt interlock, rotatable, flip-top style
- Quality assurance via visual and audible signals in case of error
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to a balanced centre of gravity
- LED for work area illumination
- Automatic retraction when operation is complete
- Automatic retract stop (ARS) for positioning control in case of multiple crimps
- Always ready to use thanks to the battery charge and service display
- All data can be easily read out via Bluetooth
- Suitable for 22-series interchangeable crimping dies, narrow crimping
What's Included?
- EKM6022ISB - Bosch
- EKM 60/22 IS VDE crimping tool
- RALB1EU Bosch battery 18 V / 2.0 Ah, Li-Ion
- LGLB1EU Bosch quick-charger for 18 V Li-Ion batteries
- KK50NG Hard plastic carrying case
- EKM6022ISM - Makita
- EKM 60/22 IS VDE crimping tool
- RAL1 Makita battery 18 V / 1.5 Ah, Li-Ion
- LGL1 Makita quick-charger for 18 V Li-Ion batteries
- KK50NG Hard plastic carrying case
- EKM6022ISMSETL - Makita & L Set
- EKM 60/22 IS VDE crimping tool
- RAL1 Makita battery 18 V / 1.5 Ah, Li-Ion
- LGL1 Makita quick-charger for 18 V Li-Ion batteries
- KK50NG Hard plastic carrying case
- L Set
Product Range
- Klauke EKM6022ISB EKM 60/22 IS VDE Battery Powered Hydraulic Crimping Tool, Bosch
- Klauke EKM6022ISM EKM 60/22 IS VDE Battery Powered Hydraulic Crimping Tool, Makita
- Klauke EKM6022ISMSETL EKM 60/22 IS VDE Battery Powered Hydraulic Crimping Tool, Makita & L Set
Technical Information
Specification
| Crimping Force | 60 kN |
|---|---|
| Hub | 17.5 mm |
| Crimping Range | 6- 300 mm2 |
| Crimping Cycle | 2 s (for ARS) to 5 s (depending on cross-section) |
| Charging Time | 15 min |
| Weight incl. Battery | 3.1 kg |
| Ambient Temperature | -10 °cup to +40 ° |
