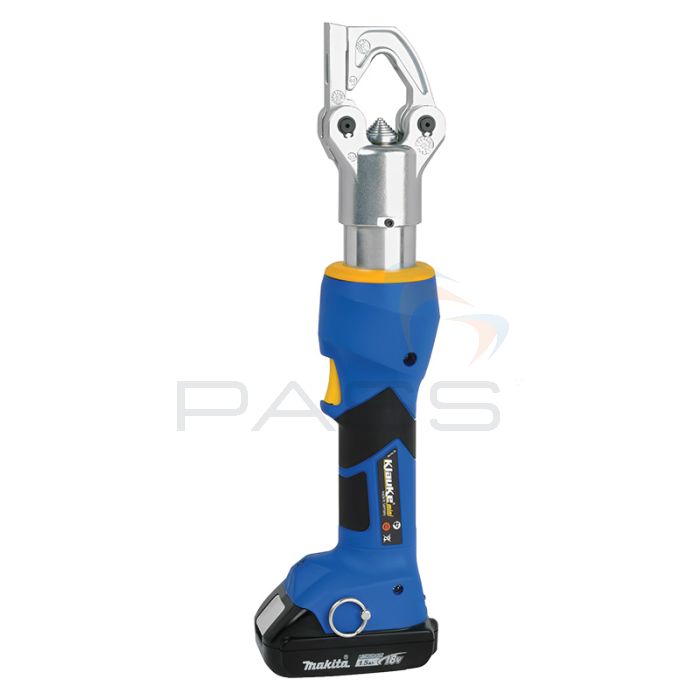

Klauke EKM 60 ID Battery Powered Hydraulic Crimping Tool
- 10 - 240 mm²
- Makita & Bosch battery options
- L-BOXX & tool only options
SKU
KL-EKM60ID/SETS
The Klauke EKM 60 ID has an extra large crimping area due to the innovative 2-stage telescopic cylinder. It delivers indent crimping with no change of crimping dies required. All tool data can be viewed as a result of the display and Klauke Link app.
Key Features
- All data can be easily read via Bluetooth
- With innovative 2-stage telescopic cylinder
- Closed head, flip top style, rotatable
- Quality assurance via visual and audible signals in case of error
- Simple and safe: one-button operating concept for controlling all tool functions
- Effortless working due to a balanced centre of gravity
- LED for work area illumination
- Always ready to use thanks to the battery charge and service display
- From 16 mm² certified
- Very well suited for compacted conductors, especially for fine strand conductors to DIN VDE 60228
What's Included?
- EKM60IDL - Tool Only
- EKM 60 ID Battery powered hydraulic crimping tool
- EKM60IDCFB - Bosch Battery
- EKM 60 ID Battery powered hydraulic crimping tool
- Bosch battery 18 V / 2.0 Ah, Li-Ion
- Bosch quick-charger for 18 V Li-Ion batteries
- Hard plastic carrying case
- EKM60IDCFM - Makita Battery
- EKM 60 ID Battery powered hydraulic crimping tool
- Makita battery 18 V / 1.5 Ah, Li-Ion
- Makita quick-charger for 18 V Li-Ion batteries
- Hard plastic carrying case
- LBOXXEKM60IDCFB - Bosch Battery & L-BOXX
- EKM 60 ID Battery powered hydraulic crimping tool
- Bosch battery 18 V / 2.0 Ah, Li-Ion
- L-BOXX
- LBOXXEKM60IDCFM - Makita Battery & L-BOXX
- EKM 60 ID Battery powered hydraulic crimping tool
- Makita battery 18 V / 1.5 Ah, Li-Ion
- L-BOXX
Product Range
- Klauke EKM60IDL EKM 60 ID Battery Powered Hydraulic Crimping Tool Only
- Klauke EKM60IDCFB EKM 60 ID Battery Powered Hydraulic Crimping Tool & Bosch Battery
- Klauke EKM60IDCFM EKM 60 ID Battery Powered Hydraulic Crimping Tool & Makita Battery
- Klauke LBOXXEKM60IDCFB EKM 60 ID Battery Powered Hydraulic Crimping Tool & Bosch Battery & L-BOXX
- Klauke LBOXXEKM60IDCFM EKM 60 ID Battery Powered Hydraulic Crimping Tool & Makita Battery & L-BOXX
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| BOSCH BATTERY SYSTEM | |
|---|---|
| Crimping Force | 30 - 60 kN |
| Stroke/Opening Width | 40.5 mm |
| Crimping Range Cu | 10 - 240 mm² |
| Crimping Range Al | 50 - 240 mm² |
| Crimping Cycle | 2 s (for ARS) to 7 s (depending on crimping cross-section) |
| Battery Voltage | 18 V |
| Battery Capacity | 2.0 Ah, Li-Ion |
| Battery Charging Time | 15 mins |
| Weight including Battery | 5.6 lbs (2.5 kg). |
| Ambient Temperature | -10 °C to +40 °C |
| MAKITA BATTERY SYSTEM | |
|---|---|
| Crimping Force | 30 - 60 kN |
| Stroke/Opening Width | 40.5 mm |
| Crimping Range Cu | 10 - 240 mm² |
| Crimping Range Al | 50 - 240 mm² |
| Crimping Cycle | 2 s (for ARS) to 7 s (depending on crimping cross-section) |
| Number of Crimps | approx. 100 - 300 |
| Battery Voltage | 18 V |
| Battery Capacity | 1.5 Ah, Li-Ion |
| Battery Charging Time | 15 mins |
| Weight including Battery | 5.6 lbs (2.5 kg). |
| Ambient Temperature | -10 °C to +40 °C |
