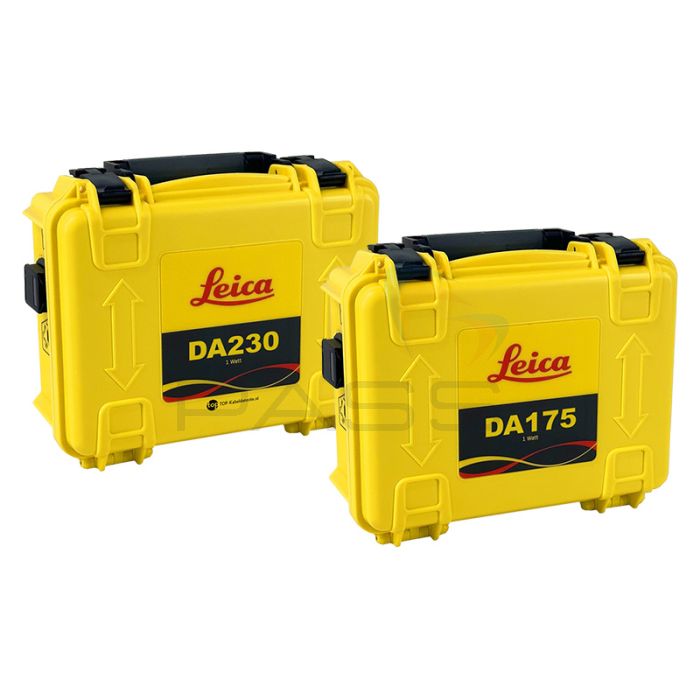

Leica DA Signal Transmitters (DA175 or DA230) - Choice of Model
Description
The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter.
The DA signal transmitters are compact, robust, and easy to use. They have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace, or locate buried cables and pipes.
Key Features
- Improve the detection success
- Trace the route of a utility
- Make a depth or current measurement
DA175 Signal Transmitter
- 1 Watt option
- Compatible with DD120, DD130 and DD175 locators
- Tracer Frequencies:
- 512Hz, 640Hz, 8kHz, 33kHz and combined (8kHz + 33kHz)
- 4x LR20 Alkaline Battery
- IP67 rating
- 1 Year warranty
DA230 Signal Transmitter
- 1 Watt option
- Compatible with; DD130 Locator DD230 SMART Locators
- Tracer Frequencies:
- 512Hz, 640Hz, 8kHz, 33kHz, 131kHz and combined (33 kHz +131 kHz)
- Rechargeable Li-Ion battery as standard
- IP67 rating
- 3 Year warranty
What's Included?
DA175 Signal Transmitter
- Leica DA175 1 Watt Signal Transmitter
- One Year Warranty
- 4 x D-cell Alkaline Batteries
DA230 Signal Transmitter
- Leica DA230 1 Watt Signal Transmitter
- Three Year Warranty
- Li-Ion Battery Pack
- A100 charger
Product Range
- Leica 949370 DA175 Signal Transmitter
- Leica 850274 DA230 Signal Transmitter
Downloads
Datasheets
Manuals & Guides
Tech Specs
| DA175 | DA230 | |
|---|---|---|
| Induction | Up to 1 Watt max | |
| Connection Mode | Model dependent, up to 1 Watt or 3 Watt, when connected to a buried utility with an impedance of 300 Ohms | |
| Operating Transmission Frequencies | 131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz |
131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| Display Panel | LED Indicators: Battery low indicator Connection mode Frequency indicator Power Output indicator |
|
| Keypad | 4 membrane push buttons | |
| Audio | 85 dBA @ 30 cm Induction mode: Pulsed output with a differing rate for each frequency Connection mode: Low - No output: pulsed output, differing rate for each frequency Good Connection output: constant tone, pitch dependent on power output |
|
| Battery Type | 7.4 V Li-Ion pack | |
| Typical Operating Time 3 Watt, 1 Watt | 15 hours at power level 2 connection mode | |
| Dimensions | 250 x 206 x 113 mm/9.84 x 8.11 x 4.45 inches | |
| Weight (incl. standard accessories and batteries) | 2.38 kg with Li-Ion | |
| Temperature | Operating -20°C to +50°C, -4°F to +122°F Storage -40°C to +70°C, -40°F to +158°F |
|
| Protection against Water, Dust, and Sand | Conforms to IP67 lid open or closed | |
| Humidity | 95% RH non-condensing The effects of condensation are to be effectively counteracted by periodically drying out the product |
|
| Approvals | CE, FCC | |
