Leica LINO L2Gs Alkaline Cross Line Green Laser
Free Tyre Inflator (Spend £1000+)
- Accuracy: ± 0.2 mm/m
- Extra long laser lines
- Automatic self-levelling
SKU
L2GALK
MPN
912932
The Leica Lino L2Gs green laser technology delivers lines that are up to four times more visible than red lasers. The L2G also has extra-long 180° horizontal and vertical lines, with the vertical beam extending above and behind the unit. It includes automatic self-levelling, a lock function for manual angle setups, and support for magnetic TWIST 250 smart adapters.
Leica LINO P5 L2 L2G L2P5 L2P5G Red and Green Point and Line Lasers
Key Features
- Range up to 35m* >80m with detector
- 2 green laser lines – horizontal & vertical - exact 90° angle
- Beam direction/fan angle – vertical >180°, horizontal >180°
- Accuracy: ± 0.2 mm/m
- Robust spray proof / dust protected IP54
- Operating time: < 7h
- Battery type: Alkaline
- Impact resistant rubber housing
- Twist 250 magnetic bracket
- Triple power option
- Extra long laser lines
- Automatic self-levelling
- Multi-function

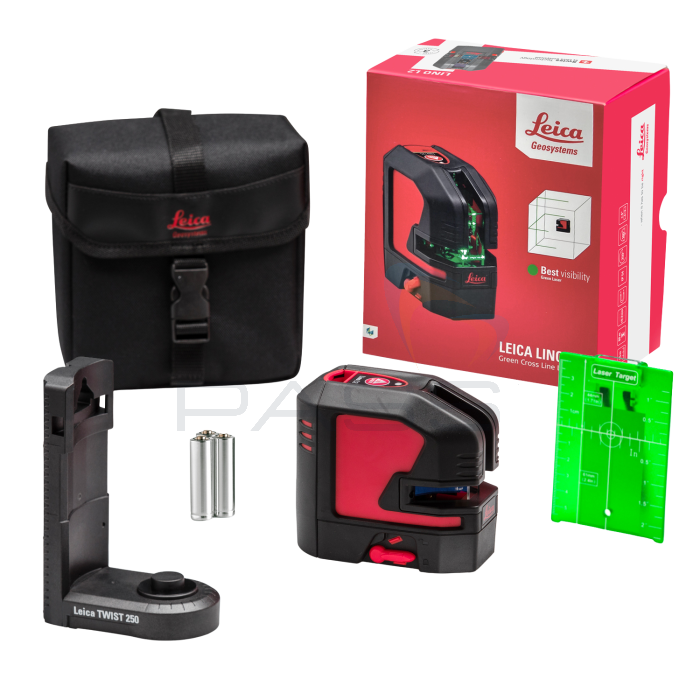

What's Included?
- Lino L2G Alkaline Line Laser
- Leica TWIST 250 Adapter
- Alkaline battery tray & batteries
- Target plate
- Soft carry case
- Safety instructions & Quick Start with QR code linking to online manual
- Leica 3 year warranty
Offers
Free Tyre Inflator (Spend £1000+)
Worth £29.99. Automatically adds to your basket when the total exceeds £1000+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Laser | 2 lines (green) |
|---|---|
| Beam Direction / Fan Angle | Vertical / >170°, Horizontal / >180° |
| Range* | 35 m (115 ft) |
| Range* with Receiver | 80 m (262 ft) |
| Levelling Accuracy | ±0.2 mm/m or ±1.0 mm @ 5m or ±2.0 mm @ 10m ±0.002 in/ft or ±0.04 in @ 16ft or ±0.08 in @ 33ft |
| Horizontal/Vertical Line Accuracy | ±0.3 mm/m (±0.004 in/ft) |
| Self-levelling Range | ± 4 ° |
| Self-levelling Time | < 3 s |
| Out-of-level Warning | Yes → laser lines blink every 5 s |
| Levelling System | Automatic pendulum |
| Pendulum Lock | Yes |
| Laser Type | 525 ± 5 nm, Class 2 acc. IEC 60825-1 |
| Protection Class | IP 54 (IEC 60529) dust and splash water |
| Battery Type | 3 x AA Alkaline |
| Operating Time | 4 h (2 beam) – 7h (1 beam) continuous |
| Low Power Alert | Status LED red |
| Automatic Shut-off | Available |
| Dimensions (L x W x H) | 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in) |
| Weight with Alkaline Battery | 500 g |
| Operating Temperature | -10…+50 °C (+14…+122 °F) |
| Storage Temperature | -25…+70 °C (-13…+158 °F) |
| Temperature Alert | Status LED blinks red (5Hz) |
| Laser Line Width at 5 m Distance | < 2 mm (<0.08 in) |
| Beam Divergence | < 1.5 mrad |
| Tripod Thread | 1/4" (+ 5/8" with adapter) |
| Paste | Paste |
| Pulse Power for Receiver | Yes, auto |
| Size Info Box / Case | 16.8 cm x 19 cm x 9.5 cm, 1.2 kg 6.6 in x 7.5 in 3.7 in, 2.65 lbs |
| * Depending on lighting conditions | |
Document Downloads
Leica LINO L2Gs Alkaline Cross Line Green Laser Datasheet
Leica LINO L2Gs Alkaline Cross Line Green Laser Quick Start Guide
Leica LINO L2Gs Alkaline Cross Line Green Laser User Manual
Additional Information
SKU
L2GALK
Manufacturer Part Code
912932
