Leica Lino L2P5 Lithium Cross Line Red Laser in Hard Case
The Leica Lino L2P5 is a a self-levelling cross-line and point laser. This Lino is ideal for alignment tasks such as tiling, drywalling, partitioning and electrical installations as well as plumb point projection, setting out or transferring measured points.
Leica optics enable the Lino L2P5 to project very bright and clearly visible laser lines and dots. Depending on the lighting conditions, the working range is up to 25 meters. This range can be easily extended up to 80 meters by using the laser receiver.
This two-in-one laser level has magnetic adapters which allow you to position the instrument quickly and with absolute precision. You can easily attach it within U-profiles, to edges, or to any magnetic surfaces.
The Leica Lino L2P5 is a self-levelling cross and line laser. This means it automatically adjusts its positioning up to ± 4° when slightly out of level without any manual alignment.
Your Leica Lino L2P5 laser has a triple power concept. It runs with Li-Ion batteries for up to 44 hours on one charge. It can also be powered by alkaline batteries or its charger.
The Leica Lino L2P5 is designed and built to support today’s job site conditions. It is dust and spray water protected to IP 54 standards.
Key Features
- Self-levelling
- Cross-line and point laser
- Outstanding Laser Visibility
- Magnetic positioning
- Triple Power Concept
- Rugged Design

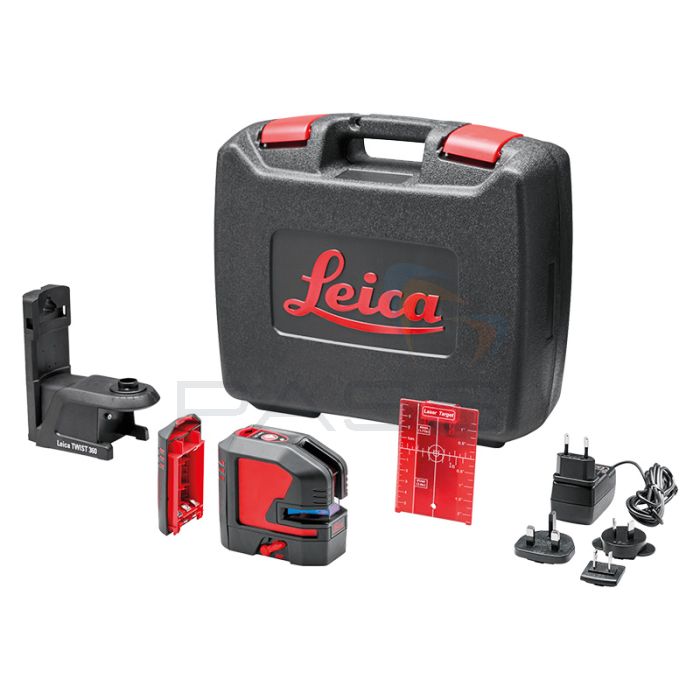

What's Included?
- Leica Lino L2P5
- Quick start guide
- Rugged Case
- Li-Ion battery pack including charger and plugs
- Alkaline battery tray
- Laser target
- TWIST 360 magnetic multi-functional adapter
- Safety instructions, Calibration certificate, Warranty card
Datasheets
Manuals & Guides
Brochures & Catalogues
| Range* | 25 m / 85 ft |
|---|---|
| Range with Laser Receiver* | 80 m / 265 ft |
| Levelling Accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33ft |
| Self-levelling Range | ± 4° |
| Number of Laser Dots | 4 |
| Number of Laser Lines | 2 |
| Beam Direction | Vertical, horizontal, up, down, right, left |
| Dot Accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33 ft |
| Horizontal Line Accuracy | ± 0.3 mm/m / ± 0.0118 in @ 33ft |
| Vertical Line Accuracy | ± 0.3 mm/m / ± 0.0118 in @ 33ft |
| Laser Type | 635 nm/class 2 |
| Battery Type | Li-Ion rechargeable (or AA 3 x 1.5V) |
| Operating Time** | up to 44 h (Li-Ion) |
| Protection Class | IP54 |
| Dimensions | 110 x 60 x 100 mm / 4.33 x 2.36 x 3.94 in |
| Weight with Batteries | 530 g / 1.17 lbs |
| Tripod Thread | ¼" |
| *Depending on lighting conditions **Depending on the laser mode |
|
| SKU | L2P5 |
|---|---|
| Manufacturer Part Code | 864431 |
