Leica Lino L6G-1 Lithium Precision Alignment Green Laser with Hard Case
The Leica Lino L6G has a 360° green laser line projection for multi-directional alignment - perfect for large and bright environments. The laser's vertical lines are easily adjusted once the plumb point (cross-section of two vertical lines), which is located outside the device, is set.
Three, ultra-strong 360° thin, crisp, and visible green laser lines are ideal for bright environments and large work environments as green laser lines are up to four times more visible to the human eye if compared to red lasers.
The vertical laser lines projected to walls and ceilings are easily adjusted once the plumb point is set. The integrated base of this line laser allows you to position the cross-section (plumb point) of the two vertical laser lines where it is required and you then can adjust the position of these lines by ± 10° while keeping the position of the plumb point.
The triple power concept assures an uninterrupted workflow of any layout tasks. Rechargeable Li-Ion batteries last for up to 11 hours of continuous operation. To further increase the operating time, the laser line strength is adjustable (100/75/50 percent) which has the added benefit of thinner laser lines. Alternatively, Alkaline batteries or a charger can be used.
A shock-absorbent design, plus spray water and dust protection (IP54) make this green multi-line laser fit for any construction site.
The Lino L6G is a self-levelling multi-line laser. It automatically adjusts its positioning up to ± 4° when it is slightly out of level without any manual alignment.
Key Features
- Horizontal and two vertical 360° green laser lines
- Best visibility due to green Ultra-Power laser diodes
- Self-levelling over a wide range
- Fixed plumb point due to integrated base
- Adjustable strength of laser lines
- Operating range of up to 35 m
- Li-Ion power for up to 11 hours of operation
- Uninterrupted working with Triple-Power concept
- Smart magnetic adapters for versatile usage

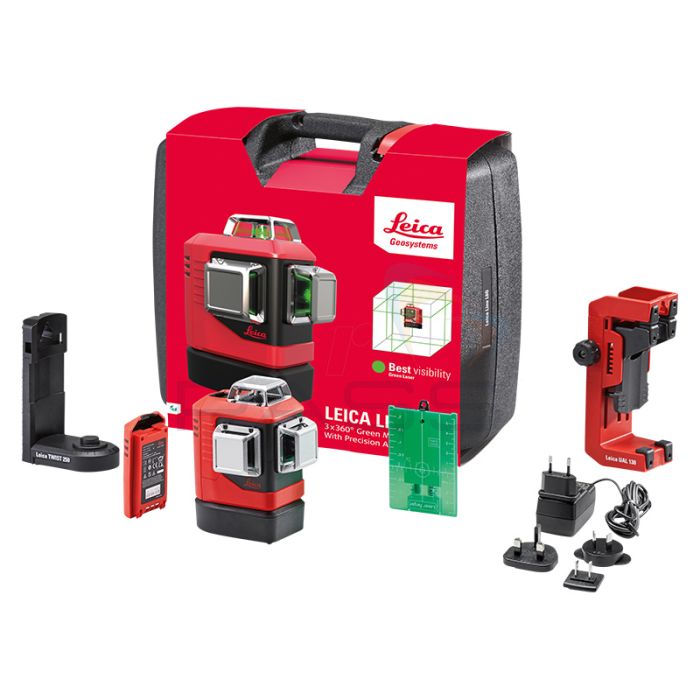

What's Included?
- Leica Lino L6G
- Quick start guide
- Hard Case
- Li-Ion battery pack
- Charger for Li-Ion battery pack
- Alkaline battery tray
- Target plate
- UAL 130 wall mount adapter
- TWIST 250 magnetic adapter
- Calibration Certificate Blue
Datasheets
Manuals & Guides
| Beam Horizontal | 360° |
|---|---|
| Beam Vertical | 2 x 360° |
| Intersection Points | Up, down, right, left, front, back (90° / 180°) |
| Range / Diameter* | 25 m / 50 m (82 ft / 164 ft) |
| Range / Diameter* with Leica RGR 200 Receiver | 70 m / 140 m (230 ft / 460 ft) |
| Levelling Accuracy | ± 0.2 mm/m (± 0.002 in/ft) |
| Horizontal and Vertical Line Accuracy | ± 0.3 mm/m (± 0.004 in/ft) |
| Intersection Point Accuracy | ± 0.2 mm/m (± 0.002 in/ft) |
| Self-levelling Range | ± 4° |
| Self-levelling Time | < 3 sec |
| Fine Adjustment | ± 10° around the vertical intersection point |
| Out-of-level Warning | Yes - blink lines every 5 s |
| Levelling | Pendulum (lockable) |
| Laser | 635 nm / class 2 (acc. to IEC 60825-1) |
| Protection Class | IP54 (dust and splash water) |
| Battery Type | Lino Li-Ion battery pack 5200 mAh / 18.7 Wh or 3 x AA Alkaline |
| Laser Line Intensity (Selectable) | 100 %, 75 %, 50 % |
| Operating Time with Li-Ion | up to 36 h (3 beam, 50 % power) |
| Operating Time with Alkaline | up to 25 h (3 beam, 50 % power) |
| Dimensions | 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in) |
| Weight | 781 g (1.71 lbs) |
| Operation Temperature | -10 to +50° C (14 to 122° F) |
| Storage Temperature | -25 to +70° C (-13 to +158° F) |
| Laser Line width @ 5 m (16.4 ft) Distance | < 2 mm (< 0.08 in) |
| Tripod Thread | ¼ in (⅝ in with adapter) |
| Pulse Power for Receiver | Yes |
| *Depending on lighting conditions | |
| SKU | L6G |
|---|---|
| Manufacturer Part Code | 912971 |
