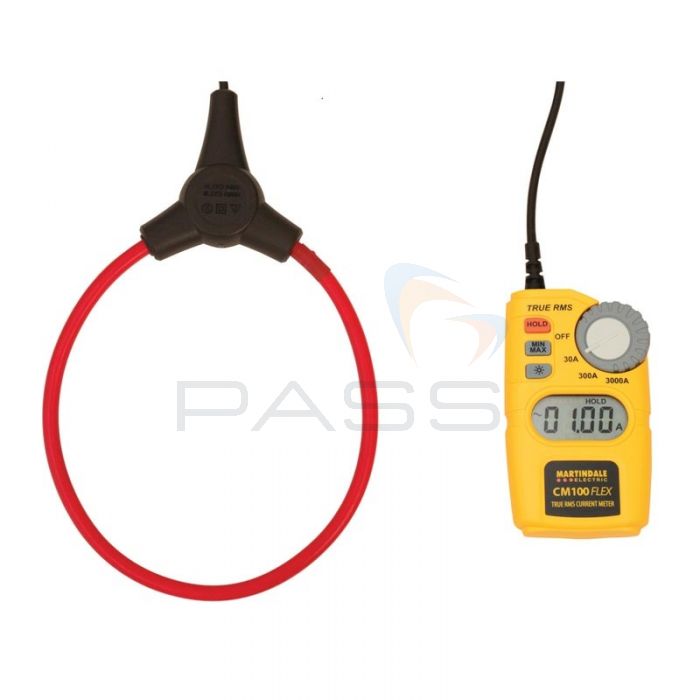

Martindale CM100 AC TRMS High Current Flex Meter
The CM100 AC with TRMS features a flex meter with an 8.5mm (diameter) current sensor, designed to reach where standard clamp meters would usually struggle, with the ability to fit around difficult sizes/shape conductors (up to 160mm in diameter)
The display unit is connected to the flex meter sensor with a 1.8m lead allowing for more flexibility and freedom when in use and is backlit for easy viewing in dark conditions, the CM100 from Martindale is ideal for difficult and restrictive environments.
With TRMS you can ensure a more accurate reading of AC current measurements, and with 3 ranges up to 3000A AC and a resolution of 10mA in the 30A range, this meter provides reliable results you can trust every time. The CATIV 600V safety rating makes the flex meter ideal for utility and industrial current measurement applications.
Key Features
- Flexible 8.5mm diameter sensor
- Conductors up to 160mm diameter
- 3 ranges from 30.00A to 3000A AC
- 10mA resolution
- True RMS
- Configurable auto power off
- Low battery indicator
- Backlit display
- CATIV 600V safety rating
- Conforms to: BS EN 61010-1, BS EN 61010-2-032, CAT IV 600V, CAT III 1000 V, Class II, double insulation
What’s Included?
- Batteries
- Manual
- CM100 Clamp Meter
Martindale CM100 AC TRMS High Current Flex Meter Technical Specifications
| Range | Resolution | Accuracy |
| 30A | 0.01A | 3.0% + 5 (Based on conductor being centrally placed, no external magnetic field and within operating temperature range) |
| 300A | 0.1A | |
| 3000A | 1A | |
| General | ||
| Dimensions | Meter: 120mm (L) x 70mm (W) x 26mm (D) Cable length (probe to meter): 1.8m Flexible sensor length: 458mm Flexible sensor diameter: 8.5mm nominal Maximum conductor diameter: 160mm Weight (including batteries): 286g |
|
| Temperature & Humidity | (Operating): 0°C to 50°C <80% R.H., non-condensing | |
| SKU | MARCM100 |
|---|---|
| Manufacturer Part Code | MARCM100 |
