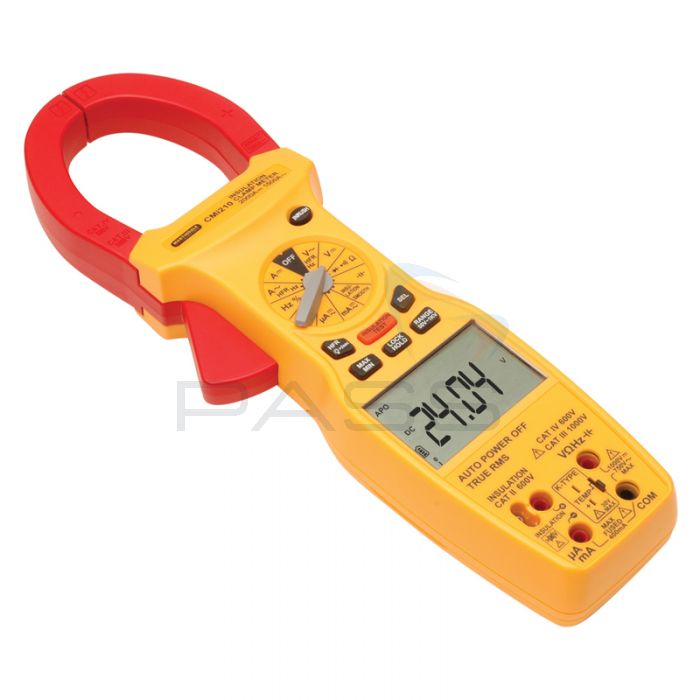

Uniquely designed for measurements of current and insulation, the CMi210 is a multifunctional clamp meter ideal for use in both domestic and industrial electrical installations.
The unique insulation testing function allows this meter to do what other clamps can't: test insulation levels up to 6GΩ with five different selectable test voltages from 50V to 1000V. It also has built-in, large-size 57mm jaws, making it suitable for clamping directly around larger conductors in order to test AC current to 1500A and DC current to 2000A.
A built-in multimeter is also included and the CMI210 can measure DC voltage to 1000V, AC voltage to 750V, resistance to 60MΩ, capacitance to 6mF, frequency to 10MHz, duty cycle from 5 to 95%, temperature (using a type K thermocouple) and continuity/diode.
Martindale CMi210 Insulation Clamp Meter Key Features
- Tests DC voltage to 1000V
- Test AC voltage to 750V
- AC current measurements to 1500A
- DC current measurements to 2000A
- Resistance testing with range up to 60MΩ
- Capacitance measurements to 6mF
- Frequency testing to 10MHz
- Duty cycle calculations
- Temperature measurements using type K thermocouple
- Continuity and diode testing
- Insulation testing with selectable testing voltage of 50V, 100V, 250V, 500V and 1000V
What's Included?
- Martindale CMi210 Insulation Clamp Meter
- Carrying Case
- TL45 Test Leads
- Probe Set
- Type K Thermocouple
- 5 x 1.5V AA Batteries (Installed)
- Instructions
Martindale CMi210 Technical Specifications
(please see the attached datasheet/user manual for full tech specs)
SKU | MARCMI210 |
---|---|
Manufacturer Part Code | MARCMi210 |
