Martindale TEK100 Non-Contact Voltage Indicator

SKU
MARTEK100
Rating:
0%
(0)
Reward Points
:
39
£46.80 £39.00
Lead Time: 1-6 Days
Advice & Support
Price Match Request

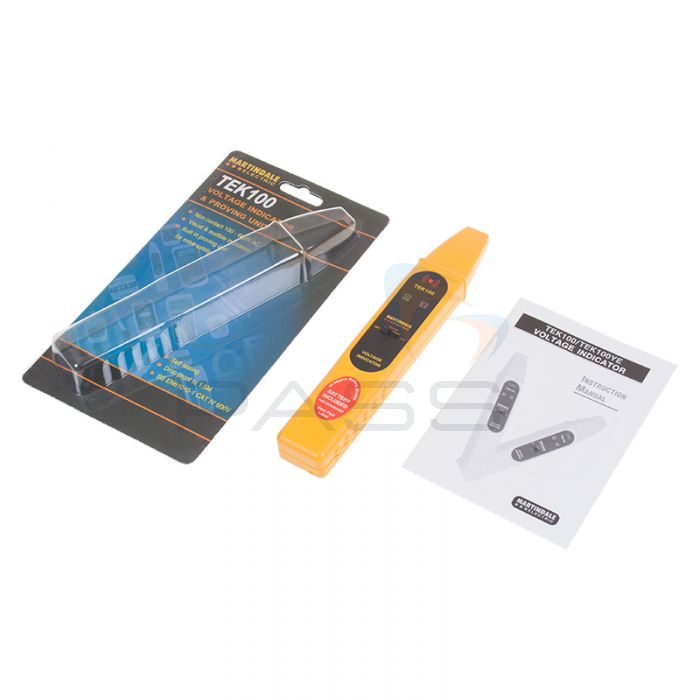

Martindale TEK 100 Voltage Indicator - Kit

Simply hold the TEK100 near a voltage source from 100-600V AC and it'll let you know if voltage is present!

If voltage is detected, the TEK100 will use a combination of an audible tone and a red visual indicator to alert the user. A built-in self testing function allows the meter to remain accurate throughout its lifetime and will check the tip of the tester at 50Hz plus the condition of the battery and LED indicator.

The self-testing function eliminates the need for a separate proving unit.

Martindale TEK100 Non-Contact Voltage Indicator Key Features

  • Pocket-sized unit
  • Voltage detection without making contact
  • 100-600V AC range
  • LED light indicators
  • Audible indicator
  • Self-test function means there's no need to use proving units

Technical Specifications

Voltage Range 100-600V AC
Frequency Range 50Hz to 50kHz
Sensitivity

3mm for 100V, 50Hz

23mm for 240V, 50Hz

Visual Indicator Red LED
Audible Indicator 2kHz Tone
Self-Test Integrated Unit
Operating Temperature 0 to 50°C
Overvoltage CAT III 1000V, CAT IV 600V
Supply 9V Alkaline Battery, MN1604/PP3 or Equivalent
Housing Flame Retardant ABS
Dimensions 202 x 32 x 22mm
Weight Approx. 140g (excl. battery)
