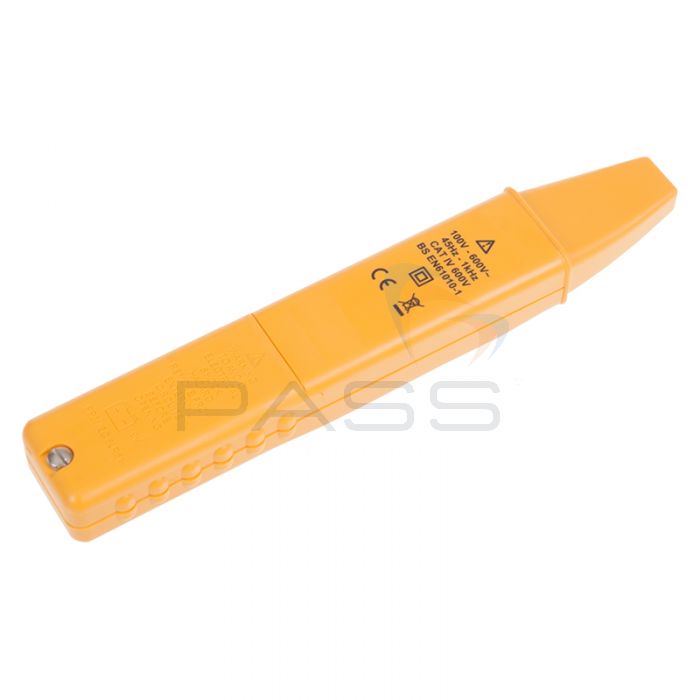

Martindale TEK200 Non-Contact Voltage and Magnetic Indicator
By using the Martindale TEK200 Non-Contact Voltage and Magnetic Indicator you will be able to detect the presence of any level of polarity and voltage of any size magnetic field within seconds. It is able to do this with any magnetic field that has been produced or given off by a relay, transformer, indicator or solenoid.
A self-testing option has been built into this non-contact voltage indicator which, when selected for use, will activate the tip of the tester which has a sensor programmed to 50Hz. Whilst doing this, it will also perform a test on the LED and battery.
As well as performing these functions, this magnetic indicator can incorporate all of the abilities that are found in a TEK100 voltage indicator. By doing this, a slim and versatile instrument with ergonomic and flame retardant ABS housing is produced to provide accurate results.
The Martindale TEK200 Non-Contact Voltage and Magnetic Indicator is powered by a 9V alkaline battery that is supplied with the kit.
Martindale TEK200 Non-Contact Voltage and Magnetic Indicator Key Features
- Non-contact testing device
- Voltage range of 100 to 600V AC
- Visual and audible indicators
- Specific magnetic field LED indicators
- Portable and lightweight
Technical Specifications
| Voltage Range | 100 to 600V AC |
| Frequency Range | 50Hz to 50kHz |
| Sensitivity |
3mm for 100v, 50Hz 23mm for 240V, 50Hz |
| Indication |
Visual: Red LED Audible: 2kHz Tone |
| Magnetic Field Range | ± 10mT, 0-50kHz |
| Magnetic Pole |
North Pole: Red LED South Pole: Green LED |
| Self-Test | Integrated Proving Unit |
| Operating Temperature | 0 to 50°C |
| Overvoltage | CAT III 1000V, CAT IV 600V |
| Supply | 9V battery alkaline battery, MN1604/PP3 or equivalent |
| Housing | Flame retardant ABS |
| Dimensions | 202 x 32 x 22mm |
| Weight | 150g approx |
| SKU | MARTEK200 |
|---|---|
| Manufacturer Part Code | MARTEK200 |
