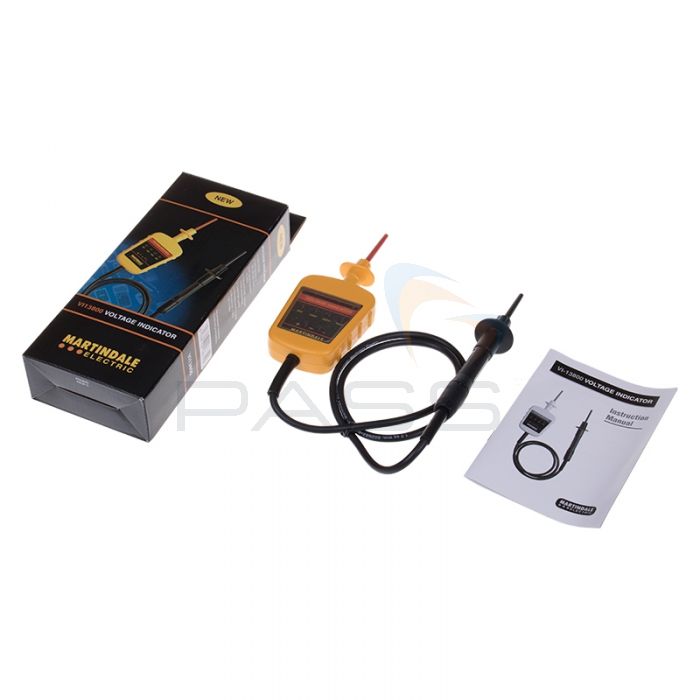

Martindale VI13800 Voltage Indicator

Martindale VI13800 Voltage Indicator
sku: MARVI13800
MPN: MARVI13800

Free UK Delivery On Orders Over £40
  • GS38 compliant
  • High wattage resistor improves safety
  • 50, 100, 200 and 400V AC/DC indicators

Was: £57.00
You Save: £8.55
£48.45 Incl. VAT £58.14
Under 10 In Stock
Members earn 96 points

Do you have a question or found it cheaper? Contact us

Description

Martindale VI13800 Voltage Indicator Details

An updated version of Martindale's VI-13700/2, the VI13800 is a two-pole voltage indicator with improved safety functionality.

The main difference between this and Martindale's previous indicator is that the internal fuse has been replaced by a high wattage resistor. This protection is superior to fuse protection as it will limit the current in the event of damage to the cable. This is in line with current GS38 regulations and future updates.

The indicator can be used across both AC/DC voltage from 50-600V AC/DC, showing voltage steps as LED indicators at 50, 100, 200 and 400V DC/AC RMS. The VI13800 can also give indication of polarity, automatically detects AC/DC voltage and select the appropriate range automatically as well.

Martindale VI13800 Voltage Indicator Key Features

  • Built-in high wattage resistor improves safety and limits current in the event of the indicator being damaged
  • GS38 compliance
  • LED light indication of voltage level
  • Nominal voltage range from 50-600V AC/DC
  • Polarity indication
  • Fast response time of <0.1s
  • IP54 ingress protection against dust and water spray
  • CAT IV 600V and CAT III 1000V compliant
Accessories (1)

Martindale TC69 Carry Case for PD690 and VI13700G or a Drummond Lamp
Was: £26.00
You Save: £7.05
£18.95 Incl. VAT £22.74
Technical Specs

Part Code: MARVI13800

Martindale VI13800 Technical Specifications

Electrical
Nominal Voltage Range 50-600V AC/DC RMS
Nominal Voltage Threshold Indications 50, 100, 200, 400V DC/AC RMS
Voltage Threshold Tolerance Conforms to BS EN 61342-3:2010
Polarity and Voltage Indication ≥12V DC/AC RMS
AC/DC Voltage Detection Automatic
Range Detection Automatic
Response Time <0.1s
Frequency Range DC, 1-400Hz
Test Current <3.5mA at 600V DC/AC RMS
Duty Ratio 30s ON (operated) / 240s OFF (recovery)
Environmental
Temperature and Humidity (Operating and Storage) -10 to 55°C ≤ 85% RH
Altitude Up to 2000m
General
Power From circuit under test
Dimensions 205 (L) x 67 (W) x 27 (D)mm
Weight 130g
Includes Instructions
Safety
Conformity To BS EN 61243-3:2010 CAT IV 600V, CAT III 1000V
Class Class II, double insulation
Pollution Degree 2
IP Rating IP54
EMC BS EN 61326-1
