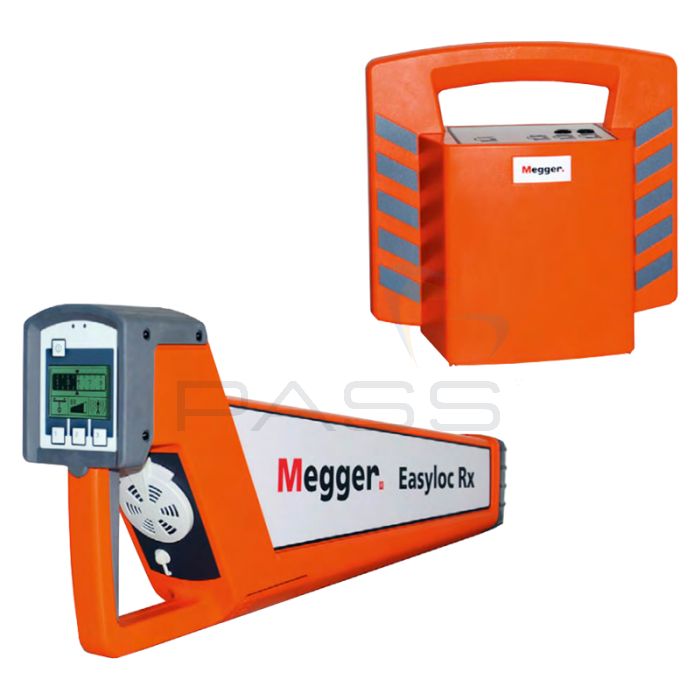

Megger Easyloc RxTx Utility Location System - Choice of Model
- Utility location system
- Trace cable runs and pipe networks
- Fast and simple to operate
The Megger Easyloc RxTx utility location system has been designed to detect and trace cable runs and pipe networks. The Easyloc RxTx is fast and simple to operate, with features designed to help you avoid potentially dangerous power cables, and other services, as efficiently as possible. This helps you stay safe and also helps you avoid damaging the cables, minimising costly accidents.
The Easyloc receiver shows the signal level received and marks the maximum with a marker. This means operators work with both an audio signal and visual confirmation at all times. Depth measurement is possible at the push of a button, even when using the power mode, but only with Easyloc Standard.
Easyloc RxTx is suitable for water, rail, gas, power, highways, and telecommunication utilities, as well as contractors, groundworks, buildings, local authorities, civil engineering, street lighting and fencing, and gardening and landscaping companies.
Key Features
- Make optimum preparations for your building work, quickly and reliably
- Semi-automatic sensitivity control
- Depth measurement at the push of a button, even without a transmitter
- Compatible with other location systems
- High-performance transmitter
- Big display with an easy menu structure and automatic backlight
- Avoid cable damage and minimise costly accidents and inconvenient delays
- Quick and simple to operate
- Transmitter with mains voltage-proof output - no separating filter necessary
Product Range
- Megger 890003780 Easyloc Rx Standard, Receiver Set 50Hz/R/33 kHz with Depth Measurement, without Carry Bag, English version
- Megger 890005586 Easyloc TX Transmitter, 33kHz Transmitter Set, with Grounding Set, without Carry Bag, English version
- Megger 890005617-S Easyloc System RXT, English version
- Megger 890010236 Easyloc RX Basic, Receiver Set 50Hz/R/33kHz, without Depth Measurement or Carry Bag, English version
- Megger 890010258 Easyloc RX Cam for CCTV Inspection Systems, Receiving frequencies: 512Hz, 640Hz, 33kHz, 50/60Hz. English version
- Megger 890016177 Easyloc RX Plus, English version
- Megger 890016200 Easyloc Plus TX Transmitter, 33kHz/8,4kHz Transmitter Set, with Grounding Set; without Carry Bag, English version
- Megger 890016224-S Easyloc System Plus, English version
Call 01642 931 329 or complete the form:
| TECHNICAL DATA | |
|---|---|
| Receiver RX (all versions) | |
| Operating time | >40 hours |
| Power supply | 10 x IEC R6 1.5 V (AA) |
| Working / storage temperature | - 20° C ... + 55° C / - 40° C ... + 70° C |
| Weight | 2.5 kg |
| Dimensions (W x H x D | 10 x 67 x 26 cm |
| Protection class | IP 56, IP 67 (up to the bottom of the battery case) |
| Transmitter TX (all versions) | |
| Operating time | >40 hours |
| Power supply | 6 x IEC R20 1.5 V (D) |
| Working / storage temperature | - 20° C ... + 55° C / - 40° C ... + 70° C |
| Weight | 2.6 kg |
| Dimensions (W x H x D | 26 x 25,5 x 14 cm |
| Protection class | IP 54 |
| EASYLOC SYSTEMS OVERVIEW | ||||
|---|---|---|---|---|
| Easyloc Basic | Easyloc Standard | Easyloc Plus | Easyloc Cam | |
| Passive Frequencies | Radio: 15 kHz ... 23 kHz, Power: 50 Hz ... 250 Hz Easyloc Tx / Sonde: 33 kHz |
Power: 50 Hz / 60 Hz | ||
| Active Frequencies | 33 kHz | 100 Hz /120 Hz 8.44 kHz 33 kHz |
512 Hz 640 Hz 33 kHz (only sondes) |
|
| Depth Measurement | ✘ | Cables: 0.3 m ... 5 m Sondes: 0.3 m ... 7 m |
Sondes: 0.3 m ... 7 m | |
| Output Power | 0.1 W 0.5 W Continuous and pulsed signal (switchable) |
0.1 W 0.5 W 2 W Continuous and pulsed signal (switchable) |
✘ | |
| Application | Cable location | Cable and pipe location | Sonde and camera head location | |
