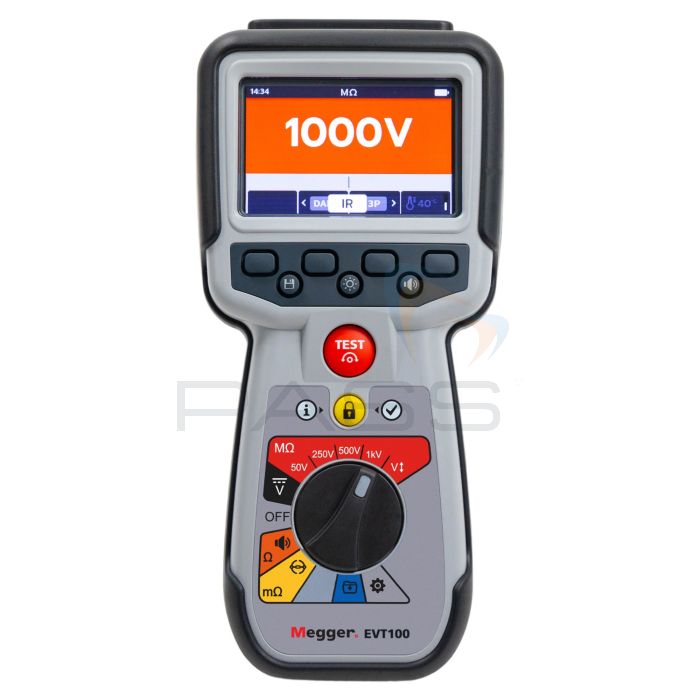

Megger EVT100 Electric Vehicle Tester

The Megger EVT100 consolidates all essential EV testing functions into one robust unit. Whether performing insulation resistance tests up to 1 kV, low-resistance bond verification, continuity checks, diode testing, or DC voltage, and polarity measurements.

The EVT100 supports two-, three-, and four-wire low-resistance testing, which is critical for validating the integrity of metal bonding in EVs. For insulation testing, it provides automatic temperature compensation and a guard terminal to minimise the influence of surface leakage.

The EVT100 is drop-resistant and includes intelligent safety characteristics that prevent improper operation. The internal memory stores up to 256 results, which you can export via a USB stick.

Key Features

• All-in-one solution for EV testing
• Straightforward user interface
• Extensive safety features
• Rugged construction
• Aids standards compliance
• Full colour graphic display
• DC voltage and polarity test
• Insulation resistance and surface leakage current detection
• 4 wire low resistance bonding test
• 2 wire continuity and diode test
• Data storage and management
• CAT III 600 V up to 3000 m
• Environmental protection to IP54
• Rechargeable batteries and charger
• Full set of detachable test leads with interchangeable clips and probes for different applications, including a remote testing probe
• Guided lead set up diagrams
• Rechargeable batteries with mains charger kit
• DC voltage with polarity test
• Unique resistance testing capabilities with two, three and four terminals, including a guard connection, to eliminate any surface leakage current
• Data storage for up to 256 tests, which can be downloaded to a USB
• Rotary dial control, soft keys and a full graphic display, simple and easy to use
• Meets UN ECE R100 Regulation for Electric Vehicle testing
• Environmental protection to IP54, protecting against moisture and dust ingress, including the battery and fuse compartment
• Rubber over moulding housing combining a tough shock absorbing outer protection with excellent grip, on a strong modified ABS housing, providing a robust case
• Multipurpose industrial carry case

What's Included?

• EVT100 Electric Vehicle Tester
• Hook strap and magnetic strap
• Multipurpose industrial carrycase
• SP5 remote probe
• Temperature probe, T type CAT III 600 V
• IR lead set (comprising of):
  • 3 x Grabber Clips (Red, Black and Blue) CAT III 1000 V, CAT IV 600 V
  • 3 x 4 mm Test leads, 2 m, 1 end Right Angle, 1 end straight (red, black and blue) CAT III 1000 V, CAT IV 600 V
  • 3 x Test probes (red, black and blue), long reach (100 mm), CAT III 1000 V, CAT IV 600 V
• Kelvin clip lead set CAT III 600 V (comprising of):
  • 2 x Kelvin Clip leads, 2 meters, 4 mm Right Angled Connectors (4), Single (2-core) cable
• Kelvin probe lead set CAT III 600 V (comprising of):
  • 2 x Kelvin Probe leads, 2 meters, 4 mm Right Angled Connectors (4), Single (2-core) cable.
• Replaceable Kelvin Probe Pins (Pack of 4)
• EVT100 certificate of test (EN/FR/ES/DE)
• EVT100 certificate of calibration
• 6 x AA rechargeable batteries NiMH (fitted)
• Battery charger
• Quick start guide
