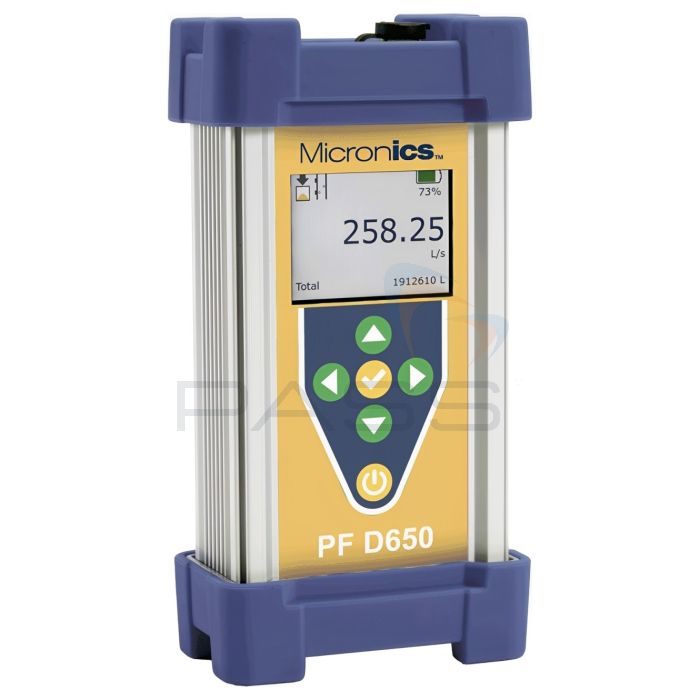

Micronics Portaflow D650 Doppler Flow Meter
- To suit pipes 12.7mm-4600mm
- Non-invasive sensing
- Portable and Easy to use
- Single clamp-on transducer
SKU
1000-1023
MPN
1000-1023
The Micronics Portaflow D650 eliminates the need to cut into pipes or interrupt ongoing processes. It operates on the principle of the Doppler effect. It transmits high-frequency sound waves through a closed pipe into the flowing liquid. The signals interact with particles or gas bubbles suspended in the fluid, which reflect the sound waves to the sensor. If the reflectors are in motion, the returned signal encounters a frequency shift (the Doppler effect).
Key Features
- Doppler flow meters for “dirty” liquid monitoring
- To suit pipes 12.7mm-4600mm
- 12 million point logger and software
- Non-invasive sensing
- Portable and Easy to use
- Single clamp-on transducer
- Fast, simple operation
- Rugged, waterproof
- On board data logger
- Free analysis software
- Recommended for
- Sewage
- Treated Wastewater
- Aerated Water
- Sludge and Slurries
- Chemicals and Solvents
- Viscous Liquids
- Abrasives
- Food Products
- Pulp Stock
- Acids and Caustics
What's Included?
- PF D650 Electronics
- Transducer cable
- USB-C Wall Charger
- SE14-A2 Transducer Mounting Bracket
- Coupling Compound, 3 oz Super Lube
- SE14-A2 Transducer w/ Cable
- Two Hose Clamps
- International Plug Adapters for USB-C Wall Charger
Offers
Free Tyre Inflator (Spend £500+)
Worth £29.99. Automatically adds to your basket when the total exceeds £500+ (ex VAT). Limited Stock. More details here.
Technical Information
Specification
| Operating Parameters | Liquids containing suspended solids or bubbles minimum size of 100 microns, minimum concentration 75 ppm | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow Rate Range | ±0.03 m/s to 12.2 m/s (±0.1 ft/s to 40 ft/s) in most applications | ||||||||||||||
| Pipe Size | Ultrasonic sensor mounts on any pipe from 12.7 mm to 4.6 m ID (0.5 in to 15 ft) | ||||||||||||||
| Display | Colour TFT LCD, IPS type, 2.8” screen size, 320 x 240 resolution, 500 NITS brightness, super wide view | ||||||||||||||
| Power Input | Built-in rechargeable lithium polymer battery for up to 15 hours of continuous operation External mains to USB-C charger with 100-240V AC, 50-60Hz, 0.6A input; and 5.0V DC, 3A, 15W output |
||||||||||||||
| Outputs | Log files, daily log files, parameter settings files, and waveform capture files via USB-C flash drive (included) | ||||||||||||||
| Data Logger | 12 million point capacity, configurable for velocity or flow rate, date and time stamped, configurable format for Logger Software (LG2) or CSV, available intervals of 10 s, 30 s, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, and 1 hr | ||||||||||||||
| Extended Logging | Can be deployed in sleep-logging mode for extended battery duration.
|
||||||||||||||
| PC Software | Free Logger Software for Windows. For display, manipulation, analysis, and exporting of data. | ||||||||||||||
| Operating Temperature (Electronics) | -20 °C to +60 °C (-5 °F to +140 °F) | ||||||||||||||
| Electronics Enclosure | IP67 when transducer cables are connected. IP65 when transducer cables are not connected. Aluminium enclosure with silicone protective end covers. | ||||||||||||||
| Carry Case | IP67, with protective moulded foam with room for transducer and installation hardware | ||||||||||||||
| Accuracy | ±2% of reading or 0.03 m/s (0.1 ft/s), whichever is greater. Requires solids or bubbles minimum size of 100 microns, minimum concentration of 75 ppm. Repeatability: ±0.1%, Linearity ±0.5% | ||||||||||||||
| Configuration | Built-in 5-button keypad interface with English, French, and Spanish menu language selection. Optional user-configured password protection. | ||||||||||||||
| Approvals | CE | ||||||||||||||
| Transducer Specifications | |||||||||||||||
| Standard Model PSE4-A2 | Clamp-on, single-head ultrasonic for pipes from 12.7 mm to 4.6 m ID (0.5 in to 15 ft) with 3.4 m (12 ft) shielded dual-coaxial cable and latching connector | ||||||||||||||
| Sensor Mounting Kit | Stainless steel pipe clamp and 3.0 fl oz coupling compound | ||||||||||||||
| Stainless steel pipe clamp and 3.0 fl oz coupling compound | Steel, stainless steel, cast iron, ductile iron, concrete-lined ductile iron, PVC, HDPE, or any contiguous pipe material that conducts sound, including lined pipes with a liner bonded to the pipe wall. Avoid pipes with loose insertion liners and pipe walls that contain air. | ||||||||||||||
| Operating Temperature | -40 °C to +150 °C (-40 °F to +300 °F) | ||||||||||||||
| Ingress Protection | IP68, can withstand 10psi (approx. 23 ft or 7 m of H2O) for 24 hours | ||||||||||||||
Document Downloads
Micronics Portaflow D650 Doppler Flow Meter Datasheet
Micronics Portaflow D650 Doppler Flow Meter User Manual
