Milwaukee M18 Force Logic Hydraulic 53kN Cable Crimper

All Milwaukee Tool Products
  • PFM (Predictive Force Monitoring)
  • Allows crimping of connectors up to 300 mm2
  • ONE-KEY tool tracking & security
  • Brushless motor
  • Optional set with ten dies included
SKU
MILW-M18/L-SET

Read More

View All Crimp Tools & Crimping Pliers

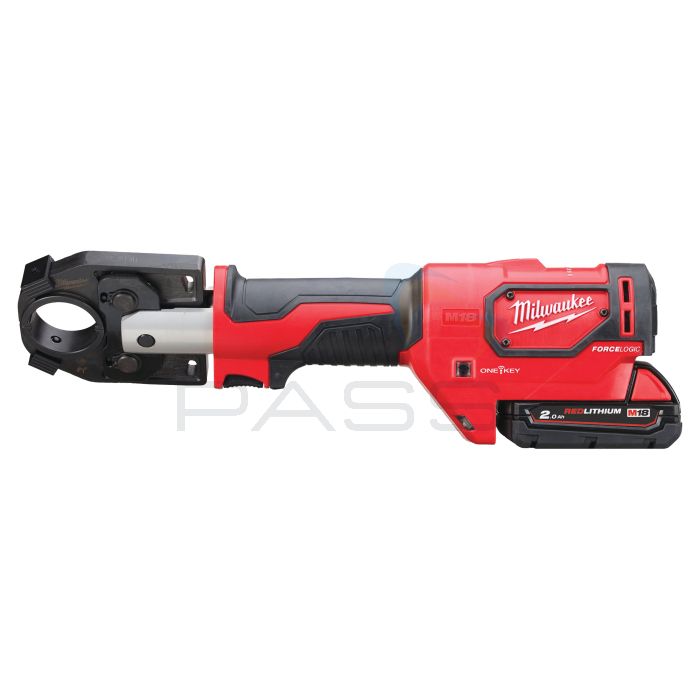

The Milwaukee M18HCCT-201C M18 Cable Crimper generates 53 kN of force and crimps connectors up to 300 mm² in less than three seconds. With a 350° rotatable head and one-hand operation, the crimper is ideal for tight spaces.

PFM (Predictive Force Monitoring) adjusts pressure while providing visual confirmation. 2-in-1 functionality enables switching between crimping and CU/AL cable cutting. Tracking, secure cloud storage, and crimp data logging are available through the ONE-KEY system.

The instrument has sealed electronics, a brushless motor, and a REDLITHIUM battery pack, compatible with all MILWAUKEE M18 batteries. An optional L-SET is available which includes ten dies.

Key Features

  • FORCE LOGIC hydraulic cable crimper crimps connectors up to 300 mm2 in less than 3 seconds with 53 kN of force
  • Revolutionary jaw holds connector for the best alignment of cable and connector
  • 2-in-1 solution: crimping jaw can be exchanged for a CU/AL cable cutting jaw
  • Best balanced tool and easiest control due to one-hand operation
  • Compact in-line and slim jaw design with a 350° rotatable head allows easy crimps, even in narrow spaces
  • PFM (Predictive Force Monitoring): Automatically modifies output based on the connector, ensuring optimal pressure every time and visualises with a green light
  • Allows crimping of connectors up to 300 mm2
  • Universal die reception to fit most common 60 kN U-Dies (C-shaped Dies) on the market
  • The tool records & stores every crimp made for professional report building through the ONE-KEY app and the ONE-KEY adaptor
  • ONE-KEY tool tracking & security offers a free-of-charge cloud-based tracking network and inventory management platform for your tools
  • ONE-KEY also features a remote locking functionality
  • Pre-crimp battery check automatically ensures enough charge to complete each crimp
  • Sealed electronics resist harsh environments with dirt, dust and moisture
  • Brushless motor, REDLITHIUM battery pack and REDLINK electronic deliver power, run time and durability
  • Flexible battery system: works with all MILWAUKEE M18 batteries
  • Optional set with ten dies included

What's Included?

  • Standard (Without Dies)
    • M18 FORCE LOGIC hydraulic cable crimper
    • M18 B2, M18 2.0 Ah battery
    • M12-18C, M12 - M18 charger
    • Kitbox
  • L-SET (Dies Included)
    • M18 FORCE LOGIC hydraulic cable crimper
    • Ten Dies from 16mm2 - 240 mm2
    • M18 B2, M18 2.0 Ah battery
    • M12-18C, M12 - M18 charger
    • Kitbox

Product Range

  • Milwaukee 4933451195 M18 Force Logic Hydraulic 53kN Cable Crimper (Without Dies)
  • Milwaukee 4933464313 M18 Force Logic Hydraulic 53kN Cable Crimper, L-SET (Dies Included)

Videos

Milwaukee M18 System: Overview

Milwaukee® M18™ System: Overview

£915.83
£1,099.00 inc vat
Free Delivery*
1 Option in Stock: Available Next Working Day*
Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.

Ask An Expert
Price Match
Technical Information
Specification
M18 HCCT-201C (Without Dies) M18 HCCT-201C L-SET (Dies Included)
Crimping Force [kN] 53
Crimping Range [mm2] 16 - 300 16 - 240
Crimping Time [s] <3
Crimps per Battery >250 on a 70 mm2 copper connector
Kit Included 1 x M18 B2 Battery pack, M12-18 C Charger, Kitbox
Press cycles 30,000
Press force [kN] 53
Standard Equipment Crimping jaw Including 10 Dies from 16mm2 - 240 mm2
Supplied in Kitbox
Battery Pack Capacity (Ah) 2.0
Battery Type Li-ion
Charger Included M12-18 C
Charger Supplied 40 min
No. of Batteries Supplied 1
Voltage (V) 18
Weight with Battery Pack (EPTA) (kg) 3.7 (M18 B2)
Sound Power Level (Lwa)(dB(A)) 85.6
Sound Power Level Uncertainty (dB(A)) 3
Sound Pressure Level (Lpa)(dB(A)) 74.6
Sound Pressure Level Uncertainty (dB(A)) 3
Vibration Level (m/s2) 0.77
Vibration Uncertainty (m/s2) 1.5
