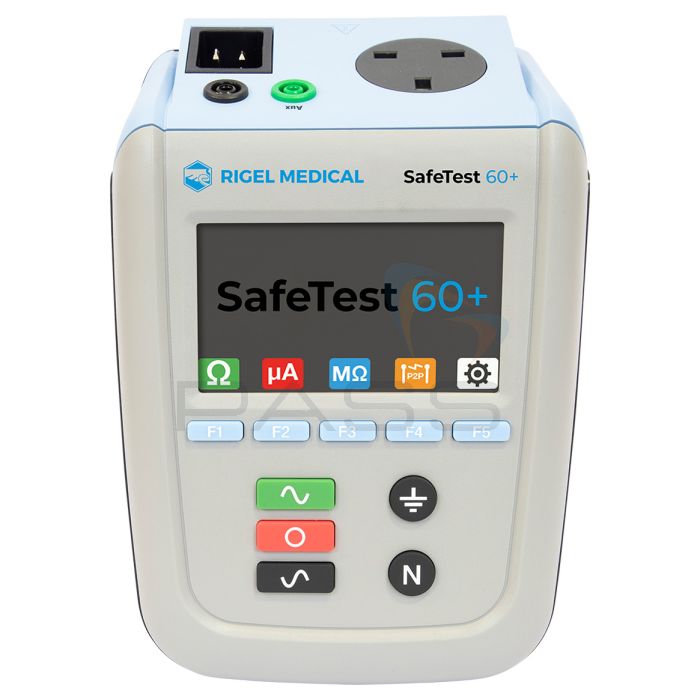

Rigel SafeTest60+ Medical Equipment PAT Tester

The Rigel SafeTest 60+ is a medical safety analyser for testing medical and laboratory equipment. It is ideal for devices that don't require patient-led testing, like beds, hoists, infusion pumps, CPAPs, centrifuges, etc.

Additionally, the SafeTest 60+ includes basic testing capabilities for equipment with applied parts, including patient current leakage and insulation measurements.

This safety analyser supports compliance with a variety of international safety standards, including leakage testing to IEC 60601, 62353, 61010, and NFPA-99, earth bond testing to IEC 62353, 61010, and NFPA-99, and insulation testing to IEC 62353.

The SafeTest 60+ offers flexibility with a wide range of power configurations to meet local and international market needs. Its large colour display and colour-coded user interface simplify test selection with a single key press. In contrast, the fast step-through test routine ensures a quick and reliable testing process.

Key Features

• Compact robust and portable design
• Point-to-point insulation testing 100K - 100MΩ
• Automatic warning of secondary earth/ground paths
• Dynamic pass/fail thresholds during measurement
• Patient leakage testing
• Fast step-through of test routines with minimised power breaks
• Manual control of fault conditions
• Tests to a range of international standards including IEC 6O6O1, 62353, 6IO1O and N FPA-99
• Large colour display with clear read-out
• Secondary earth warnings to ensure valid test setup
• Accurate high current, low energy earth bond testing
• Multi-voltage - operates on any mains supply between 9O-264V/ 48-64Hz

What's Included?

• SafeTest 60+ PAT Tester
• Calibration certificate
• Carry case
• Bond test probe with clip
• Detachable mains cable
• Electronic instruction manual
• Quick start guide
