Specifically designed for use in the medical industry in accordance with all international medical electrical safety standards, Rigel's SafeTest 60 is a powerful, easy-to-use medical PAT tester.
With the Rigel SafeTest 60, it's possible to test a wide variety of medical devices which don't require patient lead testing, plus laboratory equipment. The tester is ideal for testing medical beds, matress inflators, suction units, centrifuges, hoists, nebulisers, ventiliators, syringe drivers, infusion pumps, laboratory incubators and much more to ensure they are fully safe for use by both medical staff and patients.
As it is intended for use within the medical industry, the Rigel SafeTest 60 medical PAT tester is made in compliance with a range of international safety standards. These include leakage testing to IEC 60601, 62353, 61010 and NFPA-99, earth bond testing to 62353, 61010 and NFPA-99 and insulation testing to IEC 62353.
The Rigel SafeTest60 can be used to test all electrical aspects of medical equipment. It can test earth leakage and enclosure leakage, ground leakage, chassis leakage, earth bond, insulation, touch voltage, touch leakage and performs point-to-point testing, mains voltage measurements and load current measurements.
With the SafeTest 60, you have full manual control over your testing. This powerful medical PAT tester gives you full control over power cycles and has automatic warnings of secondary earth/ground paths to ensure that invalid readings are automatically flagged up. When testing medical equipment, you need the results to be accurate, so this warning system is incredibly valuable.
Rigel SafeTest 60 Medical PAT Tester Key Features
- Specifically designed for use in the medical industry to check the electrical safety of medical equipment
- Ready to use out of the box - simple interface makes it easy to use the tester with no prior training
- Compact, robust and portable design - made to resist even the most rigorous of testing regimes
- Fast step-through of testing routines with minimised power breaks
- Tests in line with all relevant international standards including IEC 60601, 62353, 61010 and NFPA-99
- Leakage tests, earth bond tests and insulation testing procedures
- Manual control of fault conditions with full control over power cycles
- Precision insulation test ensures local or specific requirements are met and can show potential deterioration in dielectrics or show possible neutral-to-earth faults
- Large-size colour display with clear readout and simple to use function keys for quick access to all tests
- Accurate high current, low energy bond testing - unique to Rigel, this mode gives precise readings at all times
- Secondary earth warnings to ensure valid tests - get the correct results every time with automated, unique verification on incoming mains and secondary paths

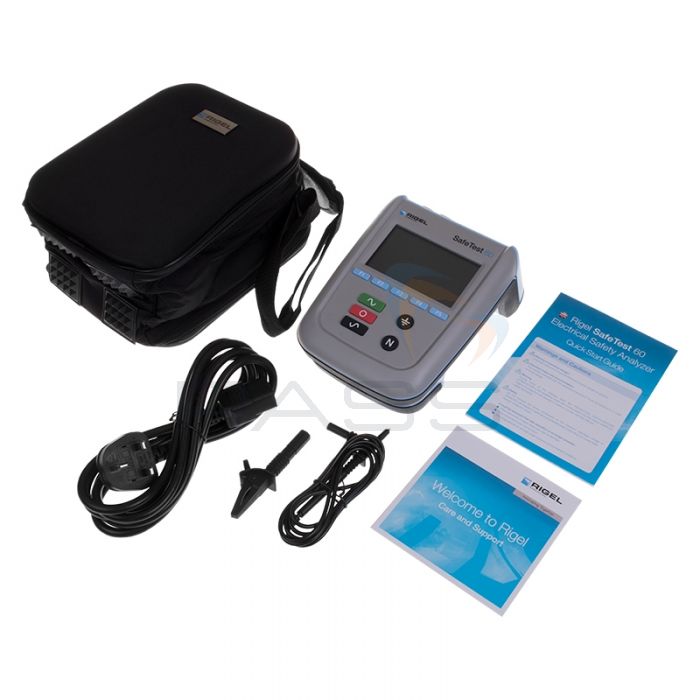

What's Included?
- Rigel SafeTest 60 Medical PAT Tester
- Manufacturer's Calibration Certificate
- Carrying Case
- Bond Test Probe with Clip
- Detachable Mains Cable
- Electronic Instruction Manual
- Quick Start Guide
Rigel SafeTest 60 Technical Specifications
Earth Continuity | |
---|---|
Method | 2 wire ZAP technique |
Test Current | >±200mA DC into 2Ω |
Max Test Voltage | 4-24V rms o/c |
Measuring Range (Low Range) | 0.001 to 0.999Ω / 0.001Ω resolution |
Measuring Range (Mid Range) | 1.00 to 9.99Ω / 0.01Ω resolution |
Measuring Range (High Range) | 10.0 to 19.9Ω / 0.1Ω resolution |
Accuracy | ±1% of value, ±5mΩ |
Circuit Protection | Test inhibited if ≥30V AC or DC at 4mm inputs |
Insulation Resistance | |
Measurement | EUT to Earth |
Voltage | 500V DC@1mA |
Maximum O/C Voltage | <600V DC |
Range | 100K to 20MΩ ±5% ± 2 digits |
Resolution | 0.01MΩ |
Short Circuit Current | <2mA |
Powered Leakage Measurements | |
IEC 62353 | Equipment Leakage (Direct) |
IEC / AAMI 60601 | Earth + Enclosure Leakage |
NFPA-99 | Ground + Chassis Leakage |
IEC 61010 | Touch Leakage, Touch Voltage |
Test Voltage | Mains Supply Voltage |
Measuring Range | 0.1 to 9999μA (0.1 to 8000μA typical for IEC 61010) |
Measurement Display/Resolution | 0.1μA |
Accuracy | ±2% ± 5μA |
Single Fault Conditions | Open neutral via softkey Open earth via softkey |
Frequency Response | IEC 60601 - 62353, NFPA-99 and IEC 61010 |
Voltage Measurement | |
Application | L-N, L-E, N-E and touch voltage (IEC 61010) |
Range | 0.0 to 300V AC |
Resolution | 0.1V |
Accuracy | ±2% ± 2 digits (between 10V to 270V AC) |
Mains Frequency | 45.0 to 66.0Hz |
Resolution | 0.1Hz |
Accuracy | Unspecified |
EUT Load Current Measurement | |
Range | 0.0 to 20.0A |
Resolution | 0.1A |
Accuracy | ±5% ± 2 digits |
Power Source | |
Maximum Current Rating | 20A @ 120V / 16A @ 230V |
Duty Cycle | 15A to 20A, 5 min on/5 min off 10A to 15A, 7 min on/3 min off 10A to 15A, 7 min on/3 min off |
Mains Power | 90 to 264V, 48-64Hz |
SKU | SAFETEST60 |
---|---|
Manufacturer Part Code | 410A910 |
Model Ref | Rigel SAFETEST60 |
