Seaward KD1E / 15D Digital Potential Indicator
Unlike other models in the KD1E range, this device includes the ability to display a full reading of voltage levels rather than simple indication of voltage presence.
This device is a long-length high voltage indicator that can be used to verify the status of voltage on high voltage equipment up to 15kV. It can quickly be used as a potential indicator or alternatively measures the full voltage value and displays it on the built-in screen which is just above the gripping handle.
It's easy to operate, comes in a rugged housing for protection in difficult environments and includes a low battery indication function.
A proving unit is also supplied with this unit in order to test the accuracy of the KD1E/15D both before and after testing
Seaward KD1E/15D Digital High Voltage Indicator Key Features
- Tests up to 15kV
- Digital display of full test values
- Neon indicators
- Robust and hard-wearing
- Rechargeable batteries
- Suitable for use on earthed neutral electrical circuits
- High grade PVC tubing
- Totally encapsulated resistor chains
Full List of Products Included

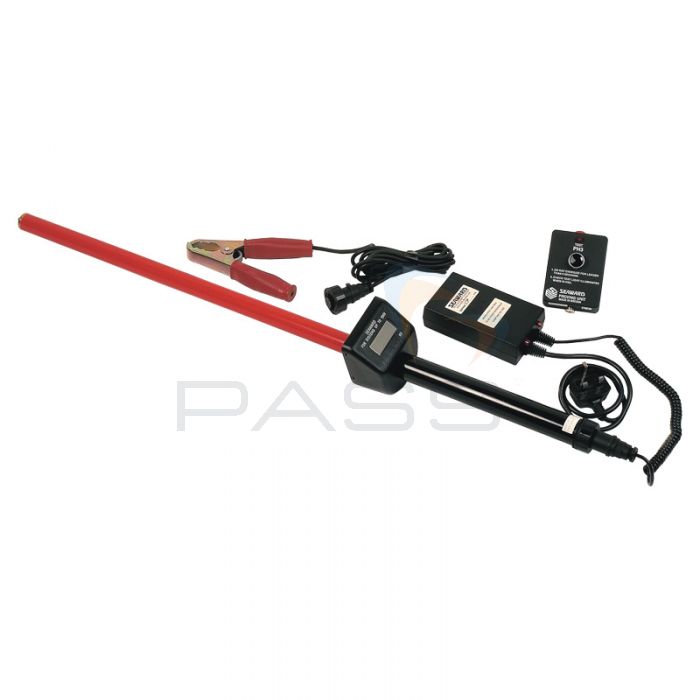

- Seaward KD1E/15D Digital High Voltage Indicator
- Seaward PH3 Proving Unit
- Battery Charger
- Carrying Case
Seaward KD1E Comparison Chart
The Seaward KD1E is available in several different variations. Use this handy comparison chart to pick exactly which one you need for your application.
| Indicator Type | KD1E | KD1E/19 | KD1E/19S | KD1E/22 | KD1E/33 | KD1E/15D | KD1E/33D |
| Maximum System Voltage | 11kV | 19kV | 19kV | 22kV | 33kV | 15kV | 33kV |
| Maximum Voltage to Earth | 6.6kV | 11kV | 11kV | 12.5kV | 19kV | 8.6kV | 19kV |
| Threshold Voltage | 300V | 300V | 300V | 300V | 300V | ||
| Measuring Range | 0.00kV - 8.6kV | 0.00kV - 19.9kV | |||||
| Resolution | 10V | 100V | |||||
| Sensitivity | AC/DC | AC/DC | AC Only | AC/DC | AC/DC | AC/DC | AC/DC |
| Circuit Current | 2.3mA nominal | 0.7mA nominal | 0.9mA nominal | 3.5mA nominal | 1.1mA nominal | 0.5mA nominal | 1.1mA nominal |
| (IEC 61234-2) | @6.6kV | @11kV | @11kV | @12.5kV | @19kV | @8.6kV | @19kV |
| Dielectric Leakage Current | 7μA nominal | 11μA nominal | 12μA nominal | 12μA nominal | 17μA nominal | 9μA nominal | 17μA nominal |
| (IEC 61243-2) | @13.8kV | @ 22.8kV | @ 22.8kV | @ 26.4kV | @ 40kV | @ 18V | @ 140kV |
| Length (mm) | 330 | 330 | 330 | 665 | 670 | 600 | 600 |
| Diameter (mm) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Handle Length (mm) | 105 | 105 | 105 | 90 | 250 | 235 | 235 |
| Hand Guard Height (mm) | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 | 23.5 |
| Contact Electrode Type) | Domed | Flat | Flat | Domed | Domed | Domed | Domed |
| SKU | SEAHV1 |
|---|---|
| Manufacturer Part Code | 109A910 |
| Model Ref | KD1E/15D |
