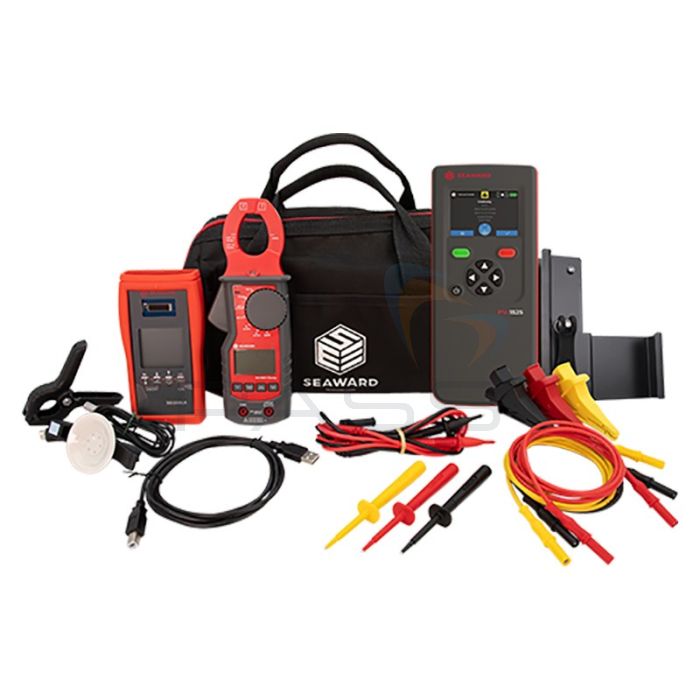

The Seaward Solar PV:1525-IV verifies safety and functionality in PV systems rated up to 1500V DC and 25A. It enables a suite of checks like earth continuity, insulation quality, voltage under open-circuit conditions, and short-circuit current levels.
The PV:1525PV-IV has IV curve tracing. This function visualises module performance and diagnoses potential faults, displayed on a bright colour screen.
Equipped with Bluetooth functionality, the PV:1525-IV allows wireless syncing with mobile apps for efficient test record capture, labelling, and firmware management. The instrument also includes illuminated controls, internal memory for test storage, and a manual mode.
Get a free gift this Black! Even better, this bonus stacks with any other offer.
Free item will automatically add to your basket. Limited Stock. Offer is based on ex VAT basket total after discounts and before shipping costs. See Black Friday Offers for details.
Remember: We will not be beaten on price. Contact us if you've seen a cheaper price.
| Open Circuit Voltage Measurement (PV Terminals) | |
|---|---|
| Display Range | 0.0VDC - 1500VDC |
| Measuring Range | 5.0VDC - 1500VDC |
| Resolution | 0.1VDC maximum |
| Short Circuit Current Measurement (PV Terminals) | |
| Display Range | 0.00ADC - 25.00ADC |
| Measuring Range | 0.50ADC - 25.00ADC |
| Maximum Power | 37.5kW |
| Resolution | 0.01 ADC maximum |
| IV Curve Measurement (PV:1525-IV Only) | |
| Number of Test Points | Dynamic |
| Max Power | Depending upon Irradiance and Panel Technology |
| Earth Continuity / Resistance Measurement (4mm Terminals) | |
| Test Voltage Open Circuit | >4VDC, nominal |
| Test Current into 2Ω | >200mA |
| Display Range | 0.00Ω - 199Ω |
| Measuring Range (EN 61557-4) | 0.05Ω - 199Ω |
| Resolution | 0.01Ω maximum |
| Test Leads Zero | Zero up to 10Ω |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat Tests as per IEC61557-4 | Approx 4000 1-second tests |
| Insulation Resistance Measurement (4mm Terminals) | |
| Test Voltage Open Circuit | 250, 500, 1000, 1500V (as per IEC61557-2) |
| Test Current Short Circuit | 2mA |
| Display Range | 0.05MΩ - 300MΩ |
| Measuring Range (EN61557-2) | 0.05MΩ - 300MΩ |
| Resolution | 0.01MΩ Maximum |
| Visible Warning | ≥30V AC or DC at inputs |
| Circuitry Protection | Test inhibited if ≥30V AC or DC at inputs |
| Repeat Tests as per IEC61557-4 | Approx 4000 1-second tests |
| RPE Voltage Measurement (4mm Terminals) | |
| Display Range | 30V - 440VAC/DC |
| Voltage Measuring Range | 30V - 440VDC 30V- 440VAC 50-60Hz |
| Resolution | 1V |
| Operating Current (Wireless via PV:1500 Clamp) | |
| Display Range | 0.1A - 40.0A |
| Current Measuring Range | 0.1A - 40.0A DC 0.1A -40.0A AC 50-60Hz |
| Operating Power (PV Terminals & wireless using PV:1500 Clamp) | |
| Display Range | 0.00kW - 40kW |
| Measuring Range | 0.50kW - 40kW |
| Resolution | 0.01kW |
| General | |
| Weight | 1kg / 2.2lb |
| Dimensions | 265 x 115 x 78 mm 10.4 x 4.6 x 3.1 in |
| Display | 3.5in Colour display with Backlight |
| Power Source | 11.55V 2930mAh LiPo Battery |
| Auto Power Down | User Configurable |
| Onboard Memory | 1000 Slots |
