Siglent SEM5000A Series Electronic Calibration Kits (2 or 4 Ports) - Choice of Kits
- 9kHz - 4.5GHz, 9kHz - 9GHz, 9kHz - 13.5GHz, or 9kHz - 26.5GHz
- 2 or 4 Ports
- Suitable for vector network analyzers
SKU
SEM5000A-KITS
This selection of Siglent SEM5002A series electronic calibrator kits covers the frequency bands of 9kHz to 4.5GHz, 9kHz to 9GHz, 9kHz to 13.5GHz, and 9kHz to 26.5GHz. They have a USB interface for communication and power supply and have SMA or 3.5mm RF connectors.
Suitable for calibration and error correction of Siglent SHA800A series, SVA1000X series, SNA5000X series, SNA5000A series, and SNA6000A series vector network analyzers.
Operating Temperature
The temperature of the electronic calibrator must be within the following temperature range to meet the operating specifications. SEM5000A series: +15°C to +35°C and relative humidity must not exceed 75%.
Key Features
- Frequency range: 9kHz - 4.5GHz, 9kHz - 9GHz, 9kHz - 13.5GHz, or 9kHz - 26.5GHz
- Maximum input power level: +20 dBm
- Maximum protection DC voltage: ±35 V
- RF connector types: SMA female or 3.5mm female depending on the model
- 50Ω female, Type-N 50Ω male
- Number of supported ports: 2 or 4 depending on the model
- Power supply control: USB 2.0
| SEM5000A | 9kHz to 2.5GHz | 2.5 to 4GHz | 4 to 6GHz | 6 to 9GHz |
|---|---|---|---|---|
| Directivity (dB) | 44 | 40 | 38 | 35 |
| Source match (dB) | 40 | 34 | 32 | 30 |
| Reflection tracking (± dB) | 0.14 | 0.25 | 0.3 | 0.4 |
| Transmission tracking (± dB)2 | 0.12 | 0.17 | 0.2 | 0.23 |
| Load match (dB)2 | 33 | 32 | 33 | 30 |
Product Range
- Siglent SEM5002A Electronic Calibration Kit 2 Ports, 9 kHz~4.5 GHz, SMA Female
- Siglent SEM5004A Electronic Calibration Kit 4 Ports, 9 kHz~4.5 GHz, SMA Female
- Siglent SEM5012A Electronic Calibration Kit 2 Ports, 9 kHz~9 GHz, SMA Female
- Siglent SEM5014A Electronic Calibration Kit 4 Ports, 9 kHz~9 GHz, SMA Female
- Siglent SEM5022A Electronic Calibration Kit 2 Ports, 100 kHz~13.5 GHz, 3.5 mm Female
- Siglent SEM5024A Electronic Calibration Kit 4 Ports, 100 kHz~13.5 GHz, 3.5 mm Female
- Siglent SEM5032A Electronic Calibration Kit 2 Ports, 100 kHz~26.5 GHz, 3.5 mm Female

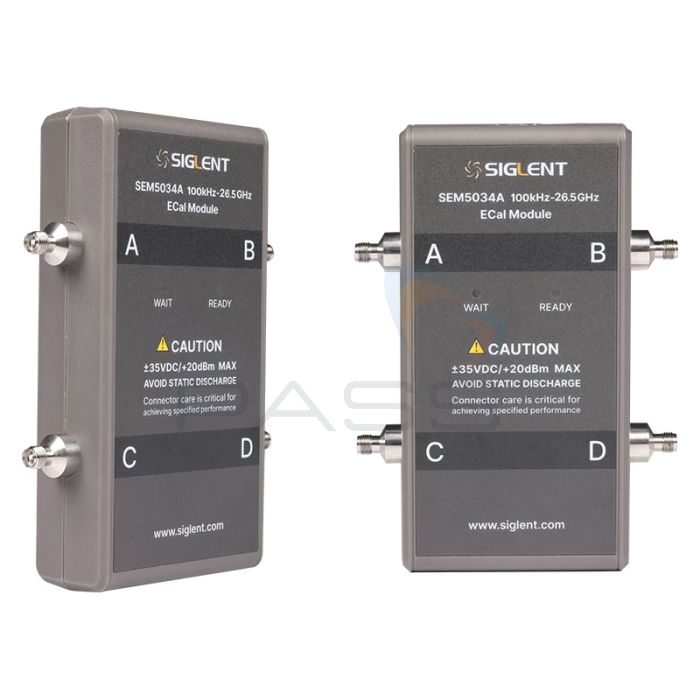

- Siglent SEM5034A Electronic Calibration Kit 4 Ports, 100 kHz~26.5 GHz, 3.5 mm Female
