Siglent SHA850-AMA Analog Modulation Analysis (SW)
Description

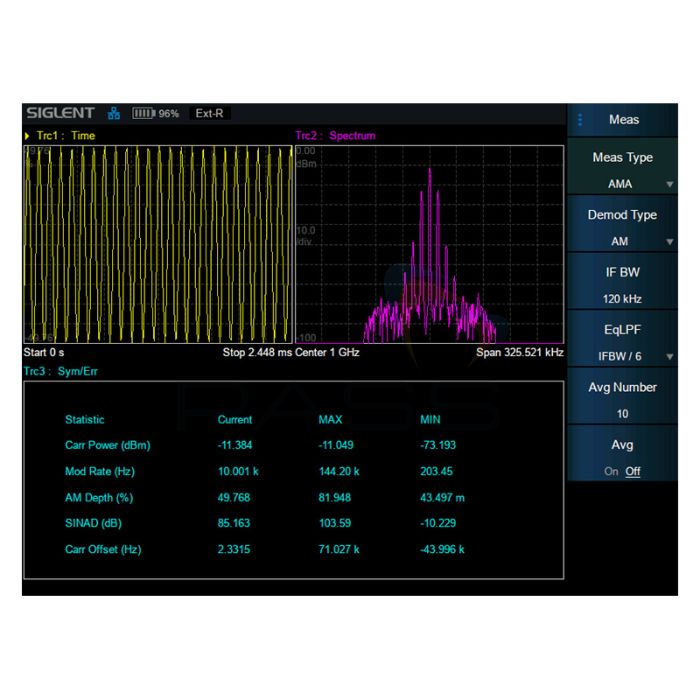

The Siglent SHA850-AMA is the analog modulation analysis option (AM/FM/PM) for the SHA851A and SHA852A analyzer.
| Analog Modulation Analysis | ||
|---|---|---|
| Common Parameter | ||
| SHA851A | SHA852A | |
| Carrier Frequency Range | 2 MHz ~ 3.6 GHz | 2 MHz ~ 7.5 GHz |
| Carrier Power Accuracy | ±2 dB (nom.) | |
| Carrier Power Range | -30 dBm to +20 dBm (nom.) | |
| AM | ||
| Modulation Rate Range | 20 Hz to 100 kHz | |
| Accuracy | 1 Hz (nom.) | Modulation rate < 1 kHz |
| < 0.1% modulation rate (nom.) | Modulation rate ≥ 1 kHz | |
| Modulation Depth Range | 5% to 95% | |
| Accuracy | ±4% (nom.) | |
| FM | ||
| Modulation Rate Range | 20 Hz to 200 kHz | |
| Accuracy | 1 Hz (nom.) | Modulation rate < 1 kHz |
| < 0.1% modulation rate (nom.) | Modulation rate ≥ 1 kHz | |
| Frequency Deviation | 1 kHz to 400 kHz | |
| Accuracy | ±4% (nom.) | |
| PM | ||
| Modulation Rate Range | 50 Hz~50 kHz | |
| Accuracy | 1 Hz (nom.) | Modulation rate < 1 kHz |
| < 0.1% modulation rate (nom.) | Modulation rate ≥ 1 kHz | |
| Frequency Deviation | 0.2~100 rad | |
| Accuracy | ±4% (nom.) | |
