Sofamel PATL-MPL Phase Earthing Equipment
- TT-50 milling earthing lathe
- 12, 19, 25, or 30 KA/1s
- Nineteen options to choose from
SKU
SOFA-PAT-MPL-X
These Sofamel PAT-MPL phase earthing and short-circuit kits include an MPL clamp. The clamp is fixed to the uncovered conductor by screw tightening for cylindrical conductors, flat bars, and flexible bus bars. The kits are suitable for high-voltage overhead lines and substations. They protect the operator from accidental commissioning or possible voltage return during repair operations. According to the IEC 61230 standard. Nineteen options are available to choose from with 12, 19, 25, or 30 KA/1s short circuit currents.

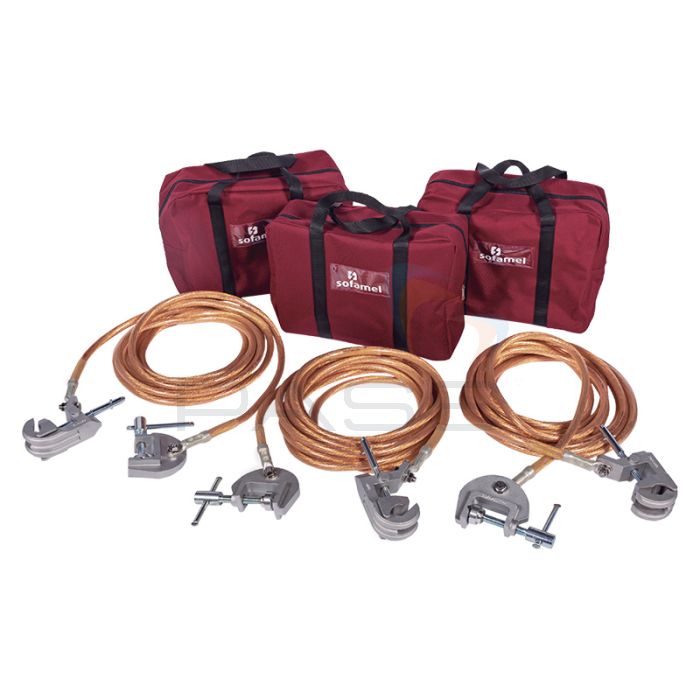

What's Included?
- 3 MPL aluminium alloy clamps with screw tightening for cylindrical conductors with diameters between 5 and 45 mm and flat bars.
- 3 copper cables with PVC insulation. Section and length depend on the model.
- 3 TT-50 milling earthing lathe.
- 3 nylon bags to store and transport the equipment.
| Cable Section (mm2) | Length (m) | Short Circuit Current ICC Max. | |
|---|---|---|---|
| PAT-MPL/05006 | 50 | 6 | 12 KA/1s |
| PAT-MPL/05007 | 7 | ||
| PAT-MPL/05008 | 8 | ||
| PAT-MPL/05009 | 9 | ||
| PAT-MPL/05010 | 10 | ||
| PAT-MPL/07006 | 70 | 6 | 19 KA/1s |
| PAT-MPL/07007 | 7 | ||
| PAT-MPL/07008 | 8 | ||
| PAT-MPL/07009 | 9 | ||
| PAT-MPL/07010 | 10 | ||
| PAT-MPL/09506 | 95 | 6 | 25 KA/1s |
| PAT-MPL/09507 | 7 | ||
| PAT-MPL/09508 | 8 | ||
| PAT-MPL/09509 | 9 | ||
| PAT-MPL/09510 | 10 | ||
| PAT-MPL/12006 | 120 | 6 | 30 KA/1s |
| PAT-MPL/12007 | 7 | ||
| PAT-MPL/12008 | 8 | ||
| PAT-MPL/12009 | 9 | ||
| PAT-MPL/12010 | 10 |
