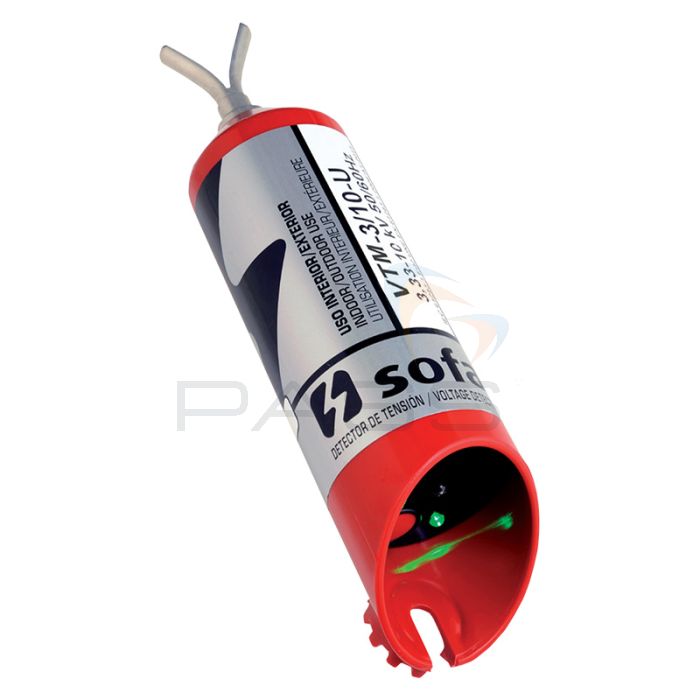

Sofamel VTM IEC Medium Voltage Detector

These Sofamel VTM voltage detectors alert the operator with a high-brightness red LED and high acoustic pressure buzzer when the presence of voltage is detected. The absence of voltage is indicated by a green LED of high luminosity. The advanced technology guarantees a perfect and safe indication even in conflicting electric field environments. Six models are available - 3 to 10 kV, 4 to 12 kV, 10 to 30 kV, 15 to 45 kV, 11 to 33 kV, and 22 to 66 kV.

Key Features

• Voltage presence is indicated by high luminosity red LED and high acoustic pressure buzzer.
• Voltage absence is indicated by high luminosity green LED.
• Low battery is indicated by an orange LED.
• Self-checking system for its complete circuit by pressing the test button.
• Stops working when low battery.
• Frequency: 50 / 60 Hz
• Humidity from 20% to 96%.
• Work temperature range: from -25°C to +55°C.
• Climate category N
• Self-ignition when voltage presence.
• Auto turn-off into sleep mode after two minutes of voltage absence. In this mode, consumption is less than 1μA.
• Power supply: 9V alkaline battery, type 6LR61 (included).
• Detector class L, detector without contact electrode extension.
• Indicators group 3, detector with alert state and indicator of “Voltage presence”.
• Indoor and outdoor use by appropriate insulating poles to the detector voltage range.
• Connection to the pole by Universal head.
• Coupling to the pole using a universal head
• Supplied with metallic box.
• According to IEC 61243:2003+A1:2009 and UNE-EN 61243-1:2006+A1:2011 standards

Product Range

• Sofamel VTM-3/10-U Voltage Detector, 3 to 10 kV
• Sofamel VTM-4/12-U Voltage Detector, 4 to 12 kV
• Sofamel VTM-10/30-U Voltage Detector, 10 to 30 kV
• Sofamel VTM-11/33-U Voltage Detector, 11 to 33 kV
• Sofamel VTM-15/45-U Voltage Detector, 15 to 45 kV
• Sofamel VTM-22/66-U Voltage Detector, 22 to 66 kV
