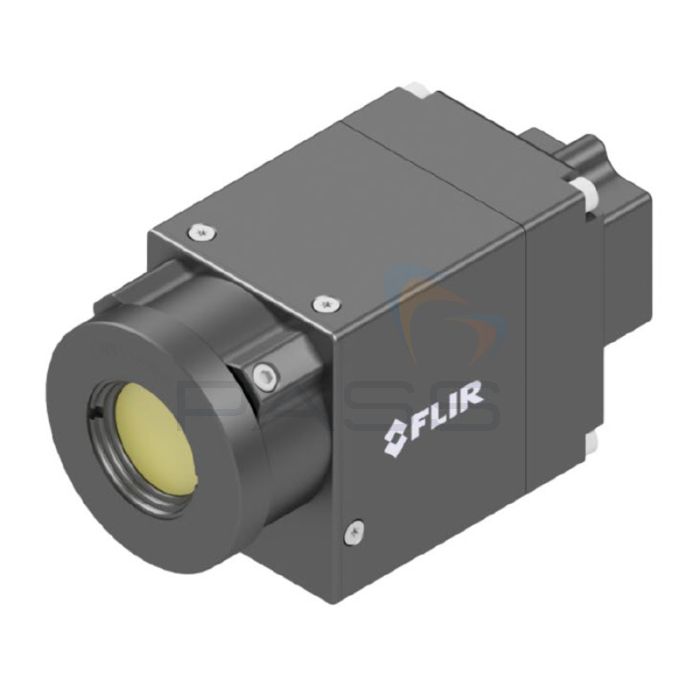

FLIR A68 Thermal Camera (30Hz) - 24 or 42° Lens
FLIR A68 - Thermal Cameras for Machine Vision
Compact and therefore ideal for machine vision integration, the FLIR A68 Thermal Camera is an infrared imager with a 640 x 480px IR resolution, 30Hz frame rate, and a fixed focus that can be adjusted using an Allen key.
Compliant with GigE Vision and GenICam, it delivers a stable GigE Vision stream as well as an 8-bit or 16-bit IR stream. The FLIR A68 Thermal Camera is also compatible with FLIR Spinnaker, Sapera, and third-party SDKs.
The FLIR A68 Thermal Camera is a small, high-resolution infrared imager with digital zoom, perfect for machine vision applications.
Simplified Setup for Complex Applications
The uncomplicated design has valuable features, including a 60 Hz frame rate, 8- and 16-bit video streaming, and Power over Ethernet.
Easy Integration into Existing Systems
Standard vision camera protocols allow the cameras to integrate seamlessly into GenICam™ compliant software, resulting in accelerated system development and solution deployment.
Swa-Pc Optimised
At just 29 x 36 x 59 mm (5.1 x 5.5 x 3.9 in), FLIR A68 cameras are small enough to fit in tight spaces but rugged enough to withstand temperatures up to 60°C (140°F).
FLIR A68 Thermal Camera Key Features
- Compact infrared imager
- Ideal for machine vision integration
- IR resolution: 640 x 480px
- Frame rate: 30Hz
- Fix focus that can be adjusted using an Allen key
- Stable GigE Vision Stream
- 8-bit or 16-bit IR stream
- Compliant GigE Vision and GenICam
- Compatible with Teledyne FLIR Spinnaker, Teledyne Sapera, and third-party SDKs
- Digital zoom (1x, 2x, 4x, 8x, or 16x)
- Power over Ethernet (PoE)
- Visual camera with multicolour LED on the back plate
- General-purpose optocoupler input allows frame acquisition using an external trigger
- General purpose opto-coloured output (user, count, alarm, or timer-driven triggering)
- Counter function available based on general-purpose optocoupler input
- Defective pixel replacement
- Supports image timestamp based on 1EEE1588-2008 Precision Time Protocol for synchronisation between multiple cameras
- Built-in pseudo-colour for enhanced visualisation
- Image metadata supported
- Internal mechanical shutter for remote calibration
- A small, high-resolution infrared camera perfect for machine vision applications
What’s Included?
- FLIR A68 Thermal Camera
- Your Choice of Lens
FLIR A68 Thermal Camera Technical Specifications
| Imaging and Optical Data | |
| Infrared resolution | 640 × 480 pixels |
| Thermal sensitivity (NETD) | < 50 mK @ 25°C ambient |
| Field of view (FOV) | 24° Lens: 24.2° × 18.4° |
| 42° Lens: 42.1° × 31.9° | |
| Minimum focus distance | 24° Lens: 2.0 m (6.6 ft) |
| 42° Lens: 1.3 m (4.3 ft) | |
| Focal length | 24° Lens: 25mm (0.98 ft) |
| 42° Lens: 14.2 mm (0.56 in) | |
| f-number | 24° Lens: 1.2 |
| 42° Lens: 1.24 | |
| Image frequency | 30 Hz |
| Focus | Fixed |
| Detector Data | |
| Spectral range | 8–14 µm (LWIR) |
| Detector pitch | 17 µm |
| Ethernet | |
| Interface | Wired |
| Connector type | RJ-45 |
| Ethernet, purpose | Control, image, and power |
| Ethernet, type | Gigabit Ethernet |
| Ethernet, standard | IEEE 802.3 |
| Ethernet, communication | GigE Vision / GenICam |
| Ethernet, power | Power over Ethernet (PoE) |
| Ethernet, protocols | GigE Vision |
| Pixel format | Mono8 or 16-bit/pixel |
| Power System | |
| Power consumption, typical |
|
| Power consumption, maximum |
|
| Environmental Data | |
| Operating temperature range | –35°C to +60°C (-31°F to +140°F) |
| Storage temperature range |
–40 to 80°C (–40 to 176°F)
To avoid possible damage during storage, ensure that the sensor is not exposed to air. Use a lens cap or lens to cover the sensor.
|
| Humidity (operating and storage) | Maximum 80% relative humidity, non-condensing |
| Physical Data | |
| Weight (without lens) | 67 g (2.4 oz) |
| Size (L × W × H, without lens) | 59 × 29 × 36 mm (2.32 × 1.14 × 1.42 in) |
| Tripod mounting | UNC ¼″-20 |
| SKU | FLIR-A68 |
|---|
