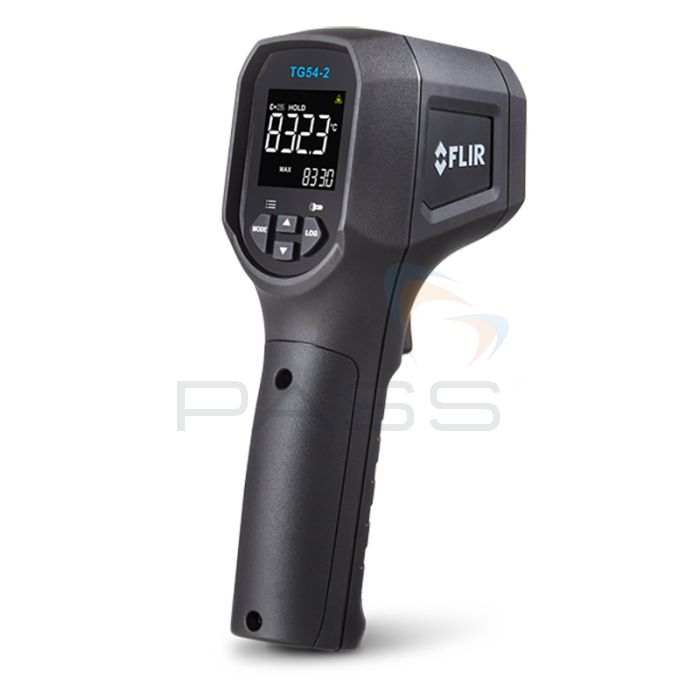

Designed for taking non-contact surface temperature measurements of hard-to-reach objects, the Teledyne FLIR TG54-2 20:1 Spot IR Thermometer is an infrared thermometer with a 20:1 distance-to-spot ratio. An integrated laser guides you clearly to the measurement location while a built-in work light can be used to illuminate targets in dim or dark conditions.
The current reading may be displayed simultaneously alongside the latest two readings on the Teledyne FLIR TG54-2 20:1 Spot IR Thermometer’s colour, easy-to-navigate screen. A graphical menu makes accessing settings, such as emissivity with predetermined levels and custom adjustments, and features, like high and low alarms, easy.
Finally, this pocket-sized IR thermometer is 3m-drop-tested and features a tool-less battery compartment. The Teledyne FLIR TG54-2 20:1 Spot IR Thermometer is perfect for taking quick, safe, non-contact temperature measurements in rugged environments.
Teledyne FLIR TG54-2 20:1 Spot IR Thermometer Applications
- Inspect industrial electrical and mechanical equipment
- Monitor equipment for signs of degradation before it fails
- Ensure energy efficiency in building inspections
Teledyne FLIR TG54-2 20:1 Spot IR Thermometer Key Features
- Pocket-sized infrared thermometer
- Take non-contact surface temperature measurements of hard-to-reach objects
- Distance-to-spot ratio: 20:1
- Integrated laser
- Built-in work light
- The current reading may be displayed simultaneously with the latest two readings
- Colour, easy-to-navigate screen
- Graphical menu
- Emissivity selection with predetermined levels and custom adjustments
- High and low alarms
- 3m drop-tested
- Tool-less battery compartment
- Perfect for taking quick, safe, non-contact temperature measurements in rugged environments
What’s included?
- Teledyne FLIR TG54-2 20:1 Spot IR Thermometer
- 9V Battery
- Storage Pouch
- Quick Start Guide
Teledyne FLIR TG54-2 20:1 Spot IR Thermometer Technical Specifications
Imaging and Optical | |
Display | 1.57” Color EBTN |
Laser Orientation | Single point laser to upper edge of measurement |
Laser Power | <1mW, Class II |
IR Range | -30°C to 850°C (-22°F to 1562°F) |
Spectral Response | 8 µm to 14 µm |
Measurement & Analysis | |
AVG | Last 20 readings |
Basic Accuracy | 0°C to 100°C (32°F to 212°F): ±1.0°C (±1.8°F) |
Differential (MAX/MIN) | Yes |
Distance to Spot Ratio (D:S) | 20:1 |
Emissivity | 0.01 to 1.00 with 5 presets |
Max/Min | Min/Max/Avg/Dif |
Measurement Resolution | 0.1°C / 0.1°F |
Response | 250 Milliseconds |
Power | |
Auto Power Off | 5 or 15 seconds (selectable) |
Continuous Run Time | 8 hours maximum continuous temperature measurements |
Power Source | 9V alkaline battery (included) |
General | |
Alarm | High/low alarms with programmable set points |
Alarm Alert | HI or LO will flash on the display |
Datalogging | Manual and automatic data logger |
Dimensions (L × W × H) | 192 mm × 94 mm × 64 mm (7.5 in × 3.7 in × 2.5 in) |
Includes | Spot IR Thermometer, 9V battery, Quick Start Guide and Storage Pouch |
Memory | 2 × 99 sets data storage |
Scanning Mode | Yes |
Weight | 292 g (10.3 ounces) |
Worklights | Yes |
Environmental & Certifications | |
Certifications | CE, UKCA, RCM, WEEE and FDA |
IP Rating | IP65 |
Drop Test | 3 m (9.8 ft) |
Warranty | Limited 3-Year Warranty from Teledyne FLIR |
SKU | TG54-2 |
---|---|
Manufacturer Part Code | TG54-2 |
