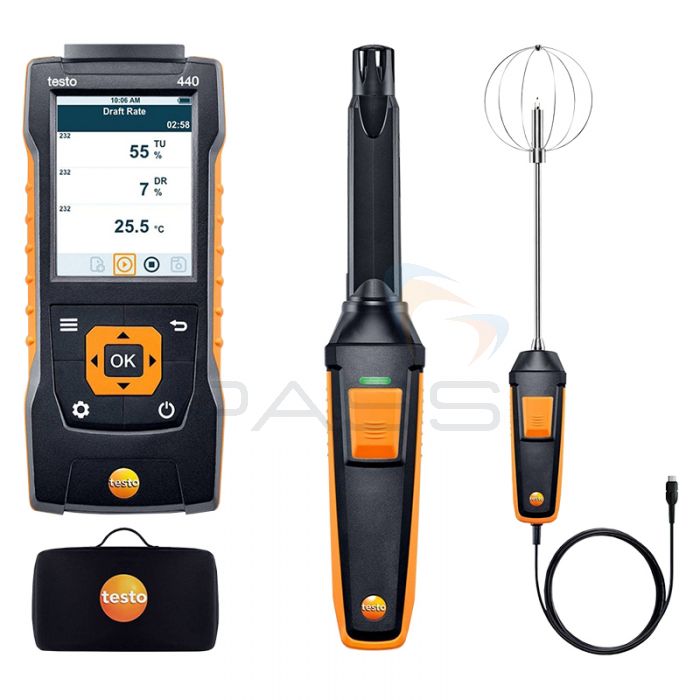

Testo 440 Indoor Comfort ComboKit with Bluetooth
The Testo 440 Indoor Comfort ComboKit with Bluetooth can be used to measure CO₂ concentration, air temperature, humidity and turbulence in accordance with EN ISO 7730/ ASHRAE 55. It is also capable of determining wet bulb temperature, dew point, absolute humidity, and draught risk. To this end, the Testo 440 Indoor Comfort ComboKit with Bluetooth consists of the following products:
- Testo 440 Air Velocity and IAQ Tester
- Digital Bluetooth CO₂ Probe with a Temperature and Humidity Sensor
- 3x AA Batteries for the Testo 440
- USB Cable
- Calibration Protocol for the Testo 440
- 4x AA Batteries for the CO₂ Probe
- Table Stand for the CO₂ Probe
- Calibration Protocol for the CO₂ Probe
- Turbulence Probe with Fixed Cable
- Calibration Protocol for the Turbulence Probe
- Combi-Case for the Testo 440 and Multiple Probes
Please see the descriptions below for further information regarding these products.
Testo 440 Air Velocity and IAQ Tester Description
The Testo 440 Air Velocity and IAQ Tester can be combined with a variety of compatible Testo probes to measure numerous environmental parameters. Please see the video below for a quick introduction to the Testo 440 Air Velocity and IAQ Tester.
Up to three probes can be connected to the Testo 440 Air Velocity and IAQ Tester simultaneously: one Bluetooth probe (such as the CO₂, temperature and humidity probe included in this kit), one wired probe (such as the included turbulence probe), and one temperature probe with a type-K thermocouple connector (NOT included).
The Testo 440 Air Velocity and IAQ Tester will automatically recognise each probe on connection and will adjust its parameters accordingly. When used with the aforementioned probes, the Testo 440 Air Velocity and IAQ Tester is able to monitor the air quality of indoor environments, such as offices, production areas and facilities. It can measure:
- Air temperature
- Humidity
- CO₂ concentration
- Wet bulb temperature
- Dew point
- Absolute humidity
- Turbulence
- Draught risk
This instrument can also be used with an OPTIONAL hot wire or vane probe (NOT included) to measure volume flow.
CO₂ concentration, ambient air temperature, and humidity are measured and indicated in parallel via the large, graphic display. Wet bulb temperature, dew point and absolute humidity are calculated simultaneously when required, and the draught risk is determined automatically when the Testo 440 Air Velocity and IAQ Tester is used with the turbulence probe.
Furthermore, when the Testo 440 Air Velocity and IAQ Tester is used in conjunction with the turbulence probe it is able to measure turbulence in accordance with EN ISO 7730/ ASHRAE 55 even in low air velocities.
Temperature, humidity and CO₂ measurements can be conducted without long cables and up to twenty metres away from the Testo 440 as a result of the probe’s Bluetooth capabilities. This not only adds to the practicality of testing but also saves on space during transportation and storage.
The Testo Digital Bluetooth CO₂ Probe’s universal handle also adds to the practicality of testing as probe heads (OPTIONAL) can be used interchangeably with this handle, allowing the user to conduct a greater variety of measurements using less equipment. Please see the video below for a quick overview of the Testo Probe System.
Additionally, only the probe heads need to be sent for recalibration, allowing the user to maximise the Testo 440 Air Velocity and IAQ Tester’s uptime.
The speed and simplicity of testing are also improved by the Testo 440 Air Velocity and IAQ Tester’s clearly structured measurement menu which facilitates quick and easy access to the required tests. When using the supplied Bluetooth probe, data can be saved to the Testo 440 Air Velocity and IAQ Tester by pressing the button on the universal handle.
Alternatively, the Testo 440 Air Velocity and IAQ Tester can be programmed to take and log measurements at specified intervals over the course of a measurement cycle.
It is possible to save up to 7500 measurement protocols to the Testo 440 Air Velocity and IAQ Tester’s internal memory. Using the supplied USB cable, this information can be uploaded to a computer for further processing in a CSV file. It is also possible to send saved data to print via Bluetooth and using a compatible Testo Bluetooth/ IRDA Printer (NOT included).
The Testo 440 Air Velocity and IAQ Tester is an accurate, adaptable, simple-to-use environmental tester that can be used to monitor a variety of air quality parameters in offices, production areas and storage facilities.
Testo 440 Air Velocity and IAQ Tester Key Features
- Combine with a variety of Testo probes to measure numerous parameters
- Connect up to three probes simultaneously: one Bluetooth probe, one wired probe and one temperature probe with a type-K thermocouple connector
- Automatically recognises each probe on connection and adjusts parameters accordingly
- Monitor the air quality of indoor environments such as offices, production areas and facilities
- Measure air temperature, humidity, CO₂ concentration, and turbulence
- Calculate wet bulb temperature, dew point, absolute humidity and draught risk
- Use with an OPTIONAL hot wire or vane probe (NOT included) to measure volume flow
- CO₂ concentration, air temperature and humidity are measured and indicated in parallel via the large, graphic display
- Wet bulb temperature, dew point and absolute humidity are calculated simultaneously
- When used with a turbulence probe, draught risk is determined automatically
- Use the turbulence probe to measure turbulence in accordance with EN ISO 7730/ ASHRAE 55 even in low air velocities
- Use the Bluetooth CO₂ probe to measure CO₂, temperature and humidity up to twenty metres away from the tester without using cables
- The Bluetooth probe’s handle is universal allowing the user to change the probe heads
- Measure more parameters using less equipment
- Improves the ease of testing and reduces the space required to store and transport the tester and probes
- Only the probe heads need to be sent for recalibration allowing the user to maximise the tester’s uptime
- Clearly structured measurement menu for accessing required tests quickly and easily
- Save data to the Testo 440 by pressing the button on the Bluetooth probe’s universal handle
- Program the Testo 440 to take and log measurements at specified intervals over the course of a measurement cycle
- Save up to 7500 measurement protocols to the internal memory
- Information can be uploaded to a PC via the USB cable
- Data can be processed in a CSV file on a PC
- Send saved data to print via Bluetooth and using a compatible Testo Bluetooth/ IRDA Printer (NOT included)
- An accurate, adaptable, simple-to-use environmental tester
- Can be used to monitor a variety of air quality parameters in offices, production areas and facilities
Testo Digital Bluetooth CO₂ Probe with Temperature and Humidity Sensors Description
The Testo (0632 1551) Digital Bluetooth CO₂ Probe with Temperature and Humidity Sensors can be used to conduct CO₂, temperature and humidity measurements up to twenty metres away from the Testo 440 Air Velocity and IAQ Tester. As this probe is Bluetooth-enabled, it does not require long cables to conduct these measurements, adding to its practicality and reducing the space required to store and transport the probe.
The Testo Digital Bluetooth CO₂ Probe’s universal handle includes a button which, when pressed, saves data to the Testo 440 Air Velocity and IAQ Tester via Bluetooth. It is also possible to program the Testo 440 to take and log measurements via the Testo Digital Bluetooth CO₂ Probe at specified intervals over the course of a measurement cycle.
The Testo Digital Bluetooth CO₂ Probe’s universal handle also means that it can be used with a variety of probe heads, allowing the user to conduct more tests with less equipment.
The Testo Digital Bluetooth CO₂ Probe with Temperature and Humidity Sensor is optimised for determining the following parameters:
- CO₂ concentration
- Humidity
- Air temperature
- Wet bulb temperature
- Dew point
- Absolute humidity
It includes an absolute pressure measurement for carrying out air density compensation in order to ensure measurement accuracy.
The Testo Digital Bluetooth CO₂ Probe with Temperature and Humidity Sensors is ideal for monitoring the air temperature, humidity and CO₂ concentration of indoor environments such as offices, production areas and storage facilities.
Testo (0632 1551) Digital Bluetooth CO₂ Probe with Temperature and Humidity Sensors Key Features
- Conduct cable-less CO₂, temperature and humidity measurements up to twenty metres away from the Testo 440
- Press a button on the universal handle to save measurements to the Testo 440 via Bluetooth
- Program the Testo 440 to take and log measurements via the probe at specified intervals over the course of a measurement cycle
- The universal handle enables use with a variety of probe heads
- Conduct more tests using less equipment
- Optimised for measuring CO₂ concentration, humidity, air temperature, wet bulb temperature, dew point, and absolute humidity
- Includes an absolute pressure measurement for carrying out air density compensation to ensure measurement accuracy
- Monitor the air temperature, humidity and CO₂ concentration of offices, production areas and storage facilities
Testo (0628 0152) Fixed-Wire Turbulence Probe Description
The Testo (0628 0152) Fixed-Wire Turbulence Probe has a cable length of 1.4m.
It can be used with the Testo 440 Air Velocity and IAQ Tester to measure turbulence in accordance with EN ISO 7730/ ASHRAE 55, even in low air velocities.
Furthermore, when used with the aforementioned Testo 440, the draught risk is determined automatically.
The Testo (0628 0152) Fixed-Wire Turbulence Probe is a useful addition to the Testo 440 Air Velocity and IAQ Tester as it expands the tester’s scope-for-use.
Testo (0628 0152) Fixed-Wire Turbulence Probe Key Features
- Cable length: 1.4m
- Use with the Testo 440 Air Velocity and IAQ Tester
- Measure turbulence in accordance with EN ISO 7730/ ASHRAE 55 even in low air velocities
- Determine draught risk
- Expands the Testo 440’s scope-for-use
What’s Included?
- Testo 440 Air Velocity and IAQ Tester
- Digital Bluetooth CO₂ Probe with a Temperature and Humidity Sensor
- 3x AA Batteries for the Testo 440
- USB Cable
- Calibration Protocol for the Testo 440
- 4x AA Batteries for the CO₂ Probe
- Table Stand for the CO₂ Probe
- Calibration Protocol for the CO₂ Probe
- Turbulence Probe with Fixed Cable
- Calibration Protocol for the Turbulence Probe
- Combi-Case for the Testo 440 and Multiple Probes
Testo 440 Indoor Comfort ComboKit with Bluetooth Technical Specifications
Please find below the available technical specifications for the products included in this kit.
Testo 440 Air Velocity and IAQ Tester Technical Specifications
| Temperature - NTC | |
| Measuring range | -40 to +150 °C |
| Accuracy | ±0.4 °C (-40 to -25.1 °C) |
| ±0.3 °C (-25 to +74.9 °C) | |
| ±0.4 °C (+75 to +99.9 °C) | |
| ±0.5 % of mv (Remaining Range) | |
| Resolution | 0.1 °C |
| Temperature - TC Type K (NiCr-Ni) | |
| Measuring range | -200 to +1370 °C |
| Accuracy | ±(0.3 °C + 0.3 % of mv) |
| Resolution | 0.1 °C |
| General Technical Data | |
| Weight | 250 g |
| Dimensions | 154 x 65 x 32 mm |
| Operating temperature | -20 to +50 °C |
| Product colour | black/orange |
| Connectable probes | 1 x digital probe with cable or 1 x Temperature NTC TUC, 1 x digital Bluetooth probe or testo Smart Probe, 1 x Temperature TC Type K |
| Battery type | 3 AA mignon 1.5 V |
| Battery life | 12 h (typically vane measurement) |
| Interface | Bluetooth®; USB |
| Storage temperature | -20 to +50 °C |
Testo Digital Bluetooth CO₂ Probe with Temperature and Humidity Sensors Technical Specifications
| Temperature - NTC | |
| Measuring range | 0 to +50 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Humidity - Capacitive | |
| Measuring range | 5 to 95 %RH |
| Accuracy | ±3 %RH (10 to 35 %RH) |
| ±2 %RH (35 to 65 %RH) | |
| ±3 %RH (65 to 90 %RH) | |
| ±5 %RH (Remaining Range) | |
| ±0.06 %RH/K (0 to +50 °C) | |
| Resolution | 0.1 %RH |
| Please see the additional accuracy information for humidity in the instruction manual. | |
| Absolute Pressure | |
| Measuring range | +700 to +1100 hPa |
| Accuracy | ±3.0 hPa |
| Resolution | 0.1 hPa |
| Ambient CO₂ | |
| Measuring range | 0 to 10000 ppm |
| Accuracy |
±(50 ppm + 3 % of mv) (0 to 5000 ppm) |
|
±(100 ppm + 5 % of mv) (5001 to 10000 ppm) |
|
| Resolution | 1 ppm |
| General Technical Data | |
| Storage temperature | -20 to +60 °C |
| Weight | 195 g |
| Dimensions | 295 x 50 x 40 mm |
| Operating temperature | -5 to +50 °C |
| Length probe shaft | 130 mm |
| Probe head diameter | 30 mm |
| Product colour | black/orange |
| Battery type | 4 x type AA batteries |
| Battery life | 21,5 h |
| Data transfer | Bluetooth® |
| Radio range | 20 m |
Testo (0628 0152) Fixed-Wire Turbulence Probe Technical Specifications
| Measuring Range | 0 to +5 m/s |
| 0 to +50 °C | |
| 700 to 1100 hPa | |
| Accuracy | ±(0.03 m/s + 4 % of m.v.) |
| ±0.5 °C | |
| ±3 hPa | |
| Resolution | 0.01 m/s |
| 0.1 °C | |
| 0.1 hPa | |
| Operating temperature | 0 to +50 °C |
| Storage temperature | -20 to +60 °C |
| Dimensions | 400 x 90 x 90 mm |
| Probe head diameter | Ø 820 mm |
| Weight | 250 g |
Testo Combi-Case Technical Specifications
| Weight | 1400 g |
| Dimensions | 516 x 135 x 256 mm |
| Product colour | Black |
| SKU | 05634408 |
|---|---|
| Manufacturer Part Code | 0563 4408 |
