Description

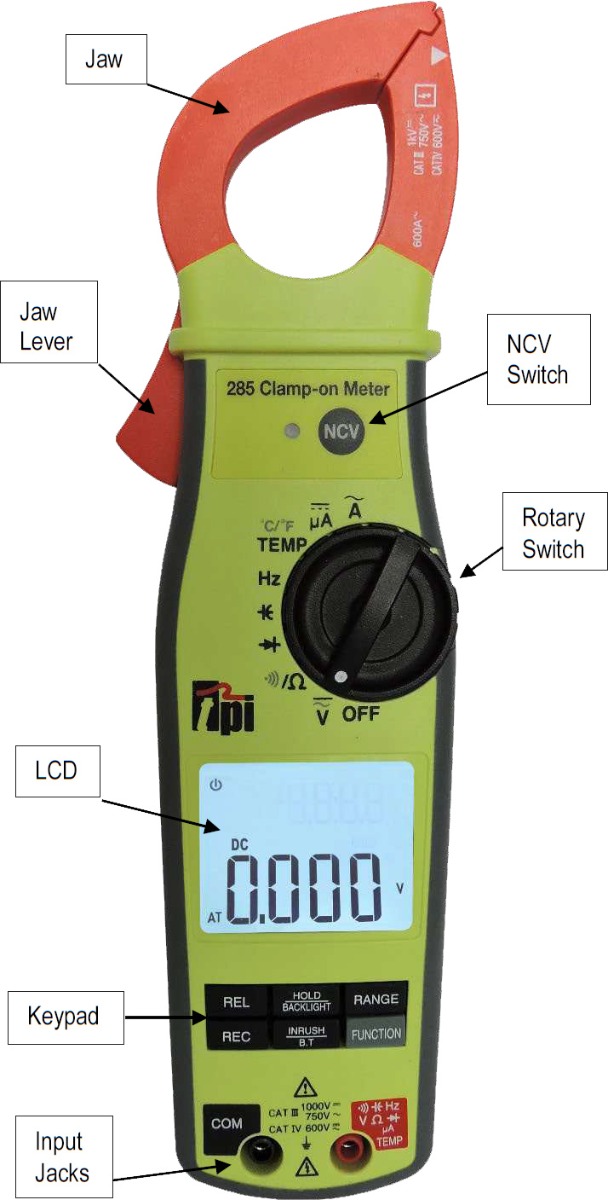

The slim design TPI 285 is a hand-held, auto-ranging clamp-on DMM with Bluetooth output for use with the TPI View app. Backlit dual display, True RMS response, Frequency with Duty Cycle, Min/Max/Avg, Temperature, Inrush Current measurement, Capacitance, DC microamps, and Non-Contact Voltage detection are just a few of the features of the 285.
The TPI View app can be used with the 285 to store measurements to jobs, create and email test reports, view live readings from a safe distance, or print measurements to the optional A711BT printer.
Key Features
- True RMS for accurate voltage and amperage measurements
- In-rush current measurement to capture motor start-up current
- Non-contact voltage detection through the jaw
- Bluetooth LE communication
- Use with TPI View app to display live readings, save measurements, create and email reports with GPS-tagged date and time
- CATIV 600V rated for safety
Downloads
Datasheets
Manuals & Guides
Tech Specs
Display | 6000 count dual display LCD with backlight |
---|---|
Max Voltage (Between an input terminal and ground) | 1000VDC / 750VAC |
Operating Temperature | 32°F to 113°F (0°C to 40°C) |
Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
Relative Humidity | 80% non-condensing |
Altitude | 6,562 feet maximum (2,000 meters maximum) |
IP Rating | IPX0 per IEC 60529 |
Battery Type | 9V Alkaline (NEDA 1604) |
Battery Life | Approximately 90hrs (no backlight or Bluetooth) |
Size | 9.9” x 2.5” x 1.4” (252mm x 64mm x 36mm) |
Weight | 0.79 lb (358g) |
Bluetooth LE | 4.2 |
0 Reviews
Overall Rating
Additional Information
SKU | TPI-285 |
---|---|
Manufacturer Part Code | 285 |
