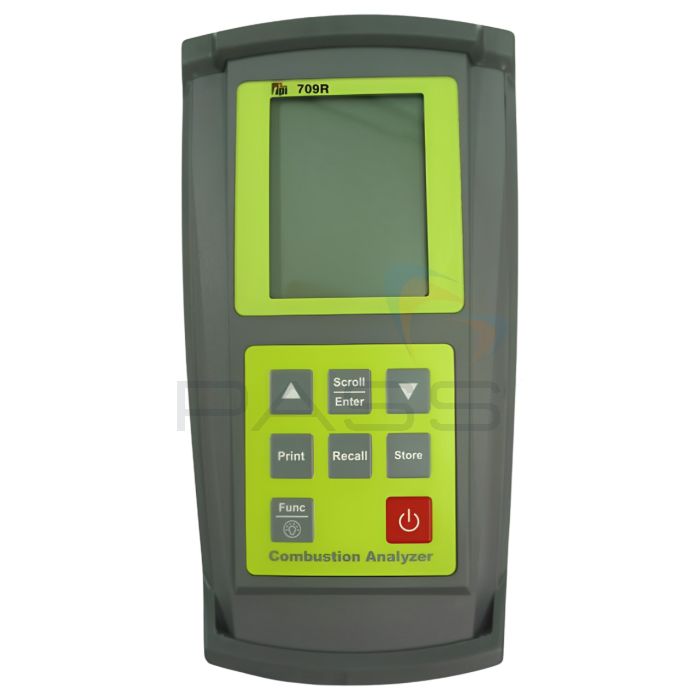

TPI 709R Combustion Efficiency Analyser - Standard Kit

TPI 709R Combustion Efficiency Analyser - Standard Kit
sku: TPI-709R-Kit

Free UK Delivery On Orders Over £40
  • Several kit options available
  • Accurate combustion analysis
  • Fast response for easy testing

RRP: £360.00
£310.00 Incl. VAT £372.00
Members earn 620 points

Do you have a question or found it cheaper? Contact us

  • UNI-T UT107 Handheld Multi-Purpose Multimeter
    £39.00
  • C.K. Tools T2231A Pipe Cutters (3-30mm)
    £15.67
Description

TPI 709R Combustion Efficiency Analyser - Standard Kit Details

Simple to use, low cost and highly responsive, the TPI 709R is a rechargeable combustion analyser suitable for testing flue gases in both gas and oil fired equipment such as furnaces and condensing boilers.

Designed to speed up testing, the 709R has a fast purging system and allows fuel selection during startup to prevent time wasteage. It'll also remember the last fuel you used automatically and up to ten fuels can be selected: natural gas, LPG, light oil, heavy oil, bitumious coal, anthracite coal, coke, butane, wood and bagasse.

The analyser has a built-in differential manometer with 0.001" H20 resolution and a built-in differential thermometer. This allows flue pressure and temperature to be calculated and displayed on the tester. It can also test combustion efficiency, CO2 and CO content and detects combustible gasses

TPI 709R Combustion Efficiency Analyser Key Features

  • Fully rechargeable batteries
  • Built-in differential manometer with 0.001" H20 resolution
  • High accuracy calculations of combustion efficiency
  • Pump-driven sensor ensures fast response
  • Ten selectable fuelds: natural gas, LPG, light oil, heavy oil, bitunimous coal, anthracite coal, coke, butane, wood and bagasse
  • Built-in differential thermometer
  • Memory - can store up to 50 readings
  • Large-size, easy-to-read backlit display
  • Measure CO, O2 and stack temperature
  • PC communication
  • Combustible gas detection

What's Included?

The following products are included in the standard kit version of the TPI 709R.

  • TPI 709R Combustion Efficiency Analyser
  • Rubber Boot
  • Battery Charger
  • Soft Carrying Case
  • Flue Sampling Probe
  • In-Line Filter Assembly on Flue Probe
  • Temperature Probe
  • Mini Pump Protection Filter Assembly and Spare Filters
  • Exhaust Spigot (Removable)
  • Instruction Manual

TPI 709R Kits

Get more from your TPI 709R with these great value kits!

TPI 709R Kit 1

Kit 1

Start cataloguing your data with this printer bundle package!

Comes with all standard accessories and:

  • TPI Infrared Printer
 TPI 709R Oil Kit

Oil Kit

Includes everything you'll need for testing oil.

Comes with all standard accessories and:

  • TPI Infrared Printer
  • Smoke Pump
  • Oil Filter
 TPI 709R Kit 2

Kit 2

The improved version of bundle 1, this kit allows you to test pipe temperatures.

Includes all standard accessories and:

  • TPI Infrared Printer
  •  2 x Pipe Clamp Temperature Probes



 TPI 709R Kit 3

Kit 3

Everything in bundle 2, plus a CPA1 cooker probe kit.

Comes with manufacturer standard accessories and:

  • TPI Infrared Printer
  • 2 x Pipe Clamp Probes
  • CPA1 Cooker Probe Kit
 TPI 709R Kit 4

Kit 4

 Measure everything in a boiler and detect gas in air with this kit!

Includes all standard accessories and:

  • IR Printer
  • 2 x Pipe Clamp Probes
  • TPI 719 Gas Sniffer
 TPI 709R Kit 5

Kit 5

The 709R's best overall kit.

Includes all standard accessories and:

  • IR Printer
  • 2 x Pipe Clamp Probes
  • CPA1 Cooker Probe
  • TPI 719 Gas Sniffer
Technical Specs

Part Code: 709R-Kit

TPI 709R Technical Specifications

Carbon Monoxide (CO)
 Measurement
 Range 0 to 10,000 ppm
 Resolution 1 ppm
 Accuracy +/-5ppm or 5% of reading whichever is greater
 Oxygen (02) Measurement  Range 0 to 25%
 Resolution 0.1%
 Accuracy ±0.3%
 Carbon Dioxide (CO2)  Range 0 to 25%
 Resolution 0.1%
 Calculated Value
 Nitric Oxide Measurement  N/A
 NOX Measurement  N/A
 Temperature Measurement  Range -40 to 1472°F, or -40 to 800°C
 Resolution 1°F or °C
 Accuracy (K-type) ±0.3%, ±2°F or ±1°C
 Draft/Pressure
 Measurement
 Selectable Ranges mBar,kPa, and inH2O
 Ranges -150 mBar to +150 mBar -15 kPa to +15 kPa -60
 inH2O to +60 in H20
 Resolution 0.001 inH2O
 Accuracy ±0/5% fsd
 Gross/Net Efficiency  Range 0 to 100%
 Resolution 0.1%
 Calculated Value
 CO/CO2 Ratio  Range 0 to 0.999
 Resolution 0.001
 Calculated Value
 Operating Temperature  14°F to 122°F (-10°C to 50°C)
 Battery Type  Rechargeable Batteries
 Selectable Fuels  Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal,
 Anthracite Coal, Coke, Butane, Wood, Bagasse
 Display Type  Backlit 3 line LCD
 Data Storage  50 Locations
 Data Logging  N/A
 Print Capability  Yes, via optional IR printer (A740)
 PC Communication  N/A
 Date and Time Function  24 Hour Real Time Clock
 Dimensions  200mm x 90mm x 60mm
 Weight  500g
 Conformity  BS7927 (and the draft BS7967)
