TPI's best overall 709R kit, this bundle pack comes with a 709R analyser, all standard accessories and an infrared printer, 2 x pipe clamp temperature probes, CPA1 cooker probe kit and TPI 719 gas sniffer!

A must-have for professional boiler installers, the 709R can be used to commission, install and maintain boilers powered by multiple fuel types (10 in total). It can measure a wide variety of different parameters, including excess air, CO/CO2 ratio, perform let-by/tightness testing and even has a built-in differential manometer for pressure testing.

The analyser also comes with built-in memory (up to 99 records) and can also send information over infrared to the included printer for quick and easy printing of testing records.

TPI 709R Combustion Efficiency Analyser Key Features

  • Fully rechargeable batteries
  • Built-in differential manometer with 0.001" H20 resolution
  • High accuracy calculations of combustion efficiency
  • Pump-driven sensor ensures fast response
  • Ten selectable fuelds: natural gas, LPG, light oil, heavy oil, bitunimous coal, anthracite coal, coke, butane, wood and bagasse
  • Built-in differential thermometer
  • Memory - can store up to 50 readings
  • Large-size, easy-to-read backlit display
  • Filtering of nitric oxide, nitrogen dioxide and NOX to prevent cross sensitivity errors
  • Measure CO, O2 and stack temperature
  • PC communication
  • Combustible gas detection

What's Included?

The following products are included in the standard kit version of the TPI 709R.

  • TPI 709R Combustion Efficiency Analyser
  • Rubber Boot
  • Battery Charger
  • Soft Carrying Case
  • Flue Sampling Probe
  • In-Line Filter Assembly on Flue Probe
  • Temperature Probe
  • Mini Pump Protection Filter Assembly and Spare Filters
  • Exhaust Spigot (Removable)
  • Instruction Manual

This kit also comes with:

  • Infrared Printer
  • 2 x Temperature Pipe Clamp Probes
  • CPA1 Cooker Probe Kit
  • TPI 719 Gas Sniffer (Gas Detector)

TPI 709R Kits

Get more from your TPI 709R with these great value kits!

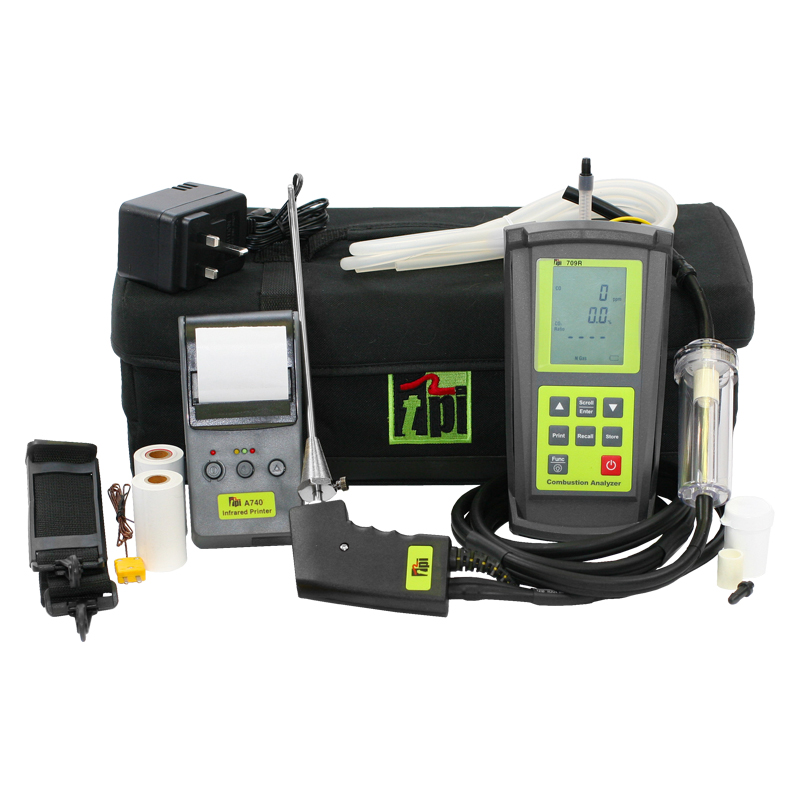

TPI 709R Kit 1

Kit 1

Start cataloguing your data with this printer bundle package!

Comes with all standard accessories and:

  • TPI Infrared Printer
 TPI 709R Oil Kit

Oil Kit

Includes everything you'll need for testing oil.

Comes with all standard accessories and:

  • TPI Infrared Printer
  • Smoke Pump
  • Oil Filter
 TPI 709R Kit 2

Kit 2

The improved version of bundle 1, this kit allows you to test pipe temperatures.

Includes all standard accessories and:

  • TPI Infrared Printer
  •  2 x Pipe Clamp Temperature Probes

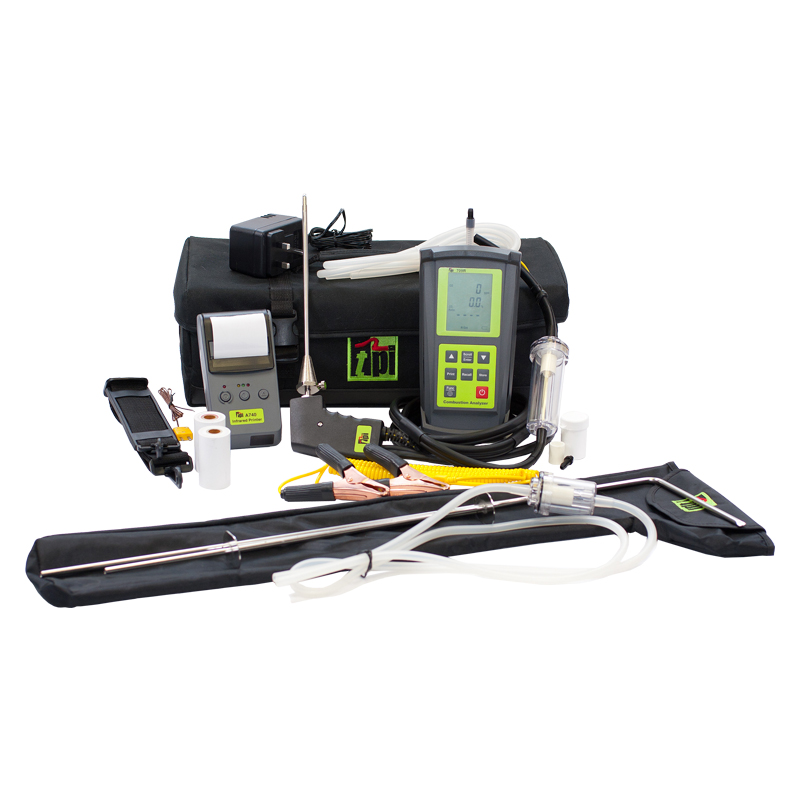

 TPI 709R Kit 3

Kit 3

Everything in bundle 2, plus a CPA1 cooker probe kit.

Comes with manufacturer standard accessories and:

  • TPI Infrared Printer
  • 2 x Pipe Clamp Probes
  • CPA1 Cooker Probe Kit

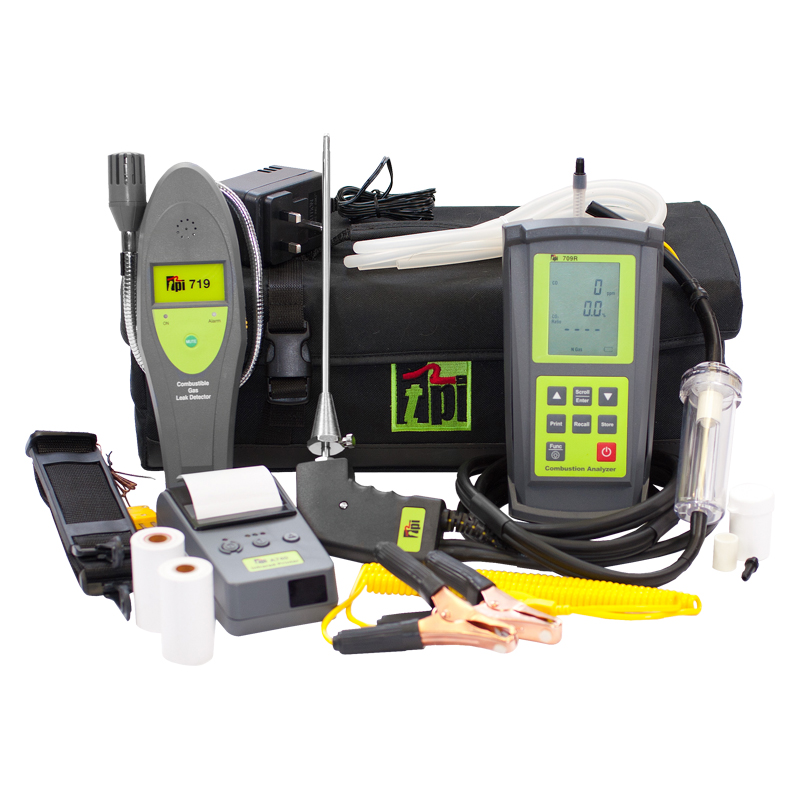

 TPI 709R Kit 4

Kit 4

 Measure everything in a boiler and detect gas in air with this kit!

Includes all standard accessories and:

  • IR Printer
  • 2 x Pipe Clamp Probes
  • TPI 719 Gas Sniffer

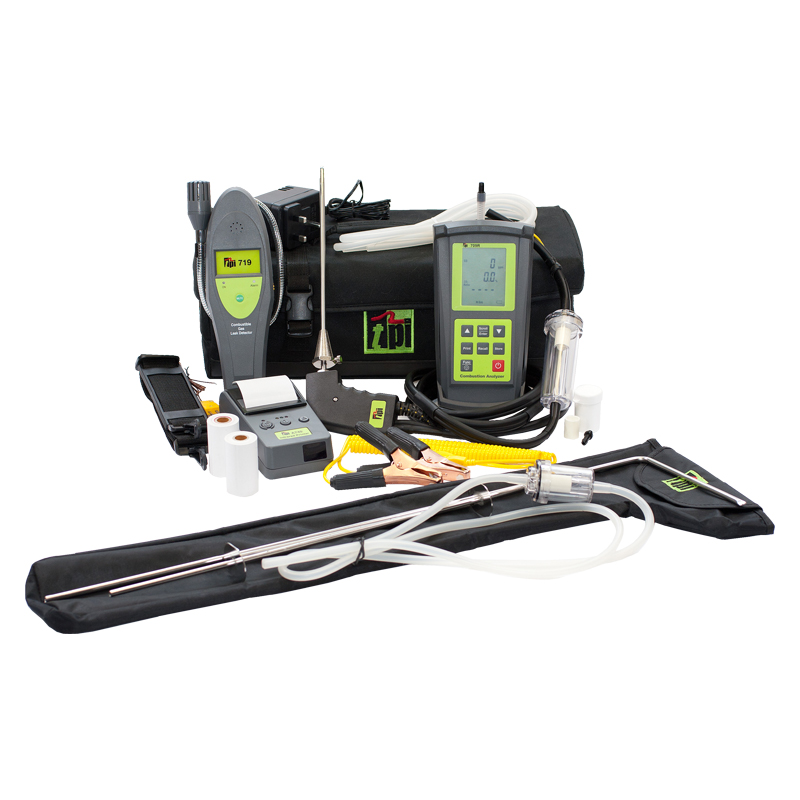

 TPI 709R Kit 5

Kit 5

The 709R's best overall kit.

Includes all standard accessories and:

  • IR Printer
  • 2 x Pipe Clamp Probes
  • CPA1 Cooker Probe
  • TPI 719 Gas Sniffer
Accessories related to this product:
  1. TPI FK12M Pointed Tip Heavy Duty Penetration Probe - K Type
    £32.40 £27.00
  2. TPI CK13M Heavy-Duty Type K Surface Temperature Probe
    £32.40 £27.00
  3. TPI GK18M Armoured Caged Air Temperature Probe w/ Rack Clip
    £18.36 £15.30
  4. TPI FK23M Air/Liquid Temperature Probe w/ Clip
    £48.60 £40.50
  5. TPI CK18M Flat Surface Temperature Probe - K Type
    £70.20 £58.50
  6. TPI GK13M FEP-Insulated Beaded Tip Probe
    £8.64 £7.20
  7. TPI FK13M 8" Stem , Heavy Duty "K" type Immersion Probe for use with HK11M handle
    £11.88 £9.90
  8. TPI CK14M Heavy-Duty K Type Right Angled Surface Temperature Probe
    £35.10 £29.25
  9. TPI FK24M Heavy-Duty T-Handle Long Stem Penetration Probe
    £54.00 £45.00
  10. TPI CK21M "K" Type Pipe Clamp Temperature Probe
    £14.86 £12.38
  11. TPI CK11M K-Type Contact Surface Temperature Probe
    £29.70 £24.75
  12. TPI GK14M Rigid Stem Hooded Exposed Tip Temperature Probe
    £24.30 £20.25
  13. TPI FK14M Chisel Tip Penetration Temperature Probe - K Type
    £24.30 £20.25
  14. TPI CK16M Heavy Duty Contact Surface Temperature Probe
    £32.34 £26.95
  15. TPI GK11M Beaded Tip Temperature Probe - Type K
    £6.48 £5.40
  16. TPI FK11M Chisel Tip Penetration Temperature Probe - K Type
    £23.94 £19.95
  17. TPI CK12M K-Type Right-Angled Surface Temperature Probe
    £29.70 £24.75
  18. TPI GK17M Caged Air Temperature Probe
    £24.30 £20.25
  19. TPI FK21M Tapered Chisel Tip Penetration Temperature Probe - Type K
    £24.30 £20.25
  20. TPI CK17M 45 Degree Angle Surface Temperature Probe - K Type
    £37.80 £31.50
  21. TPI GK12M General Purpose Rack Clip Beaded Temperature Probe
    £10.80 £9.00
  22. TPI 719 Combustible Gas Leak Detector (30ppm Sensitivity)
    £75.60 £63.00
Part Code709R-Kit 5

TPI 709R Technical Specifications

Carbon Monoxide (CO)
 Measurement
 Range 0 to 10,000 ppm
 Resolution 1 ppm
 Accuracy +/-5ppm or 5% of reading whichever is greater
 Oxygen (02) Measurement  Range 0 to 25%
 Resolution 0.1%
 Accuracy ±0.3%
 Carbon Dioxide (CO2)  Range 0 to 25%
 Resolution 0.1%
 Calculated Value
 Nitric Oxide Measurement  N/A
 NOX Measurement  N/A
 Temperature Measurement  Range -40 to 1472°F, or -40 to 800°C
 Resolution 1°F or °C
 Accuracy (K-type) ±0.3%, ±2°F or ±1°C
 Draft/Pressure
 Measurement
 Selectable Ranges mBar,kPa, and inH2O
 Ranges -150 mBar to +150 mBar -15 kPa to +15 kPa -60
 inH2O to +60 in H20
 Resolution 0.001 inH2O
 Accuracy ±0/5% fsd
 Gross/Net Efficiency  Range 0 to 100%
 Resolution 0.1%
 Calculated Value
 CO/CO2 Ratio  Range 0 to 0.999
 Resolution 0.001
 Calculated Value
 Operating Temperature  14°F to 122°F (-10°C to 50°C)
 Battery Type  Rechargeable Batteries
 Selectable Fuels  Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal,
 Anthracite Coal, Coke, Butane, Wood, Bagasse
 Display Type  Backlit 3 line LCD
 Data Storage  50 Locations
 Data Logging  N/A
 Print Capability  Yes, via optional IR printer (A740)
 PC Communication  N/A
 Date and Time Function  24 Hour Real Time Clock
 Dimensions  200mm x 90mm x 60mm
 Weight  500g
 Conformity  BS7927 (and the draft BS7967)
