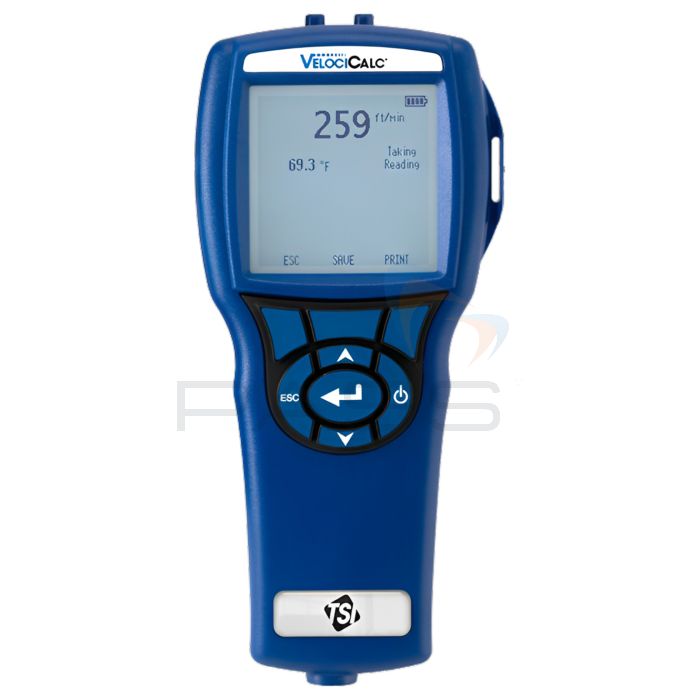

TSI VelociCalc 9565 Multi-Function Ventilation Meter
- Two models available
- Large graphic display
- Multiple data logging formats
SKU
TSI-9565
The TSI 9565 delivers precise airflow, environmental, and pressure measurements. It has an over-moulded case with an integrated probe holder and a keypad lockout. A menu-driven interface simplifies the operation with step-by-step instructions and multi-language support, helping users to set up, operate, and perform field calibrations quickly.
The TSI 9565-A includes a differential pressure sensor and an articulated probe (Model 966), and the TSI 9565-AC comes equipped with a differential pressure sensor and a straight telescopic probe (Model 964-AC) calibrated to accredited standards. Both instruments measure velocity, temperature, humidity, differential pressure, and barometric pressure, with additional inputs for two K-alloy thermocouples. Data logging capabilities further enhance their functionality.
- HVAC testing and balancing
- Clean room testing
- Biological safety cabinet and laboratory fume hood testing
- HVAC commissioning and troubleshooting
- IAQ investigations
- Thermal comfort studies
- Ventilation evaluations
- Process airflow testing
- Includes differential pressure sensor
- Best-in-class air velocity accuracy
- Accommodates up to two K-alloy thermocouples
- Large graphic display
- Displays up to five measurements simultaneously
- On-screen messages and instructions
- Program for local language
- Intuitive menu structure allows for ease of use and setup
- Multiple data logging formats
- Bluetooth communications for transferring data or remote polling
- Includes TrakPro and LogDat2 downloading software with USB cable
What's Included?
- TSI 9565-A
- 9565 instrument
- Articulated probe (Model 966)
- Static pressure probe (1)
- Tubing, 8 ft. (2.4 m)
- USB cable with LogDat2™ and TrakPro™ downloading software
- Hard carrying case
- Four alkaline batteries
- Operation and service manuals
- TSI 9565-AC
- 9565 instrument
- Straight telescopic probe (Model 964-AC)
- Static pressure probe (1)
- Tubing, 8 ft. (2.4 m)
- USB cable with LogDat2™ and TrakPro™ downloading software
- Hard carrying case
- Four alkaline batteries
- Operation and service manuals
- ISO Accredited calibration certificate
Product Range
- TSI 9565-A Multi-Function Ventilation Meter with Differential Pressure Sensor and Articulated Probe Model 966
- TSI 9565-AC Multi-Function Ventilation Meter with Differential Pressure Sensor and Straight Probe Model 964-AC with Accredited Calibrations
Technical Information
Specification
| Velocity (Pitot or Airflow Probe for Models 9565-NB, 9565-A-NB, 9565-P-NB) | |
|---|---|
| Range1 | 250 to 15,500 ft/min (1.27 to 78.7 m/s) |
| Accuracy2 | ±1.5% at 2,000 ft/min (10.16 m/s) |
| Resolution | 1 ft/min (0.01 m/s) |
| Duct Size | |
| Dimensions | 1 to 500 inches in increments of 0.1 in. (2.5 to 1,270 cm in increments of 0.1 cm) |
| Volumetric Flow Rate | |
| Range | Actual range is a function of velocity, pressure, duct size, and K factor |
| Static/Differential Pressure (Models 9565, 9565-NB, 9565-A, 9565-A-NB, 9565-P, 9565-P-NB) | |
| Range3 | -15 to +15 in. H₂O (-28.0 to +28.0 mm Hg, -3,735 to +3,735 Pa) |
| Accuracy | ±1% of reading ±0.005 in. H₂O (±0.01 mm Hg, ±1 Pa) |
| Resolution | 0.001 in. H₂O (0.1 Pa, 0.01 mm Hg) |
| Barometric Pressure | |
| Range | 20.36 to 36.648 in. Hg (517.15 to 930.87 mm Hg) |
| Accuracy | ±2% of reading |
| Instrument Temperature Range | |
| Operating (Electronics) | 40 to 113°F (5 to 45°C) |
| Storage | -4 to 140°F (-20 to 60°C) |
| Data Storage Capabilities | |
| Range | 26,500+ samples and 100 test IDs |
| Logging Interval | 1 second to 1 hour |
| Time Constant | User selectable |
| External Meter Dimensions | 3.8 in. x 8.3 in. x 2.1 in. (9.7 cm x 21.1 cm x 5.3 cm) |
| Meter Weight with Batteries | 0.8 lbs. (0.36 kg) |
| Power Requirements | Four AA-size batteries or AC adapter |
| 1 Pressure velocity measurements are not recommended below 1,000 ft/min (5 m/s) and are best suited to velocities over 2,000 ft/min (10.00 m/s). The range can vary depending on barometric pressure. 2 Accuracy is a function of converting pressure to velocity. Conversion accuracy improves when actual pressure values increase. 3 Overpressure range = 190 in. H2O, 48 kPa (360 mmHg). |
|
Document Downloads
TSI 9565 VelociCalc Multi-Function Ventilation Meter Datasheet
TSI 9565 VelociCalc Multi-Function Ventilation Meter User Manual
