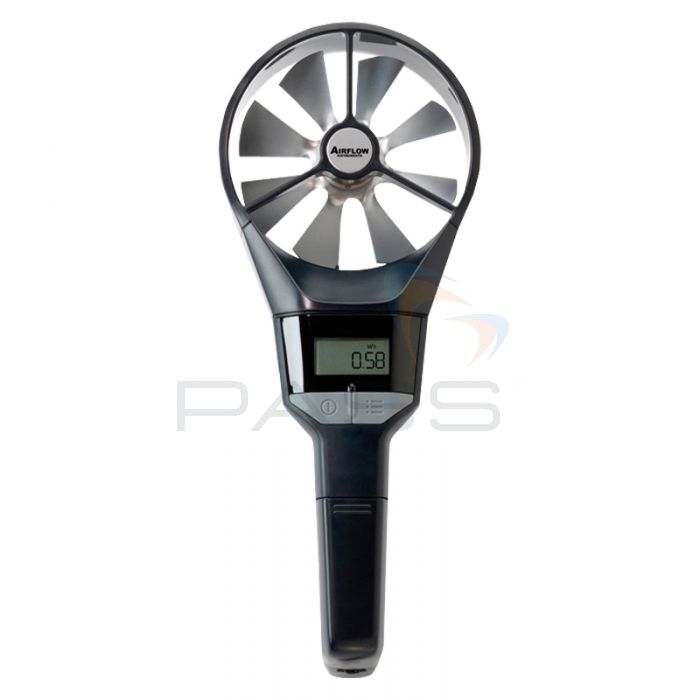

TSI Airflow LCA301 Rotating Vane Anemometer

The TSI Airflow LCA301 Rotating Vane Anemometer is a lightweight, robust and easy-to-use gauge capable of measuring air velocity and air temperature, and calculating volumetric flow rate. To this end, it features the following measurement ranges:

  • Air velocity: 0.25 to 30 m/s (50 to 6000 ft/min)
  • Air temperature: 5 to 45°C (40 to 113°F)

The TSI Airflow LCA301 Rotating Vane Anemometer can be set to display readings in either metric or imperial units and will perform automatic averaging of air velocity. Additionally, this airspeed gauge does not require density correction factors.

The TSI Airflow LCA301 Rotating Vane Anemometer can be used to perform measurements at ducts 0.00399m² to 90m² (0.043ft² to 900ft²) in size. Moreover, the TSI Airflow LCA301 Rotating Vane Anemometer’s reversible 100mm head enables it to take measurements at supply and extract grilles.

Also expanding this gauge’s scope for use is its compatibility with TSI’s Aircone Flow Hoods (NOT includeded). These aircone flow hoods are available in rectangular and circular designs and are particularly useful for performing measurements at small grilles. Both shapes can be used with the TSI Airflow LCA301 Rotating Vane Anemometer to measure volumetric flow at grilles and diffusers in l/s, m³/h or ft³/min. Additionally, TSI’s Aircone Flow Hoods can be used with the TSI Airflow LCA301 Rotating Vane Anemometer to facilitate quick and accurate measurements of air volume.

Furthermore, using TSI Airflow LCA301 Rotating Vane Anemometer with the TSI Rectangular Aircone Flow Hood (NOT included) allows the user to meet HM Government Building Regulations (2010).

The TSI Airflow LCA301 Rotating Vane Anemometer is an easy-to-use, accurate and reliable air velocity/ temperature gauge suitable for HVAC commissioning at grilles, filters and kitchen exhausts.

TSI Airflow LCA301 Rotating Vane Anemometer Key Features

  • A lightweight, robust and easy-to-use gauge
  • Measure air velocity and air temperature and calculate volumetric flow rate
  • Air velocity: 0.25 to 30 m/s (50 to 6000 ft/min)
  • Air temperature: 5 to 45°C (40 to 113°F)
  • Displays readings in metric or imperial units
  • Automatic averaging of air velocity
  • Does not require density correction factors
  • Perform measurements at ducts 0.00399m² to 90m² (0.043ft² to 900ft²) in size
  • Reversible 100mm head enables measurements to be taken at supply and extract grilles
  • Compatible with TSI’s Aircone Flow Hoods (NOT included)
  • Easy-to-use, accurate and reliable air velocity/ temperature gauge
  • Ideal for HVAC commissioning at grilles, filters and kitchen exhausts

What’s Included?

  • TSI Airflow LCA301 Rotating Vane Anemometer
  • 9V Alkaline Battery
  • Operations Manual
  • Calibration Certificate

TSI Airflow LCA301 Rotating Vane Anemometer Technical Specifications

Velocity
Range 0.25 to 30 m/s (50 to 6,000 ft/min)
Accuracy ±1.0% of reading ±0.02 m/s (±4 ft/min)
Resolution 0.01 m/s (1 ft/min)
Duct Size 0.00399 - 90 m2 (0.043 - 900 ft2)
Volumetric Flow Rate  Actual range is a function of velocity and duct area
Resolution <100; 0.1 l/s, 0.1 m3/hr, 0.1 ft3/min
Temperature
Range 5 to 45°C (40 to 113°F)
Accuracy ±1.0°C (±2.0°F)
Resolution  0.1°C (1°F)
Instrument Temperature Range
Operating 5 to 45°C (40 to 113°F)
Storage -20 to 60°C (-4 to 140°F)
External Meter Dimensions 1.2 cm x 28 cm x 6.5 cm (4.5 in. x 11 in. x 2.6 in.)
Meter Weight with batteries 329 g (11.6 oz.)
Power Requirements Four AA-size batteries or AC adapter
