TSI Airflow PVM6 Volume & Pressure Micromanometer

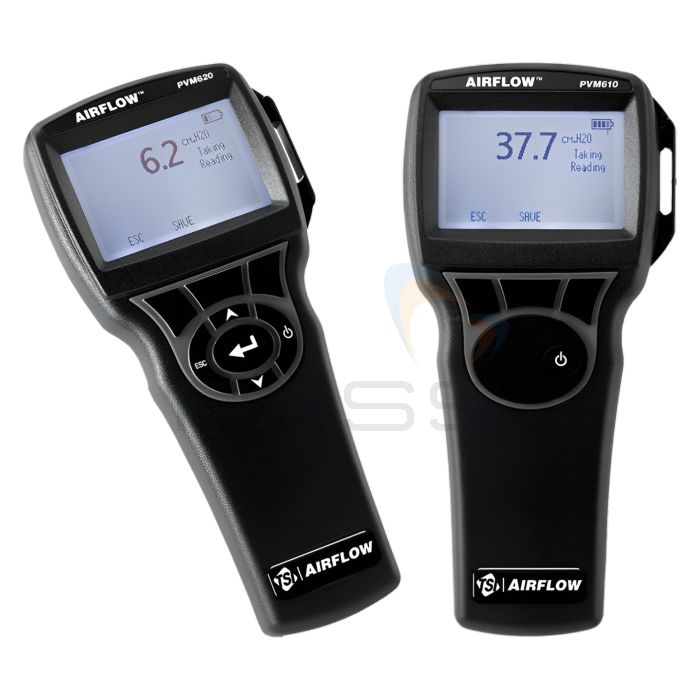

TSI PVM610 & PVM620 Airflow Volume & Pressure Micromanometers

Volumetric flow rate
Two models available
K factor

SKU

TSI-PVM6

View All Anemometers & Airflow Meters

Description Offers Technical Info Reviews

These TSI micromanometers measure and monitor airflow and pressure. The PVM610 measures differential and static pressure and velocity using a pitot tube. It does not include features such as sample statistics, volumetric flow rate, or data logging capabilities. The PVM620 includes sample statistics and a volumetric flow rate. It also has data logging software (LogDat2), a K factor, and the ability to measure actual and standard velocity with a variable time constant.

Key Features

PVM620 and PVM610
- Measures differential and static pressure from -3735 to 3735 Pa
- Calculates and displays velocity when using a Pitot tube
PVM620
- Calculates volumetric flow rate in duct from velocity and user-input duct size and shape
- Records data points in duct traverse using sampling function
- Data logs up to 12,700 samples and 100 test IDs with time and date stamp
- Differential and static pressure
- Velocity with pitot tube
- Calibration Certificate
- Differential and static pressure
- Velocity with pitot tube
- Calibration Certificate
- Sample statistics
- Volumetric flow rate
- Actual and standard velocity
- Variable time constant
- LogDat2 data logging software
- K factor

Feature	PVM610	PVM620
Differential and static pressure	+	+
Velocity with pitot tube	+	+
Calibration Certificate	+	+
Sample statistics		+
Volumetric flow rate		+
Actual and standard velocity		+
Variable time constant		+
LogDat2 data logging software		+
K factor		+

What's Included?

PVM610
- Instrument
- Hard carrying case
- Four alkaline batteries
- Operation and service manual

PVM620
- Instrument
- Hard carrying case
- Four alkaline batteries
- Operation and service manual
- Calibration certificate
- (2)1.2-m rubber tubes
- Static pressure tip
- LogDat2 Downloading Software and USB cable

Product Range

TSI Airflow PVM610 Volume & Pressure Micromanometer, Basic
TSI Airflow PVM620 Volume & Pressure Micromanometer, Advanced

£460.00

£552.00 inc vat

Free Delivery*

Free Tyre Inflator (Spend £1000+) Find Out More

Available Models Select An Option

Basic PVM610 £460.00 Typically 1-6 Days Advanced PVM620 £690.00 Typically 1-6 Days

60 Days Return

Offers

Technical Information

Specification

		PVM610	PVM620
Static/Differential Pressure	Range¹	-28.0 to +28.0 mm Hg, -3735 to +3735 Pa (-15 to +15 in. H2O)
	Accuracy	±1% of reading ±1 Pa (±0.01 mm Hg, ±0.005 in. H2O)
	Resolution	0.1 Pa, 0.01 mm Hg (0.001 in. H2O)
Velocity from a Pitot Tube	Range²	1.27 to 78.7 m/s (250 to 15,500 ft/min)
	Accuracy³	±1.5% at 10.16 m/s (2,000 ft/min)
	Resolution	0.1 m/s (1 ft/min)
Duct Size		N/A	2.5 to 1270 cm in increments of 0.1 cm (1 to 500 inches in increments of 0.1 in.)
Volumetric Flow Rate		N/A	Actual range is a function of velocity, pressure, duct size, and K factor
Instrument Temperature Range (Operating)		5 to 45°C (40 to 113°F)
Instrument Temperature Range (Storage)		-20 to 60°C (-4 to 140°F)
Data Storage Capabilities		N/A	12,700+ samples and 100 test IDs
Logging Interval		N/A	From 1 second to 1 hour
Time Constant		N/A	User selectable
External Meter Dimensions		8.4 cm x 17.8 cm x 4.4 cm (3.3 in. x 7.0 in. x 1.8 in.)
Meter Weight with Batteries		0.6 lbs (0.27 kg)
Power Requirements		Four AA-size batteries or optional AC adapter
¹Overpressure range = 7 psi (190 in. H2O, 360 mmHg, 48 kPa). ² Pressure velocity measurements are not recommended below 1000 ft/min (5 m/s). ³ Accuracy is a function of converting pressure to velocity. Conversion accuracy improves when actual pressure values increase.
