Universal Square-Edge Miniature Circuit Breaker Lockout D

Need a quick way to lockout your miniature circuit breakers? This lockout fits snugly around an MCB, preventing operation.

With a built-in square edge, this lockout fits flush against an MCB and remains fixed in place once installed. Installation is easy - just slide on, adjust the screw inside the lockout using a screwdriver and attach a padlock through the hole at the top.

There are several versions of this product available. This version - D - comes with a square edge. We also stock the following variations:

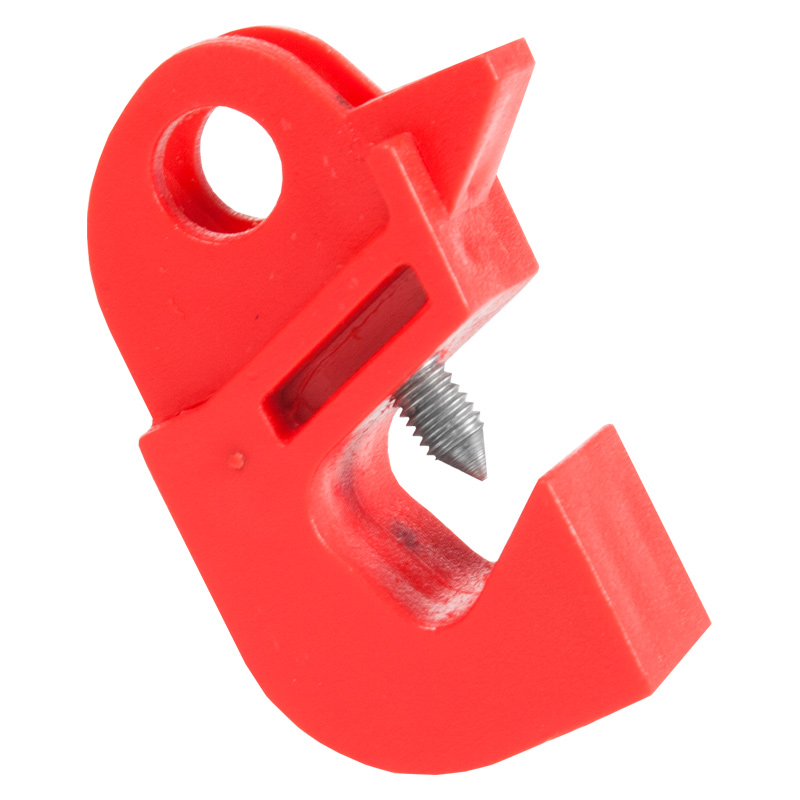

A		Rounded edge with triangle tail

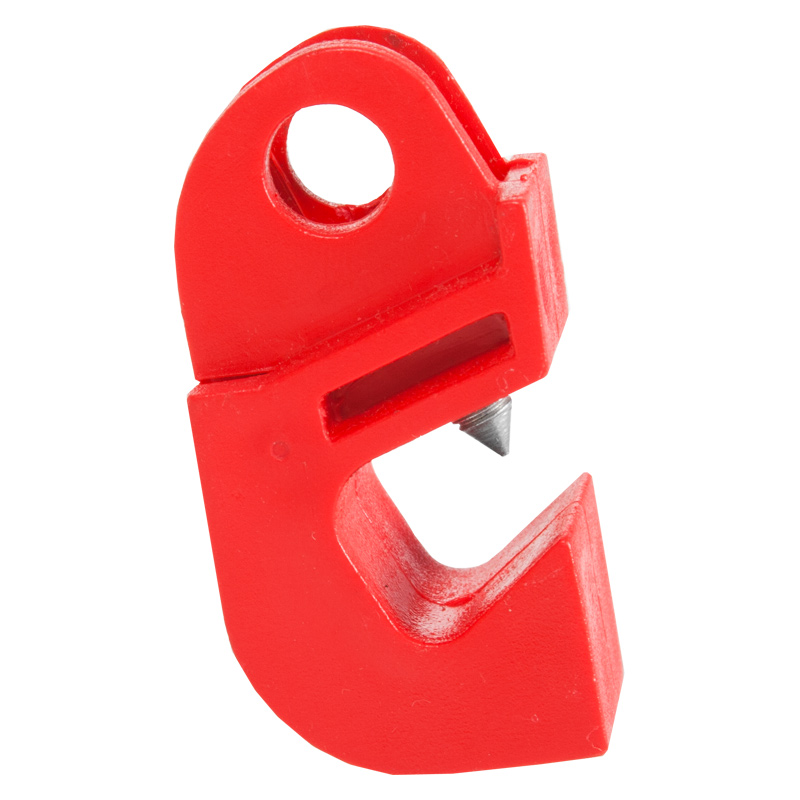

B		Identical to version A expect it doesn't have a tail

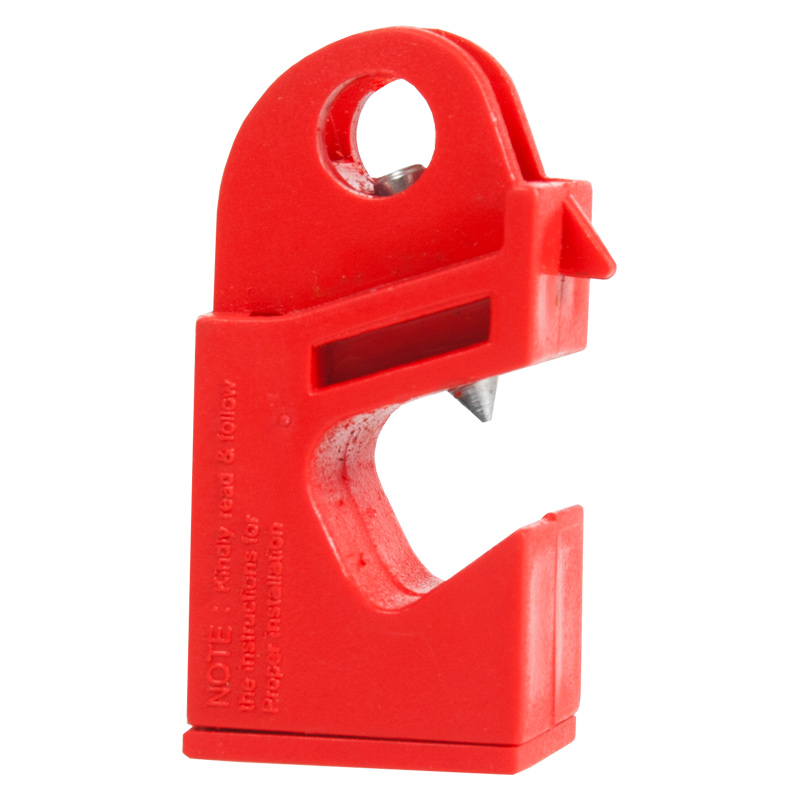

C		Square edge with triangle tail

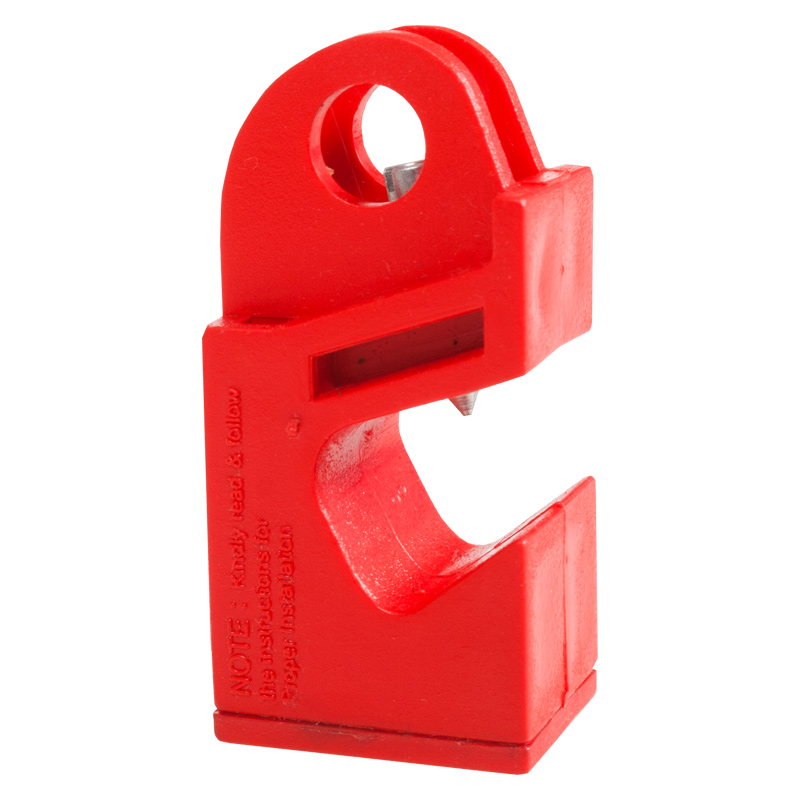

D		Identical to version C but without the tail

Key Features

• Safe and effective way of locking out miniature circuit breakers
• Easy to install - just slide, tighten the screw with a screwdriver and attach a padlock
• Suitable for use on single and multi-pole breakers
• High quality design

Dimensions: 5.5cm (L) x 1.8cm (W) x 2.5cm (D)
