Wöhler VIS 200 Visual Inspection Service Camera

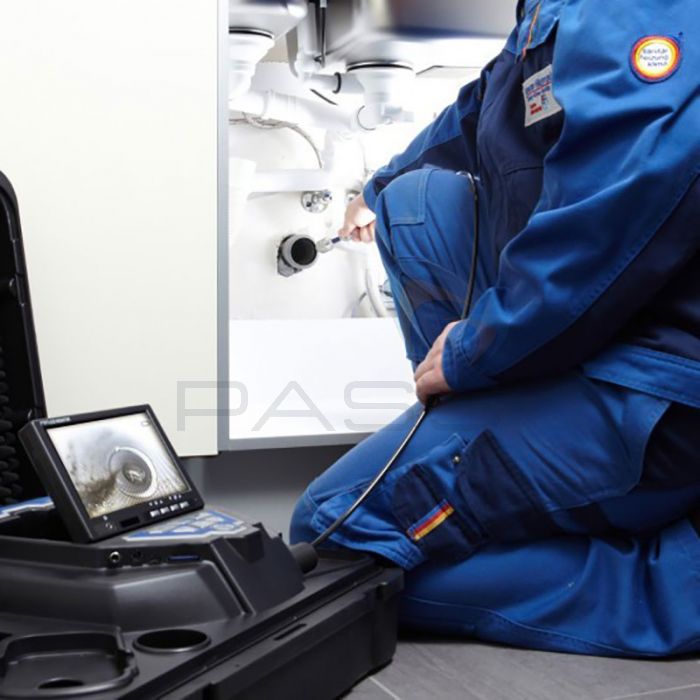

The Wöhler VIS 200 Visual Inspection Service Camera is a colour camera that can be used to inspect pipes with a diameter of 40mm+. It is suitable for finding and assessing damage in wastewater pipes, downpipes, ventilation lines and flue gas lines (max Ø 125mm). The Wöhler VIS 200 Visual Inspection Service Camera can also be used to inspect hollow spaces.
The Wöhler VIS 200 Visual Inspection Service Camera is waterproof, compact and flexible. Its light-sensitive camera head with a diameter of 26mm can be manoeuvred through bends easily. The camera head also features a powerful, integrated light for illuminating the work area.
The two versions of the Wöhler VIS 200 Visual Inspection Service Camera differ only in regard to the lengths of their push rods; please see the table below for further information.
| SKU | Name | Length of Push Rod |
| WO8992 | Wöhler VIS 200 Camera with 20m Push Rod | 20m |
| WO5702 | Wöhler VIS 200 Camera with 30m Push Rod | 30m |
Camera footage is displayed on the bright, TFT, colour monitor; the Wöhler VIS 200 Visual Inspection Service Camera utilises CCS (Cristal Clear Screen) technology to provide sharp images. Via the display, the user can also view the date, time and digital meter-counter. The Wöhler VIS 200 Visual Inspection Service Camera’s monitor can be tilted and removed to ensure it is always easy to see.
Additionally, the Wöhler VIS 200 Visual Inspection Service Camera includes an integrated video output for documentation purposes.
The Wöhler VIS 200 Visual Inspection Service Camera is battery-powered and housed in a robust, plastic case, thereby providing a rugged and mobile solution. The rechargeable battery provides up to 120 minutes of operating time.
Finally, the Wöhler VIS 200 Visual Inspection Service Camera can be used with an OPTIONAL Wöhler L 200 Locator (NOT included) which allows the user to identify the precise location of the camera head and, therefore, of any damages that need attention.
The Wöhler VIS 200 Visual Inspection Service Camera is a durable, easy-to-use and versatile pipe-inspection camera.
Wöhler VIS 200 Visual Inspection Service Camera Key Features
- A colour camera that can be used to inspect pipes with a diameter of 40mm+
- Suitable for finding and assessing damage in wastewater pipes, downpipes, ventilation lines and flue gas lines (max Ø125mm)
- Inspect hollow spaces
- Waterproof, compact and flexible
- Light-sensitive camera head with a 26mm diameter
- The camera head can be manoeuvred through bends easily
- Powerful integrated light
- Two versions available which differ in regards to the lengths of their push rods
- Bright, TFT, colour, 7” monitor with a 2m cable
- CCS-image technology
- Sharp images
- The date, time and digital meter-counter are displayed on the monitor
- Integrated video output
- Battery-powered: 120 minutes of operating time
- Robust, plastic case
- Rugged and mobile inspection solution
- Can be used with an OPTIONAL Wöhler L 200 Locator (NOT included)
- Durable, easy-to-use and versatile pipe-inspection camera
What’s Included?
- Wöhler VIS 200 Visual Inspection Service Camera
- Wöhler TFT 7” Monitor with 2m Cable
- Ø6mm Push Rod (please note that the length of the push rod varies depending on the model selected, please see the table above)
- Anti-Slide Mat
- NiMH Battery
- Battery Charger
- Plastic Case
Wöhler VIS 200 Visual Inspection Service Camera Technical Specifications
| Monitor | |
| Dimensions housing | 176 x 114 x 32 mm |
| TFT-display | 7" / 16:9 format |
| Video-Out | RCA signal |
| Weight | 400 g |
| Power supply | Space for 2 rechargeable batteries, each 12 V or via power supply |
| Battery operating time | Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display) |
| Miniature Camera Head, Colour Ø 26 mm | |
| Type | 1/3" COLOUR CMOS |
| Resolution | 420 lines |
| Pixels | 768 x 576 (PAL), 656 x 492 (NTSC) |
| Lens | f = 2,3 mm, F = 2,5 |
| Viewing angle | 130° |
| Light source | 12 white LEDs |
| Degree of protection | Waterproof according to IP 67 |
| Dimensions | Ø 26 mm x 38 mm |
| Weight | 240 g |
| Operation temperature | 0...40 °C, RH 95 % MAX |
| Storage temperature | -20...50 °C, RH 95 % MAX |
| Transmitter frequency | 8.9 kHz |
| Push Rod | |
| Length | 20 m or 30 m |
| Diameter | Ø 6.0 mm |
| Distance Measurement | |
| Wöhler VIS 200/250 | Digital meter counter |
| Accuracy | ± 5 % |
| Plastic Case | |
| Dimension | 51 x 43 x 17 cm (L x W x H) |
| Weight | 7 kg |
| SKU | WO-VIS-200 |
|---|
