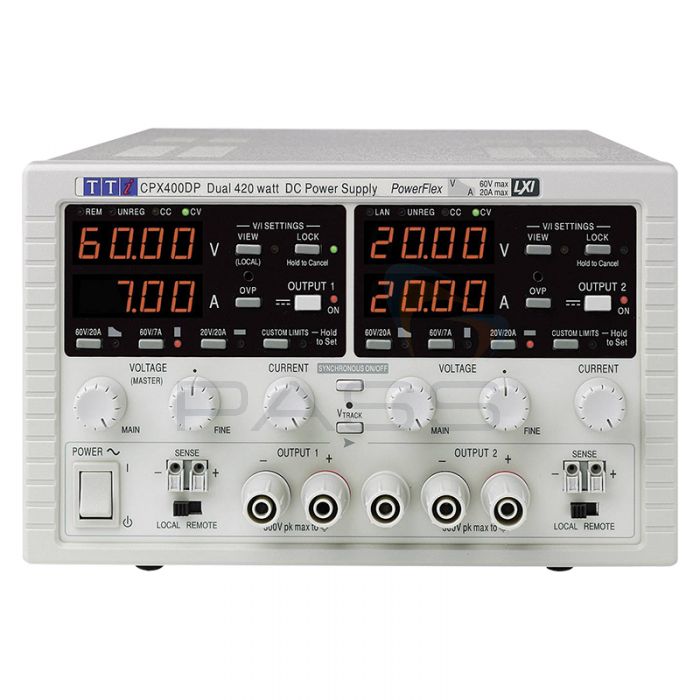

Aim-TTi CPX400DP Digital Bench/ System DC Power Supply - 840W, 2 Outputs
The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply is a flexible laboratory power supply system with a PowerFlex design.
PowerFlex Design
The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply has a total power output of 840 Watts, 480W per channel. The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply also has a maximum voltage output of 60V and a maximum current output of 20A per channel. The PowerFlex design provides variable voltage and current combinations within the maximum power envelope. As a result, higher currents can be generated at lower voltages.
The PowerFlex regulator utilises a high-frequency pre-regulator in combination with a linear post regulator to provide a good transient response and low noise. Each output can operate in constant voltage or constant current mode with automatic crossover and mode indication.
Isolated Voltage Tracking
The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply’s two channels are independent and electrically isolated from one another, enabling greater flexibility.
Additionally, the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply includes a V-Track mode; when engaged the voltage control of the master output sets an identical voltage on the slave output whilst maintaining electrical isolation. Using this mode, the operator can create two rails of either polarity to be referenced to different grounds.
Alternatively, voltage and current outputs can be extended to 120V and 40A when the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply’s outputs are wired in parallel or series.
Output Control
Each of the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply’s outputs features an On/Off switch. In addition to this, the PSU also includes a Both On/ Both Off switch for simultaneously activating and deactivating both channels; this is particularly useful when working on circuits that can be damaged if only one of the voltage rails is present.
Fixed Power Supply
In addition to functioning as a flexible PSU, the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply can be used as a fixed range power supply at either 60V/7A or 20V/20A. It also includes an option for customising voltage and current limits, allowing the user to tailor the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply to suit the application. Programmable limits also reduce the possibility of error.
Analogue Control with Digital Stability
Similarly, the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply’s S-Lock works to reduce the possibility of error as it transfers the control of voltage and current from the analogue controls to the internal digital circuitry. The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply combines the ease and simplicity of analogue control with the stability of digital operation.
Precision Metering and Remote Sense
Each output has a separate voltage and current meter with a four-digit display and a resolution of 10mV/ 10mA. The fixed resolution prevents misinterpretations common on auto-ranging 3/3.5-digit meters and allows the user to view accurate, consistent readings at a glance.
Further to this, the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply's outputs both include coarse and fine voltage controls and a logarithmic control that enables low current levels to be set accurately. The user can see and adjust settings at any time using the View Settings button.
To ensure precise regulation at the load and true metering of the load voltage, the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply includes remote sense terminals at each output. The remote sense terminals can be enabled and disabled as required.
Additionally, each of the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply’s outputs includes over-voltage protection.
Ergonomic Design
The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply’s compact design ensures that it has a small bench footprint which is particularly useful when working on crowded laboratory benches. Additionally, the half-rack by 3U case size means two Aim-TTi CPX400DP Digital Bench/ System DC Power Supplies can be fitted in a single rack slot.
The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply also features power and sense terminals on both the front and rear of the unit. Rear terminals are particularly useful during rack-mount applications.
Additionally, the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply supports a number of digital interfaces including RS-232, USB, LAN (LXI) and GPIB enabling digital remote control. Each of the digital bus interfaces provides full control of voltage, current, and output on/off, as well as read-back of voltage, current and status.
Other practical features present on the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply include safety binding posts capable of accepting normal plugs, bare wires and fork connectors, as well as fixed-shroud 4mm plugs. The binding post’s limited opening length and raised insulated shoulders ensures they are touch-proof up to 250V.
Finally, the Aim-TTi CPX400DP Digital Bench/ System DC Power Supply also includes an IVI driver for Windows which is capable of supporting high-level applications such as LabView, LabWindows and HP/ Agilent VEE.
The Aim-TTi CPX400DP Digital Bench/ System DC Power Supply is an ergonomic PSU capable of providing fixed and flexible outputs as well as accurate and reliable readings.
Aim-TTi CPX400DP Digital Bench/ System DC Power Supply Key Features
- A flexible laboratory power supply system with a PowerFlex design
- Total power output: 840 Watts, 420 Watts per channel
- Max voltage per channel: 60V
- Max current per channel: 20A
- PowerFlex design provides variable voltage and current combinations within the maximum power envelope
- Generates higher currents at lower voltages
- PowerFlex regulator utilises a high-frequency pre-regulator in combination with a linear post regulator
- PowerFlex regulator provide a good transient response and low noise
- Each output can operate in constant voltage or constant current mode with crossover and mode indicator
- The outputs are independent and electronically isolated from one another for greater flexibility
- V-Track mode: voltage control of the master output sets an identical voltage on the slave output whilst maintaining electrical isolation
- V-Track allows the user to create two rails of either polarity to be referenced to different grounds
- 120V and 40A outputs are possible when the channels are wired in parallel or series
- On/Off switch for each output
- Both On/ Both Off switch for activating and deactivating both channels simultaneously
- Can function as a fixed range power supply: 60V/7A or 20V/20A
- Customisable voltage and current limits
- Analogue controls for ease of use
- S-Lock button transfers control of voltage and current from the analogue controls to the internal digital circuitry
- S-Lock prevents settings from drifting and accidental alteration
- Each output has its own voltage and current meter
- Each meter has a 4-digit display and fixed resolution of 10mV/ 10mA
- The fixed resolution prevents misinterpretation of readings
- View accurate and consistent readings at a glance
- Coarse and fine voltage controls for each output
- Logarithmic current control for setting low currents accurately
- View Settings button: view and adjust settings at any time
- Remote sense terminals at each output ensure precise regulation at the load and true metering of the load voltage
- Remote sense terminals can be enabled and disabled as required
- Each output includes over-voltage protection
- Compact design ensures a small bench footprint
- The half-rack by 3U case size allows two units to be fitted in a single rack slot
- Power and sense terminals on the front and back of the unit
- Support for digital interfaces: RS-232, USB, LAN (LXI) and GPIB
- Each digital bus interface provides full control of voltage, current, and output on/off, as well as read-back of voltage, current and status
- Safety binding posts accept normal plugs, bare wire and fork connectors as well as fixed-shroud 4mm plugs
- Binding posts are safe to touch up to 250V
- IVI driver for Windows supports high-level applications such as LabView, LabWindows and HP/ Agilent VEE
- Ergonomic PSU capable of providing fixed and flexible outputs and accurate and reliable readings
What’s Included?
- Aim-TTi CPX400DP Digital Bench/ System DC Power Supply - 840W, 2 Outputs
Aim-TTi CPX400 Series Digital Bench/ System DC Power Supply Technical Specifications
| Output Specifications (each output) | |
| Voltage/Current/Power Levels | Voltage Range:0V to 60V |
| Current Range:0A to 20A | |
| Power Range:Up to 420W subject to power envelope. | |
| Note | Actual maxima for voltage and current are typically 1% greater than the figures given above. |
| Power Envelope | The maximum current atany voltage settings is limited by the power envelope which is set to give 7A at 60V rising to 20A at 20V under all ac supply conditions (both outputs loaded). At lower output voltages the power is restricted by the 20 amps current maximum. |
| Output Setting and Control | Voltage Setting: By coarse and fine controls |
| Current Setting: By single logarithmic control | |
| Output Mode:Constant voltage or constant current with automatic cross-over. CC indicator lit in constant current mode |
|
| Output Switch:Electronic, non isolating. Preset voltage and current limit displayed when Output is off. Output rise time no load <10ms. |
|
| View Settings: With the output On, the meters show actual voltage and current. The preset levels can be viewed and adjusted at any time by pressing the View Settings button |
|
| Status Indication:LED indication of Output On, V/I Limits, CV, CI, Power Limit, Remote, LAN status. Message on meter display for trip condition. |
|
| S-Lock | (Settings Lock) Voltage and current settings can be locked by a single button press. Lock accuracy is equal to the meter accuracy (see Meter Specifications). |
| Output Performance | Ripple & Noise:Typically <3mV rms, <15mV pk-pk, (5mV rms max.) in CV mode. |
|
Load Regulation: Voltage - <0·01% of maximum output for any load change within Current - <0·05% of maximum output for any load change within |
|
|
Line Regulation: Voltage - <0·01% of maximum output for a 10% line change. Current - <0·01% of maximum output for a 10% line change. |
|
| Transient Response: <250µs to within 50mV of setting for a 5% to 95% load change. | |
| Temp. Coefficient: Typically <100ppm/°C | |
| Output Protection | Output Protection: Forward protection by Over-voltage Protection (OVP) trip. Reverse protection by diode clamp for currents to 3A. |
| OVP Setting/Range: Via screwdriver adjustable preset on front panel. Range 1V to 66V | |
| Over-temperature: Output trips off for over-temperature. | |
| Safety Interlocks: Operations that could cause an unexpected change in voltage or current settings are interlocked with the output switch. |
|
| Output Connections | Output Terminals:Universal 4mm safety binding posts on 19mm (0·75”) spacing at front. Screw terminals at rear (CPX400SA, SP & DP only). |
| Terminals can accept fixed shroud 4mm plugs, standard 4mm plugs, fork terminals and bare wires. | |
| Remote Sense | Sense Selection: Voltage sensing is selected as Local or Remote by front panel switch. |
| Sense Terminals: Sprung loaded screw-less terminals at front. Screw terminals at rear (CPX400SA, SP & DP only). |
|
| Meter Specifications (each output) | |
| Display Type | Dual 4-digit meters, 10mm (0·39”) LED |
| Voltage Meter | Resolution/ Accuracy: 10mV / ± 0·1% of reading ± 2 digits |
| Current Meter | Resolution/ Accuracy: 10mA / ± 0·3% of reading ± 20mA |
| Voltage Tracking (CPX400D & DP) | |
| Independent Mode | In the normal mode of operation, each output is fully independent and isolated. Operation is equivalent to two single output power supplies. |
| Voltage Tracking Mode | The two outputs remain isolated, but the Slave voltage controls are disabled and the Slave voltage is set equal to the Master voltage. This can be used to generate tracking bipolar voltages, or tracking unipolar voltages relative to different grounds. When voltages greater than 60V are required, the outputs can be wired in series to generate 0 to 120V with the voltage controlled from the Master. When currents greater than 20A are required, the outputs can be wired in parallel to create the equivalent of a 40A power supply with the voltage controlled from the Master. Track Accuracy: Slave voltage = ± (0·1% of Master voltage setting + 10mV) |
| Both On/ Both Off (CP400D & DP) | Each output has an independent DC On/Off control, however, an additional control button is provided which turn both outputs on or off simultaneously. |
| Analogue Remote Interface (CPX400SA Only) | |
| The CPX400SA offers galvanically isolated analogue remote control of voltage and current from control voltages. Voltage and current front panel settings generate non-isolated analogue output voltages that can be used to control slave power supplies. |
|
| Input Scaling | 0 to 100% control of voltage or current from 0 to 5V or 0 to 10V (selectable) |
| Input Accuracy | Voltage: 0.3% ±20mV. Current: 0.5% ±50mA. Input impedance 10KΩ |
| Output Scaling | Set values of 0 to 100% of rated output voltage and current generate 0 to 5V (not isolated) |
| Output Accuracy | Voltage: 0.3% ±20mV. Current: 0.5% ±50mA. Output impedance 125Ω |
| Remote On/Off | Output On/Off can be controlled by external switch closure (not isolated) |
| Digital Bus Interfaces (CPX400SP & CPX400DP) | |
| The CPX400SP & CPX400DP offers full remote control and read-back using RS-232, USB, GPIB or LAN (compliant with LXI class C). All interfaces are at ground potential and opto-isolated from the output terminals. Note: Remote/Local Sense, is manually selectable only. |
|
| RS-232 | Standard 9-pin D connector. Baud rate 9,600. |
| USB | USB 2.0 connection (backwards compatible with USB 1.x). Operates as a virtual COM port. |
| GPIB (IEEE-488) | The interface conforms with IEEE-488.1 and IEEE-488.2. |
| Ethernet (LAN) | Standard 10/100 base-T hardware connection. ICMP and TCP/IP Protocol for connection to Local Area Network or direct connection to a single PC. |
| LXI Compliance | LAN interface is compliant with LXI class C. (LXI is the abbreviation for Lan eXtensions for Instrumentation). |
| Digital Programming Performance (CPX400SP & DP only) | |
| Voltage Setting | Resolution/Accuracy: 1mV / ± (0.05% +10mV) |
| Current Setting | Resolution/Accuracy: 1mA / ± (0.3% +5mA) |
| Programming Speed | Command Delay: Typically <25ms (this must be added to any of the figures below) |
| Voltage Up Time: <10ms* to 1% | |
| Voltage Down Time: <80ms* to 1% (full load); <1.5s* to 1% (no load) | |
| * The up and down times vary with range and voltage step size. | |
| General Specifications | |
| Input | AC Input: 110 to 240 volts ±10% 50/60Hz. Installation Category II. |
| Input Power: Single - 625VA, Dual - 1250VA max. | |
| Temperature & Environmental | Operating Range: +5ºC to +40ºC, 20% to 80% RH |
| Storage Range: -40ºC to + 70ºC | |
| Environmental: Indoor use at altitudes up to 2000m, Pollution Degree 2. | |
| Cooling: Rear discharge variable speed fan. | |
| Safety & EMC | Safety: Complies with EN61010-1 |
| EMC: Complies with EN61326 | |
| Physical |
Size: Single - 107 x 130 (¼ rack 3U) x 398mm Dual - 210 x 130 mm (½ rack 3U) x 377mm |
| Weight: Single - 4.25kg (9.35lb), Dual - 6.3kg (13.9lb) | |
| Driver Software Supplied (CPX400SP & DP) | |
| IVI Driver | An IVI driver for Windows is supplied. This provides support for common applications such as LabView*, LabWindows*, HPVEE* etc. |
| USB Driver | An installation file is supplied which calls a standard Windows* USB driver. |
| Notes | * LabView and LabWindows are trademarks of National Instruments. HPVEE (now Agilent VEE) is a trademark of Agilent Technologies. |
| * USB interface is supported for Windows 2000 and above. Windows is a trademark of Microsoft. |
|
| SKU | 51153-8100 |
|---|---|
| Manufacturer Part Code | 51153-8100 |
