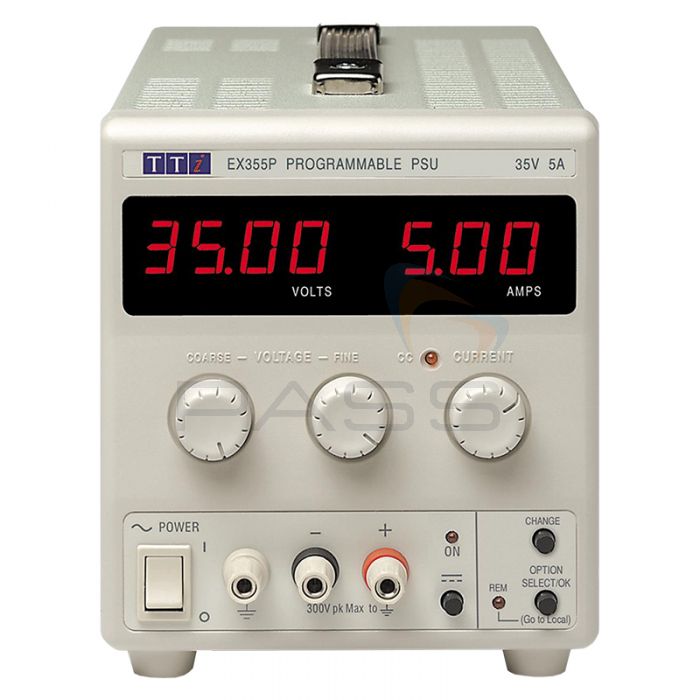

Aim-TTi EX355P Digital Bench Power Supply with RS-232

Description

The Aim-TTi EX355P Digital Bench Power Supply is a single-channel PSU with an RS-232 interface. It is capable of providing a voltage output between 0 to 35V at 0 to 5A and has a maximum power output of 175W.

Constant Current and Constant Voltage Mode

The Aim-TTi EX355P Digital Bench Power Supply’s output can operate in either Constant Voltage or Constant Current mode and features automatic crossover and mode indication.

DC Output Switch

The DC On/Off switch allows the user to view the Aim-TTi EX355P Digital Bench Power Supply's voltage and current levels before connecting a load.

Voltage and Current Meter

Voltage and current data can be viewed via the Aim-TTi EX355P Digital Bench Power Supply’s large, bright display. This single-output PSU features a 4-digit voltage meter (resolution: 100mV) and a 3-digit current meter (resolution: 10mA).

Simple to Use

Voltage and current levels are easily, efficiently, and accurately configured using analogue controls. The Aim-TTi EX355P Digital Bench Power Supply includes coarse and fine voltage controls, as well as a logarithmic current control for setting low currents precisely.

Power-Down Memory

The Aim-TTi EX355P Digital Bench Power Supply will save the voltage, current, and output status at power-down and will restore these settings upon power-up.

RS-232 Interface

The Aim-TTi EX355P Digital Bench Power Supply can be digitally controlled via an isolated RS-232 interface. Via a simple command set the user can set voltage and current levels and engage/ disengage the output remotely. The RS-232 interface also provides a readback of metering values and operating status.

The Aim-TTi EX355P Digital Bench Power Supply is a bench-top, single-channel PSU with an RS-232 interface enabling remote operation.

Aim-TTi EX355P Digital Bench Power Supply with RS-232 Key Features

A single-channel PSU with an RS-232 interface
Voltage output: 0 to 35V
Current output: 0 to 5A
Maximum power output: 175W
Constant Current and Constant Voltage mode with automatic crossover and mode indication
DC On/Off switch: view voltage and current settings before connecting a load
Large, bright display with a 4-digit voltage meter and a 3-digit current meter
Voltage resolution: 100mV
Current resolution: 10mA
Analogue controls for easily and efficiently setting voltage and current levels
Coarse and fine voltage controls
Logarithmic current control for setting low currents precisely
Power-down memory: saves voltage levels, current levels, and the output status at power-down and restores these settings upon power-up
Isolated RS-232 interface for digital control
Set voltage and current levels and engage/ disengage the output remotely
RS-232 interface provides read-back of metering values and operating status
Bench-top, single-channel PSU with an RS-232 interface for remote operation

What’s Included?

Aim-TTi EX355P Digital Bench Power Supply with RS-232 –175W, 1 Output

Tech Specs

Aim-TTi EX-R Digital Bench Power Supplies Technical Specifications

EX-R Model Range
Voltage/Current Levels	EX355R	0 to >35V; 0 to >5A	(175W nominal power)
	EX335P/ EX355P-USB	0 to 35V; 0 to 5A	(175W nominal power)
	EX1810R	0 to >18V; 0 to >10A	(180W nominal power)
	EX2020R	0 to >20V; 0 to >20A	(400W nominal power)
	EX4210R	0 to >42V; 0 to >10A	(420W nominal power)
	EX354RD	2 x (0 to >35V; 0 to >4A)	(280W nominal power)
	EX354RT	2 x (0 to >35V; 0 to >4A) plus <1.5 to >5.0V @ 5A	(305W nominal power)
	EX752M	2 x (0 to >75V; 0 to >2A)	(300W nominal power)
Output Specifications
Output Setting & Control	Voltage Setting	By coarse and fine controls.
	Voltage Sensing EX752M	Voltage sensing is local only (i.e. no remote sense).
	Voltage Sensing EX355P/ EX355P-USB	Voltage sensing is local only (i.e. no remote sense).
	Voltage Setting EX355P/ EX355P-USB	By coarse and fine rotary encoders or RS-232 interface. Resolution 10mV
	Current Setting	By single logarithmic control
	Current Setting EX355P/ EX355P-USB	By single rotary encoder or RS-232 interface. Resolution 10mA
	Output Mode	Constant voltage or constant current with automatic cross-over. CC indicator lit in constant current mode.
	Output Switch	Electronic, non-isolating. Preset voltage and current limit are displayed when the Output is off. On state indicated by LED.
Output Performance	Ripple & Noise	Typically <2mV rms, <10mV pk-pk (EX355R, EX354RD, EX354RT)
		Typically <2mV rms, <20mV pk-pk (EX1810R, EX2020R, EX4210R) (CV mode, 20MHz bandwidth)
	Load Regulation	<0·01% of maximum output for a 90% load change (using remote sense).
	Line Regulation	<0·01% of maximum output for 10% line change
	Transient Response	<200µs to within 50mV of the setting for a 5% to 95% load change.
	Temp. Coefficient	Voltage: typically <100ppm /°C.
Output Protection	Outputs will withstand forward voltages up to 40V (EX355R, EX354RD, & EX354RT); 22V (EX1810R); 25V (EX2020R); 48V (EX4210R). Reverse protection by diode clamp for currents to 3A.
Output Protection EX752M	Outputs will withstand forward voltages up to 85V/170V. Over-voltage trip operates above these levels. Reverse protection by diode clamp for currents to 3A
Output Connections	Output Terminals	Universal 4mm safety binding posts on 19mm (0·75”) spacing
	Output Terminals EX752M	High voltage touch-proof terminals.
	Note	Terminals can accept fixed shroud 4mm plugs, standard 4mm plugs, fork terminals, and bare wires
Remote Sense	Sense Selection	Voltage sensing is selected as Local or Remote by the front panel switch.
	Sense Terminals	Sprung loaded screw-less terminals
Meter Specifications
Display Type	Dual 4-digit meters, 14mm (0·56”) LED
	EX752M: 3 digit meters for voltage and current; (4-digit on the second voltmeter to maintain resolution above 100V).
	EX355P/ EX355P-USB: 4-digit meter for voltage and 3-digit meter for current
Voltage Meter	Resolution	10mV
	Resolution EX752M	100mV
	Resolution EX355P/ EX355P-USB	100mV
	Accuracy	0·3% of reading ± 3 digits
	Accuracy EX752M	0·3% of reading ± 1 digit,
	Accuracy EX355P/ EX355P-USB	0·3% of reading ± 1 digit,
Current Meter (EX355R, EX354RD, EX354RT)	Resolution	1mA
	Resolution EX752M	10mA
	Resolution EX355P/ EX355P-USB	10mA
	Accuracy	0·5% of reading ± 3 digits
	Accuracy EX752M	0·6% of reading ± 1 digits
	Accuracy EX355P/ EX355P-USB	0·6% of reading ± 1 digits
		Note that in constant voltage mode, the meter will show the set voltage to a resolution of 10mV. However, the metering resolution is limited to 100mV when in constant current mode, and the last digit will be set to zero.
Current Meter (EX1810R, EX2020R, EX4210R)	Resolution	10mA
	Accuracy	0·6% of reading ± 3 digits
Auxiliary Output (EX354RT only)
Voltage	Variable <1.5V to >5V by front panel control.
Meter accuracy	0.3% ± 4 digits.
Current limit	5A minimum
Load regulation	<0.5% for 90% load change.
Load Regulation EX752M	Modes A and B - <0·01%; Mode C - <0·1% + 2mV (90% load change)
Line regulation	<0.1% for 10% line voltage change
Ripple & Noise	Typically <2mVrms, <10mVpk-pk (20MHz bandwidth)
Ripple & Noise EX752M	Typically <2mV rms, <15mV pk-pk (CV mode, 20MHz bandwidth)
Output Protection	Output will withstand up to 7V forward voltage. Diode clamp reverse protection for currents up to 3A
Output Terminals	Universal 4mm safety binding posts on 19mm (0·75”) spacing
Status Indication	UNREG lamp
Multi-Mode Operation EX752M	Three modes of operation can be selected via a rotary switch
	Mode A: Two independent and isolated outputs (75V/2A each)
	Mode B: One output of double the current capability (75V/4A). (Unused output is disabled and its displays are blanked).
	Mode C: One output of double the voltage capability (150V/2A). (Unused output is disabled and its displays are blanked).
Power Down Memory EX355P/ EX355P-USB	The power supply saves the voltage, current and output-enable status at power down and restores the settings at power up.
Remote Control EX355P/ EX355P-USB
Isolation	Fully opto-isolated from power supply output.
Remote Functions	Set Voltage, Set Current, Set Output On/Off, Read Voltage, Read Current, Read On/Off, Read Mode (CV or CC).
Setting Accuracy	Voltage 0.3% ±20mV. Current 0.6% ±20mA
Setting Resolution	Voltage 10mV. Current 10mA
Readback Accuracy	Voltage 0.3% ±100mV. Current 0.6% ±20 mA
Readback Resolution	Voltage 100mV. Current 10mA.
RS-232 Interface EX355P	Baud Rate: Variable from 600 baud to 9,600 baud.
USB Interface EX355P-USB	Conformance: USB 2.0. Compatible with USB 1.x.
General Specifications
Input	AC Input	EX354RD, EX354RT - 110V to 240V 50/60Hz (universal input); Other Models - 230V AC ± 10% 50/60Hz; 115V to order. Installation Category II
	VA Ratings	EX810R, EX355R - 400VA; EX354RD, EX354RT - 500VA EX2020R, EX4210R - 800VA
Temperature & Environmental	Operating Range	+5ºC to +40ºC, 20% to 80% RH
	Storage Range	-40ºC to + 70ºC
	Environmental	Indoor use at altitudes up to 2000m, Pollution Degree 2
	Cooling	EX1810R, EX355R, EX354RD, EX354RT - fan-less convection cooling; EX2020R, EX4210R - fan assisted using low-noise brushless dc fan.
Safety & EMC	Safety	Complies with EN61010-1
	EMC	Complies with EN61326
Physical	Size	Single output models - 140x160x320 mm (WxHxD). Dual and triple output models - 260x160x320 mm (WxHxD)
	Weight	EX810R, EX355R - 3.0kg; EX2020R, EX4210R - 3.6kg EX354RD, EX354RT - 4.3kg
