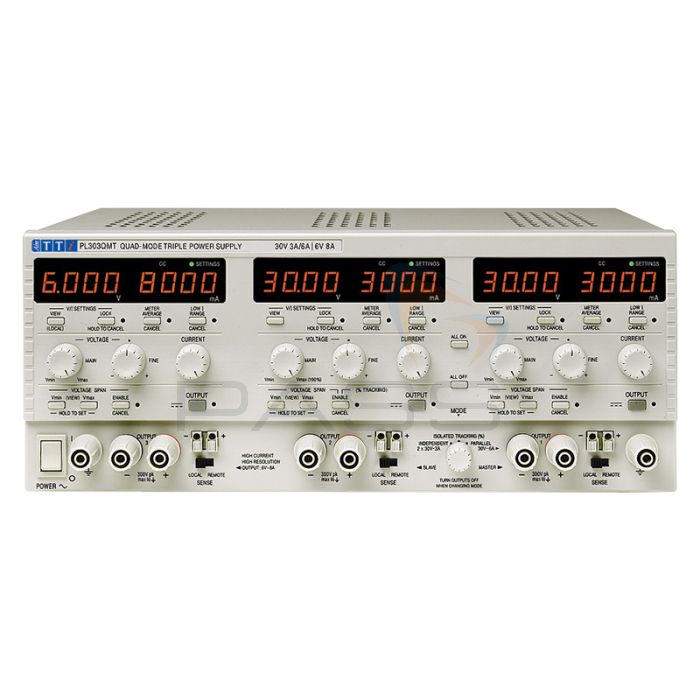

The Aim-TTi PL303QMT models are a triple output power supply with the same high power density as the single output models. They have a ¾-rack so that one triple plus one single could be accommodated within a standard rack width. They have four modes of operation: Independent, Isolated Tracking, Isolated Ratio Tracking, and True Parallel. Along with the third output of 0V to 6V/0.1mA to 8A, these models have a maximum output voltage of 30V and a maximum output current of 3A.
Although the PL303QMT has identical specifications to the PL303QMD models, the Both On / Both Off buttons of the PL303QMD are replaced by control buttons that turn all three outputs on or off simultaneously. Three ports are available to choose from, PL303QMT, PL303QMT-P, or PL303QMT-P(G).
Product Range
- Aim-TTi PL303QMT Triple 0-30V/0-3A,0-6V/0-8A
- Aim-TTi PL303QMT-P Triple 0-30V/0-3A Dual plus 0-6V/0-8A USB/RS232/LAN(LXI)
- Aim-TTi PL303QMT-P(G) Triple 0-30V/0-3A,0-6V/0-8A USB/RS232/LAN(LXI)/GPIB
Key Features
-
PL303QMT
- Linear regulation - for the best performance
- Ultra-compact design - uses up less space
- True Analogue controls - for ease of use
- S-Lock function - instantly lock settings
- V-Span function - customise the voltage range
- Low current range and current meter averaging
- DC output switches and "view limits" button
- Selectable remote sense terminals
- Independent, Isolated Tracking, Ratio Tracking, and True Parallel modes
- High current low voltage output
-
PL303QMT-P
- Linear regulation - for the best performance
- Ultra-compact design - uses up less space
- True Analogue controls - for ease of use
- S-Lock function - instantly lock settings
- V-Span function - customise the voltage range
- Low current range and current meter averaging
- DC output switches and "view limits" button
- Selectable remote sense terminals
- Independent, Isolated Tracking, Ratio Tracking, and True Parallel modes
- High current low voltage output
- RS-232, USB, and LAN (Ethernet)
- LAN Interface conforms with LXI standard
- Front and rear terminals
-
PL303QMT-P(G)
- Linear regulation - for the best performance
- Ultra-compact design - uses up less space
- True Analogue controls - for ease of use
- S-Lock function - instantly lock settings
- V-Span function - customise the voltage range
- Low current range and current meter averaging
- DC output switches and "view limits" button
- Selectable remote sense terminals
- Independent, Isolated Tracking, Ratio Tracking, and True Parallel modes
- High current low voltage output
- RS-232, USB, and LAN (Ethernet)
- LAN Interface conforms with LXI standard
- Front and rear terminals
- GPIB interface
Datasheets
SKU | PL303QMT/-P/-P(G) |
---|
