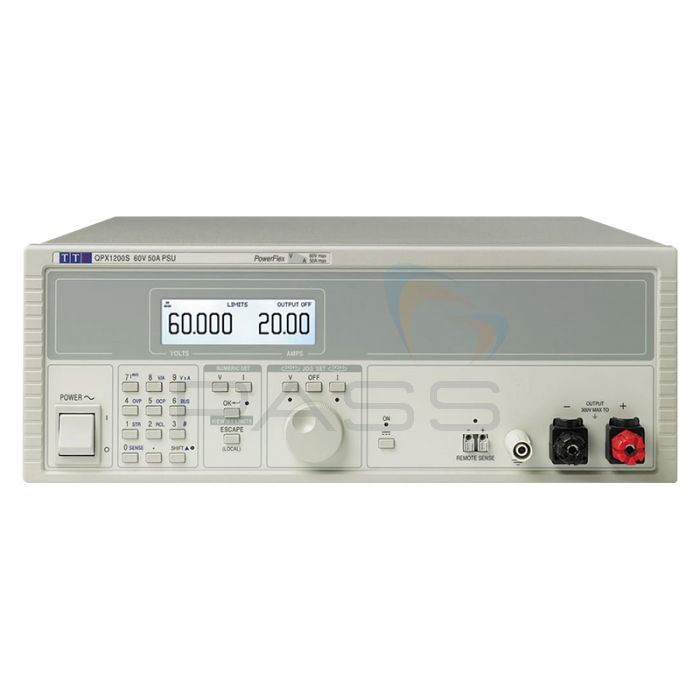

Aim-TTi QPX1200SP Digital Bench Power Supply -1.2kW, 1 Output
The Aim-TTi QPX1200SP Digital Bench Power Supply has a single channel and a total power output of 1.2kW (1200W). This laboratory DC power supply also features a PowerFlex design for maximum flexibility, support for digital bus interfaces and an IVI driver. It is suitable for benchtop, system and rack-mounted applications.
PowerFlex
The Aim-TTi QPX1200SP Digital Bench Power Supply’s PowerFlex design allows it to generate higher currents at lower voltages within the overall power limit envelope. The Aim-TTi QPX1200SP Digital Bench Power Supply’s channel can be configured to have a maximum voltage output of 60V or a maximum current output of 50A within the 1200W power envelope. It is able to provide three times the current of a conventional PSU with the same voltage and power whilst its wide range of voltage and current combinations equips the Aim-TTi QPX1200SP Digital Bench Power Supply with maximum flexibility.
Furthermore, the PowerFlex regulator ensures the Aim-TTi QPX1200SP Digital Bench Power Supply has a low output noise and good transient response as it includes a linear output stage.
Numeric or Rotary Entry
To ensure accuracy, the Aim-TTi QPX1200SP Digital Bench Power Supply has a high setting resolution of 1mV in up to 60V. Voltage and current levels can be entered numerically using the keypad; alternatively, they can be entered using the jog wheel at user-selectable increments.
Graphic Display
In Standard Display mode, the voltage and current are indicated on the Aim-TTi QPX1200SP Digital Bench Power Supply’s large, high-resolution, graphic display in large digits and are accompanied by text annotations such as 'CV mode' and 'Output On'. The Aim-TTi QPX1200SP Digital Bench Power Supply’s display can be adjusted to show digits and information in a variety of sizes, allowing the user to tailor the PSU to his/her requirements.
When altering settings the Aim-TTi QPX1200SP Digital Bench Power Supply uses dual display of parameters, allowing the user to view existing and new settings simultaneously or actual and limit values simultaneously. Moreover, when configuring complex functions, the Aim-TTi QPX1200SP Digital Bench Power Supply will provide text prompts or a complete selection menu.
OVP and OCP Trips
When the variable over-voltage and over-current trips are triggered the cause of activation is detailed on the Aim-TTi QPX1200SP Digital Bench Power Supply’s display. The output trips can also be triggered by other fault conditions such as over-temperature and remote sense miswiring.
Upon activation, the OVP and OCP trips will shut off the Aim-TTi QPX1200SP Digital Bench Power Supply’s output and provide a different level of protection.
Power Calculation
The Aim-TTi QPX1200SP Digital Bench Power Supply can be configured to show the total power being applied to the load (VxA), in addition to the voltage and current. The total power is displayed to a resolution of 0.1W.
Low Resistance Calculation
The Aim-TTi QPX1200SP Digital Bench Power Supply can be used to measure resistance measurements at high currents. Its remote sense terminals create a four-terminal connection, providing reliable resistance results for components that operate at ampere levels, such as magnets. The Low Resistance Calculator displays the equivalent resistance of the load (the voltage divided by the current).
Current Meter Averaging
The Aim-TTi QPX1200SP Digital Bench Power Supply’s Current Meter Averaging function allows the PSU to measure rapidly changing loads as it stabilises the display by indicating an average reading calculated using the four preceding measurements. This reduces the speed and degree of variation.
Multiple Setting Stores
The Aim-TTi QPX1200SP Digital Bench Power Supply includes non-volatile stores for saving voltage and current settings. This is particularly useful when performing repetitive testing as parameters can be recalled rapidly.
Analogue and Logic Interfaces
The Aim-TTi QPX1200SP Digital Bench Power Supply includes analogue interfaces for both output voltage and output current (non-isolated). However, the control voltage is digitised enabling control of the PSU. The digitised voltage control can be selected between 0 to 5V or 0 to 10V for zero to full scale. Additionally, the Aim-TTi QPX1200SP Digital Bench Power Supply includes monitor outputs for voltage and current that can be selected as 0 to 5V or 0 to 10V.
Furthermore, the Aim-TTi QPX1200SP Digital Bench Power Supply includes an opto-isolated logic control signal. Using the menu, the opto-isolated logic control signal can be set as true= output on or true= output off. The Aim-TTi QPX1200SP Digital Bench Power Supply also includes an opto-isolated open-collector logic output signal. Using the menu, it can be set to true or false for output enabled or disabled, current limit, power limit or any fault trip.
Comprehensive Bus Remote Control
The Aim-TTi QPX1200SP Digital Bench Power Supply also supports digital bus interfaces including RS-232, USB, GPIB and LAN (Ethernet) with LXI. The digital bus interfaces provide full control of voltage, current, output on/off and set-up, as well as read-back of voltage, current and status. They are at ground potential and are opto-isolated from the output terminals.
IVI Driver
Further to the above, the Aim-TTi QPX1200SP Digital Bench Power Supply includes an IVI driver for Windows which provides support for high-level applications such as LabView, LabWindows and HP/ Agilent VEE.
Ergonomic
The Aim-TTi QPX1200SP Digital Bench Power Supply is suitable for benchtop, system and rack-mounted applications. To this end, it includes output and remote sense terminals and analogue, logic and bus interface connectors on the front and rear of the unit.
Furthermore, the Aim-TTi QPX1200SP Digital Bench Power Supply is housed in a 350mm-wide (13 ¾”), 3U-high case. An OPTIONAL rack-mounting kit is available, please call for details.
The Aim-TTi QPX1200SP Digital Bench Power Supply is an ergonomic, comprehensive and flexible PSU suitable for benchtop, system and rack-mounted applications.
Aim-TTi QPX1200SP Digital Bench Power Supply Key Features
- Single-channel PSU with a total power output of 1.2kW (1200W)
- PowerFlex design for maximum flexibility
- Support for digital bus interfaces: RS-232, USB, GPIB and LAN (Ethernet) with LXI
- Digital bus interfaces provide full control of voltage, current, output on/off and set-up, as well as read-back of voltage, current and status
- Digital bus interfaces are at ground potential and are opto-isolated from the output terminals
- IVI driver for Windows supports high-level applications such as LabView, LabWindows and HP/ Agilent VEE
- Suitable for benchtop, system and rack-mounted applications
- PowerFlex design generates higher currents at lower voltages within the overall power limit envelope
- Maximum voltage output: 60V
- Maximum current output: 50A
- Able to provide three times the current of a conventional PSU with the same power and voltage
- Wide range of voltage and current combinations for maximum flexibility
- PowerFlex regulator with a linear output stage provides low noise and good transient response
- Enter voltage and current levels using the numeric keypad or jog wheel
- High setting resolution: 1mV in up to 60V
- Large, high-resolution, graphic display
- Standard Display mode: voltage and current are indicated in large digits and are accompanied by text annotations such as ‘CV mode’ and ‘Output On’
- The size of digits and characters can be adjusted as required
- Dual display of parameters when adjusting settings: view the existing and new settings or the actual and limit values
- Text prompts or a complete menu selection are provided when configuring complex functions
- Variable OVP and OCP trips
- Output trips can be triggered by other fault conditions such as over-temperature and remote sense miswiring
- The fault condition responsible for triggering OVP/ OCP trips is indicated on the display
- Upon triggering the OVP and OCP trips shut off the output and provide a different level of protection
- Power Calculation: shows the total power being applied to the load (VxA) in addition to the voltage and current
- Total power is indicated to a resolution of 0.1W
- Low Resistance Calculation: measure resistance at high currents
- Remote sense terminals can be used to create a four-terminal connection
- Provides reliable resistance results for components that operate at ampere levels such as magnets
- Low Resistance Calculator indicates the equivalent resistance of the load (voltage divided by current)
- Current Meter Averaging: provides the average reading calculated using the four preceding measurements
- Current meter averaging is especially useful when measuring rapidly changing loads
- Non-volatile stores for saving voltage and current settings
- Voltage and current settings can be recalled rapidly
- Analogue interfaces for output voltage and output current (non-isolated)
- Digitised control voltage can be selected between 0 to 5V or 0 to 10V
- Opto-isolated logic control signal can be set as true= output on or true= output off
- Opto-isolated open collector logic output signal can be set to true or false for output enabled or disabled, current limit, power limit or any fault trip
- Output and remote sense terminals and analogue, logic and bus interface connectors on the front and rear of the unit
- Housed in a 350mm-wide (13 ¾”), 3U-high case
- OPTIONAL rack mounting kit available
- Ergonomic, comprehensive and flexible PSU
What’s Included?
- Aim-TTi QPX1200SP Digital Bench Power Supply -1.2kW, 1 Output
Aim-TTi QPX1200S & QPX1200SP Digital Bench Power Supply Technical Specifications
| Output Specifications | ||
| Voltage/Current Levels | Voltage Range | 0V to 60V |
| Current Range | 0A to 50A | |
| Power Range | Up to 1200W | |
| Operating Mode | Constant voltage or constant current with automatic cross-over and mode indication. |
|
| Output Setting | Voltage Setting | By floating point numeric entry or rotary jog wheel; resolution 1mV |
| Current Setting | By floating point numeric entry or rotary jog wheel; resolution 10mA. | |
| Setting Accuracy | Voltage - 0.1% ± 2mV | |
| Current - 0.3% ± 20mA | ||
| Setting Stores | Up to 10 set-ups can be saved and recalled via the keyboard (or the digital interfaces on QPX1200SP and QPX1200L). |
|
| Keyboard & Rotary Control | All functions, including the selection and set-up of the remote control interfaces, can be set from the keyboard. The rotary Jog control can be used to adjust output voltage and current settings in a quasi-analogue mode. The output to be controlled is first selected with the appropriate Control key. | |
| Output Performance | Load regulation | <0.01% +5mV (CV mode) for any load change within the PowerFlex envelope, using remote sense. |
| Line regulation | <0.01% +5mV for a 10% line voltage change. | |
| Ripple & Noise | Typically <3mV rms, <20mV pk-pk, (20MHz bandwidth). | |
| Transient Response | <250µs to within 100mV of set level for 5% to 95% load change. | |
| Temp. Coefficient | Typically <100ppm/oC. | |
| Sensing | Selectable local or remote sensing. | |
| Output Protection | External Voltage | Output will withstand forward voltages of up to 70V. Reverse protection by diode clamp |
| Power Limit | Automatic protection within PowerFlex control system | |
| Fault Trip | The output will be shut down if any of the four trip conditions listed below occur |
|
| Over Voltage (OVP) | Settable 2V to 65V in 0.1V steps | |
| Over Current (OCP) | Settable 2A to 55A in 0.1A steps | |
| Over Temperature | Monitors internal temperature rise to protect against excess ambient temperature or blocked ventilation slots |
|
| Sense Error | Monitors the voltage between the remote sense terminals and output terminals to protect against mis-wiring. |
|
| Output Switching | Push switch operating electronic power control. LED indication of On state | |
| Connection | Output Terminals | Front and rear output terminals. Safety terminals accepting 6mm wire diameter, 6mm plugs or 8mm spades at 50 Amps max, or 4mm plugs at 30 Amps max |
| Sensing Terminals | Screw-less terminals on front panel and on rear panel. | |
| Metering | ||
| Display Type | Large dot-matrix black-on-white backlit LCD. | |
| Meter Function | 5 digit voltage meter and 4 digit current meter. Display of limits values, memory contents etc. Wide range of alpha-numeric messages/menus. |
|
| Limits Display | Limits settings can be displayed simultaneously with measurements. | |
| Meter Resolution | Voltage: 1mV. Current: 10mA | |
| Meter Accuracy | Voltage: 0.1% of reading ± 2 digits (CI mode and Unreg) | |
| Current: 0.3% of reading ± 2 digits (CV mode and Unreg) | ||
| Additional Metering Functions | V x A | Display shows calculated power in watts. Resolution 0.1W. Accuracy 0·5% ± 0·1W |
| V/A | Display shows calculated resistance. Resolution up to 5 digits. Measurement uncertainty is shown on display. |
|
| Analogue & Logic | ||
| Analog Remote Control and Monitoring | Non-isolated inputs and outputs to set voltage and current limit and to monitor actual output voltage and current. These signals are referenced to the negative output and have a range of 0 to 10V or 0 to 5V (selectable via the keyboard). Note that the analogue control voltage is digitised within the power supply. |
|
| Control Accuracy | Voltage: 0.3% ± 4mV; Current: 0.5% ± 40mA | |
| Monitor Accuracy | Voltage: 0.3% ± 4mV; Current: 0.5% ± 40mA | |
| Logic Control Input and Output | LOGIC IN is a rear-panel opto-isolated input that is activated at an input current greater than approximately 1mA. User can set LOGIC IN (via the keyboard) to enable the output, disable the output, or be ignored when it is activated. | |
| LOGIC OUT is an isolated rear-panel open-collector output that will sink up to 2mA when activated (‘switch closure’); the maximum voltage that can be applied to LOGIC OUT is 30VDC. User can set LOGIC OUT to be ‘closed’ or ‘open’ for output enabled or disabled, current limit (CI mode), power limit (UNREG mode), or for any fault trip. | ||
| Digital Bus Interfaces (QPX1200SP Only) | ||
| The QPX1200SP offers full remote control and read-back using RS-232, USB, GPIB or LAN (compliant with LXI class C). All interfaces are at ground potential and opto-isolated from the output terminals. The QPX1200L has USB, RS-232 and LXI compliant LAN only (no GPIB). | ||
| RS-232 | Standard 9-pin D connector. Baud rate 9,600. | |
| USB | USB 2.0 connection (backwards compatible with USB 1.x). Operates as a virtual COM port. | |
| GPIB (IEEE-488) | The interface conforms with IEEE-488.1 and IEEE-488.2. | |
| Ethernet (LAN) | Standard 10/100 base-T hardware connection. ICMP and TCP/IP Protocol for connection to Local Area Network or direct connection to a single PC. | |
| LXI Compliance | LAN interface is compliant with LXI class C. (LXI is the abbreviation for Lan eXtensions for Instrumentation) | |
| Digital Programming Performance (QPX1200SP) | ||
| Setting Accuracy and Resolution | As per Manual Control (see Output Setting under Output Specifications) | |
| Programming Speed | Command Delay | Typically <100ms between receiving the command terminator for a step voltage change at the instrument and the output voltage beginning to change. |
| Driver Software Supplied (QPX1200SP) | ||
| IVI Driver | An IVI driver for Windows is supplied. This provides support for common applications such as LabView*, LabWindows*, HPVEE* etc. | |
| USB Driver | An installation file is supplied which calls a standard Windows* USB driver. | |
| Notes | * LabView and LabWindows are trademarks of National Instruments. HPVEE (now Agilent VEE) is a trademark of Agilent Technologies. |
|
| * USB interface is supported for Windows 2000, XP, and Vista. Windows is a trademark of Microsoft | ||
| General Specifications | ||
| Input | AC Input | 110V to 240V AC ±10%, 50/60Hz. Installation Category II. |
| Input Power | 1600VA max. | |
| Temperature & Environmental | Operating Range | +5ºC to +40ºC, 20% to 80% RH |
| Storage Range | -40ºC to + 70ºC | |
| Environmental | Indoor use at altitudes up to 2000m, Pollution Degree 2. | |
| Cooling | Intelligent variable-speed fans. | |
| Safety & EMC | Safety | Complies with EN61010-1 |
| EMC | Complies with EN61326 | |
| Physical | Size | 350 x 130 x 413mm (WxHxD) (3U height) . |
| Weight | 9.2kg (20lb). | |
| Benchtop Operation | Folding legs are incorporated that can be used to angle the front panel upwards when required. |
|
| SKU | 51153-8700 |
|---|---|
| Manufacturer Part Code | 51153-8700 |
