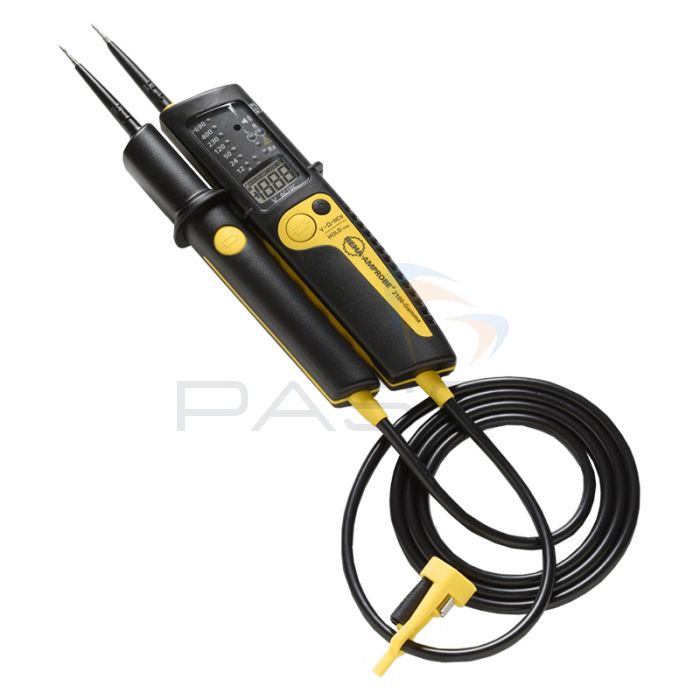

Beha-Amprobe 2100-GAMMA Two Pole Voltage Tester

SKU
4709243
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £0.79, read more.

:
79
£94.80 £79.00
In Stock
Advice & Support
Price Match Request

The Beha-Amprobe 2100-Gamma Two Pole Voltage Tester is designed for voltage and continuity tests and is the most sophisticated tester of Beha-Amprobe’s 2100 series.

This GS38 approved product has a maximum voltage measurement capacity of 1000V AC/ 1200 V DC, is able to take resistance measurements of up to 1999Ω and perform 10 mA and 30 mA RCD trip tests.

With its reinforced, dust-tight components, ability to withstand water jets, as well as its LCD panel, LCD screen, torch light for measurement area illumination and sound indicator, the 2100- Gamma is ideal for use in challenging industrial and commercial environments.

Some of the features available on Beha-Amprobe’s 2100-Gamma Voltage Tester, not available on Amprobe’s other 2100 Series models are:

  • Resistance measurement and low resistance indication
  • Non-contact voltage detection
  • Data hold function (also available on Amprobe’s 2100-Beta Two Pole Voltage Tester)
  • LCD screen (also available on Amprobe’s 2100-Beta Two Pole Voltage Tester)
  • Voltage measurement range of up to 1000 V AC / 1200 V DC
  • CAT III 1000 V/ CAT IV 600V

In addition to these functions, the 2100-Gamma also includes Beha-Amprobe’s usual 2100 Series Two Pole Voltage Tester features:

  • RCD Trip Test/ Two Button Switchable Load – increasing the safety and accuracy of your readings. This feature will ensure that when both buttons on each pole are not pressed the device is in high impedance mode, preventing the accidental tripping of residual-current devices or earth leakage circuit breakers. When both buttons are engaged the device switches to low impedance mode, increasing the product’s accuracy as readings of ghost voltages are prevented.  In addition to this, the 2100 series is able to determine, remotely, whether RCD devices have been wired correctly. By pressing the buttons the user can trip 10mA or 30mA RCDs to carry out this test.
  • Long, durable, wear indicator test leads – The 1.5m lead has two layers of insulation. This increases the lead’s durability and safety, making testing safe, quick and convenient. The dual layering indicates when the lead will need to be replaced, as if the inner, colour-contrasting layer is visible; the lead needs to be changed.
  • Test probe protector cover with accessory storage – This test probe protector cover not only stores your 4mm test probe extensions and GS38 protective probe caps, but can also be used to open UK electrical safety outlets, adding to the 2100 series’ convenience and efficiency.

The Beha-Amprobe 2100-Gamma Two Pole Voltage Tester is ideal for the busy electrician, taking voltage and continuity tests in both domestic and industrial environments.

Beha-Amprobe 2100-Gamma Voltage Tester Key Features

  • Automatic AC/DC voltage detection with polarity indication
  • Maximum voltage test of 1000 V AC/ 1200 V DC
  • 10 mA or 30 mA RCD Trip test with switchable load and two push buttons
  • Able to test phase polarity with single pole test
  • Full range polarity detection
  • Automatic continuity test with LED visual
  • Voltage Indication LCD
  • Two pole phase rotation indication
  • Wear indication, durable, double insulated 1.5m cable
  • Useful for working in poorly lit areas due to its torch light/ measurement area illumination
  • When voltages above 50 V AC/ 120 V DC are detected, the 2100-gamma will sound an audible tone
  • Main probe single-phase voltage detection with visual and audible voltage detection indication
  • Auto power ON/OFF and OFF button
  • 100-1000 V non-contact voltage detection and indication
  • 1999Ω resistance measurement and display
  • IP 64 rating
  • GS38 approved, built according to IEC (International Electrical Commission) 61243-3:2009, EN 6124-3:2010, DIN VDE 0682-401:2011
  • CAT IV 600 V/ CAT III 1000V safety rating
  • Data hold function
  • Test probe protector cover with accessory storage and ability to open UK electrical safety outlets

What’s Included?

  • Beha-Amprobe 2100-Gamma Two Pole Voltage Tester
  • Test Probe Protector Cover with Accessory Probe and Cap Storage
  • 4mm Screwable Test Probe Extensions
  • GS38 Protective Probe Caps

Beha-Amprobe 2100-Series Two Pole Voltage Tester Comparison Table

For further information regarding the similarities and differences between Ambrobe’s 2100 Series Two Pole Voltage Testers, please see the table below.

Features2100-Alpha2100-Beta2100-Gamma
Safety Rating (Overvoltage Category)  CAT III 690/ CAT IV 600 CAT III 690/ CAT IV 600   CAT III 1000/ CAT IV 600
Voltage Range  12-690 V AC/DC 12-690 V AC/DC  6-1000 V AC/ 6-1200 V DC
Voltage Indication - LCD   12-690 V AC/DC  6-1000 V AC, 6-1200 V DC
Voltage Indication - LED (12 to 690V) √  √   √
Continuity Test (Visual and Audible Indication) √   √   √
RCD Trip Test (10mA or 30mA) √  √   √
Single Pole Phase Test  √  √    √
Full Range Polarity Detection  √  √   √
Two Pole Phase Rotation Detection  Right Right   Right/Left
Double Insulated Cable with Wear Indicator √   √   √
4mm Test Probe Extensions (Screwable) and Removeable GS38 Protective Probe Caps  √  √   √
Data Hold Function  - √   √
Resistance Measurement and Low Resistance Indication  - √
Non-Contact Voltage Detection √
IP64 Splash and Dust Proof  √  √   √
Torch Light/Measurement Area Illumination √   √   √

Beha-Amprobe 2100-Gamma Technical Specifications

 2100-Alpha2100-Beta2100-Gamma

Voltage Test

LED Voltage Range

12…690 V AC/DC

12…690 V AC/DC

12…≥690 V AC/DC

LED Indicator

±12, ±24, 50, 120, 230, 400, 690 V

±12, ±24, 50, 120, 230, 400,  ≥690 V

LED Tolerances

acc. To EN 61243-3:2010

LCD Voltage Range

-

12…690 V AC/DC

6…1000 V AC/ 6…1200 V DC

LCD Resolution

-

1 V

LCD Tolerance

-

± (3% rdg + 3 LSD)

LED and LCD Response Time

< 1s

Frequency Range

DC,  16 2/3 Hz…400 Hz

Acoustic Indication

≥ 50 V AC, ≥ 120 V DC

Voltage Detection

Automatic (AC/DC)

Polarity Detection

Full Range

Range Detection

Automatic

Current I

(load buttons not activated)

≤3.5 mA AC/DC at 690 V AC/DC

≤3.5 mAAC at 1000 VAC/ 4.5 mADC at 1200 VDC

Internal Load

(load buttons not activated)

Approximately 2.4 W at 690 V AC/DC

Approximately 3.5 W at 1000 VAC / Approximately 5.4 W at 1200 VDC

Test Current Switchable Load

(load buttons activated)

≤350 mA AC/DC at 690 V AC/DC

≤300 mAAC at 1000 VAC / ≤350 mADC at 1200 VDC

Switchable Load

(load buttons activated)

Approximately 240 W at 690 V AC/DC

Approximately 300 W at 1000 VAC / Approximately 420 W at 1200 VDC

Automatic Power ON

LED: >12 V (activated load buttons)

 >24 V (w/o load buttons)

LED: >12 V (activated load buttons)

 >24 V (w/o load buttons)

LCD: >12V

LED: >12 V

LCD: > 6V

Trip Test RCD (earth leakage circuit breaker)

Test Current Switchable Load

(load buttons activated)

>30 mAAC at 230 VAC

Single Pole Phase Test

Voltage Range

180…690 VAC against earth

100…1000 VAC against earth

Frequency Range

40Hz… 70Hz

Acoustic Indication

Yes

Indication

Red LED

Continuity Test (Rx)/ Diode Test

Range

0….500 kΩ

Tolerance

0% to +50%

Test Current

<5 μA

Acoustic Indication

Yes

Diode Test

Yes

Indication

RED LED

Overvoltage Protection

690 V AC/DC

1000 VAC/ 1200 VDC

Automatic Power ON

< 500 kΩ

Phase Rotation Indication

Voltage Range

340…440 V AC phase to phase

170…1000 V AC phase to phase

Frequency Range

47…63 Hz

40…70 Hz

Indication

Red LED

Resistance Measurement (Ω)/ Low Resistance Indication (2100-Gamma only)

Resistance Range on LCD

0….1999 Ω

Resolution

1 Ω

Tolerance

± (5% rdg + 10 LSD) at 20°C

Temperature Coefficient

± (5 LSD / 10 K)

Test Current

<30 μA

Low Resistance Indication

Acoustic Indication <10…50Ω

Overvoltage Protection

690 V AC/DC

1000 VAC/ 1200 VDC

Non-Contact Voltage Indication/ Electric Field (NCV/EF)

Voltage Range

-

100…1000 VAC

Frequency Range

-

50…60 Hz

Indication

_

3 levels shown by LCD segments

Data Hold

Data Hold

_

Only voltage measurements (12…690V AC/DC)

Voltage and resistance measurements, NCV

Measurement Illumination Area/ Torch Light

Torch Light

White LED

General Specifications

Operation Time (DT)

30s

Recovery Time

240s

Operating Temperature

-15°C to +55°C

Storage Temperature

-15°C to +55°C

Humidity

Max. 95% RH

Operating Altitude

Up to 2000m

Safety Rating (Overall Voltage Category)

CAT IV / 600V, CAT III / 690V

CAT IV / 600V, CAT III / 1000V

Pollution Degree

2

Protection Degree

IP64

Safety Regulations

IEC 61243-3:2009, EN 61243-3:2010, DIN VDE 0682-401:2011

Approvals, Compliance

GS mark from TÜV Rheinland, CE

Power Supply

Battery 2 x 1.5V (AAA/ IEC LR03)

Power Consumption

Approximately 60mA

Battery Lifetime

More than 10000 measurements (<5 s/ per measurement)

Dimensions (HxWxD)

Approximately 280 x 78 x 35 mm (11.0 x 3.1 x 1.4 in)

Weight

Approximately 320 g (0.71 lb)
