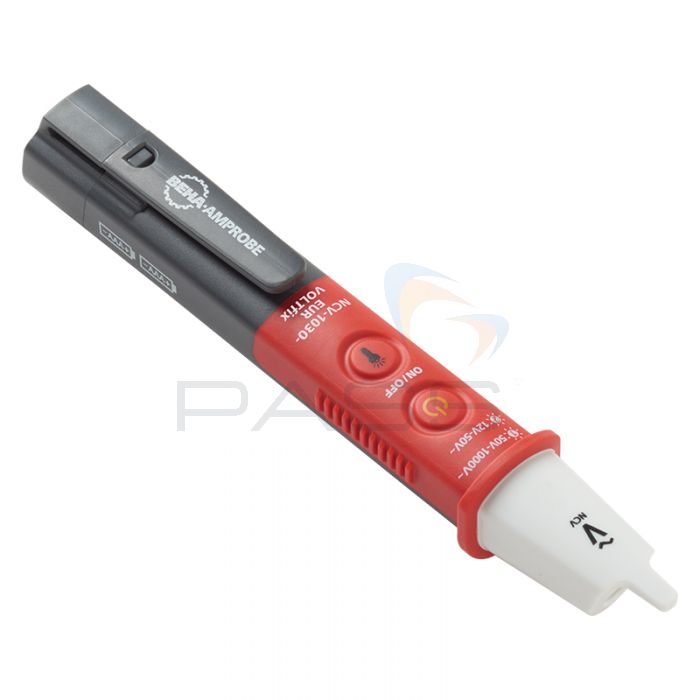

Beha-Amprobe NCV-1030-EUR VOLTFix Non-Contact Voltage Tester
Delivering maximum safety and convenience, the Beha-Amprobe NCV-1030-EUR VOLTFix Non-Contact Voltage Tester is an AC voltage indicator with a built-in work light, low battery indicator, and Auto-Power Off function. This pen-sized tester can detect AC voltages between 12V and 1000V without interrupting electrical systems and features a high-sensitivity mode (12-50V). It is CAT IV 1000V safety rated and water-/dust-resistant (IP65) making it suitable for industrial applications as well as indoor and outdoor environments.
Applications
| Detect AC Voltage | Identify the presence of AC voltage in cables, circuit breakers, wall sockets, junction boxes, fuses, extension cords. |
| Test Voltage | Detect voltage through wire insulation. |
| Identify Cable Breaks | Find cable breaks in wires, cords and lightning systems connected in series. |
| Identify Polarity | Ascertain the polarity (line vs. neutral) of receptacles and cables. |
Beha-Amprobe NCV-1030-EUR VOLTFix Non-Contact Voltage Tester Key Features
- An AC voltage indicator
- Built-in work light
- Low battery indicator
- Auto-Power-Off function
- Detects AC voltage between 12V and 1000V without interrupting electrical systems
- High-sensitivity mode: 12-50V AC
- Buzzer and LED voltage indication
- Pen-sized: fits in a shirt pocket
- CAT IV 1000V safety rated
- IP65
- Suitable for industrial applications and indoor and outdoor environments
What’s Included?
- 1x Beha-Amprobe NCV-1030-EUR VOLTFix Non-Contact Voltage Tester
- 2x 1.5V Batteries (Installed)
- User Manual
Beha-Amprobe NCV-1000-EUR VOLTFix Non-Contact Voltage Tester Technical Specifications
| Features | NCV-1020-EUR VOLTFix | NCV-1030-EUR VOLTFix | NCV-1040-EUR VOLTFix |
| Voltage detection from 50 to 1000 VAC |
✔ |
✔ |
✔ |
| NCV high sensitivity range (12 V to 50 VAC) |
✖ |
✔ |
✔ |
| Audible (buzzer) and visual (LED) voltage indication |
✔ |
✔ |
✔ |
| Magnetic solenoid detection | ✖ | ✖ |
✔ |
| On/Off switch |
✔ |
✔ |
✔ |
| IP65 rated, water/dust resistant |
✔ |
✔ |
✔ |
| CAT IV 1000 V safety rated |
✔ |
✔ |
✔ |
| Built-in work light | ✖ |
✔ |
✔ |
| Low battery indication | ✖ |
✔ |
✔ |
| Auto power off | ✖ |
✔ |
✔ |
| Specifications | |||
| Operating Voltage Range | 50-1000 VAC, 50-400 Hz | 12-50 VAC, 50-1000 VAC, 50-400 Hz | 12-50 VAC, 50-1000 VAC, 50-400 Hz |
| Voltage Indication | Bright red LED, buzzer | ||
| Magnetic Field Indication | - | - | Yellow LED |
| Detection of Magnetic Field | - | - | >2.5 mT |
| Detection | Indicates at approximately 5mm (0.2 in) distance from a wire carrying 230 VAC | ||
| Temperature Range | 0 °C to 40 °C (32 °F to 104 °F), ≤ 80% RH | ||
| Storage Conditions | -10 °C to 40 °C (14 °F to 104 °F), ≤ 85% RH | ||
| Operating Altitude | ≤ 2000 m (6561 ft) | ||
| Power Supply | 2x 1.5 V LR03 AAA batteries | ||
| Duty Cycle | Continuous | ||
| Current Consumption | Approx. 80 mA | ||
| Dimensions (L x W x H) | 156.2 x 23.5 x 27.5 mm (6.14 x 0.92 x 1.08 in) | ||
| Weight (with batteries installed) | Approx. 58 g (0.12 lb) | Approx. 60 g (0.13 lb) | Approx. 62 g (0.133 lb) |
| Safety Compliance | IEC 61010-1 3rd Ed., UL61010-1 2nd Ed. and CAN/CSA-C22.2 No. 61010-1-04 +Update No. 1:2008 to CAT IV 1000 V, Pollution degree 2, IP65 |
||
| EMC Compliance | IEC 61326-1 | ||
