Chauvin Arnoux CA1821 Datalogging Digital Thermometer - 1 Input

Chauvin Arnoux CA1821 Datalogging Digital Thermometer - 1 Input
sku: P01654821
MPN: P01654821

Free UK Delivery On Orders Over £40
  • Measure and record temperature from a single measurement point
  • User-configurable start/stop time, measurement interval and alarms
  • Download data to PC via USB and Bluetooth connection

Was: £141.00
You Save: £14.35
£126.65 Incl. VAT £151.98
Members earn 253 points

Do you have a question or found it cheaper? Contact us

Description

Chauvin Arnoux CA1821 Datalogging Digital Thermometer - 1 Input Details

Please note that this thermometer does not include any temperature probes as standard. Please visit our temperature probes category for compatible probes, or download the attached datasheet for a list of recommended probes.

The Chauvin Arnoux CA1821 is a single-input, datalogging digital thermometer which allows you to log temperature readings from a single attached temperature probe over a period of time.

Suitable for use with type J, K, T, N, E and R thermocouple temperature probes, you can use the CA1821 in any temperature measurement application, provided you have the correct probe. For example, the CA1821 could be combined with a surface temperature probe for measuring the temperature of a metallic surface, or perhaps something like measuring food temperature. You could also use it to measure air temperatures, liquid temperatures and the temperature of pipes.

If you wish to record temperature over a time period, you can set the interval at which the meter will log from every minute up to 2 hours. You can also set a start date and end date using the included PC software, then plug the meter in afterwards to download results. Results can be downloaded and displayed in table or graphical formats, with easy export into Excel spreadsheets or JPG image files. The software is also fully suitable for logging in real time as the meter is still measuring.

The temperature range, resolution and accuracy of measurement results will vary depending on which temperature probe you use alongside the CA1821. For more information on these specs, see the technical specifications section further below the page.

Thanks to a built-in magnet, you can use the CA1821 completely hands-free. Just configure, place on a metallic surface and leave to log over your defined measurement period.

Chauvin Arnoux CA1821 Digital Thermometer Key Features

  • Measure and record temperature from a single temperature probe over a defined period of time
  • Compatible with type J, K, T, N, E, R and S thermocouple temperature probes (sold separately)
  • Wide, backlit display
  • Single input miniature female connector
  • Record thousands of temperature readings and download to PC for further analysis
  • User-definable logging rate - use the included software to set a time from every minute up to 2 hours, complete with start and end dates
  • Configurable alarms - set your own alarms using the software. A visual alert will flash if exceeded
  • Set the meter to start logging when alarms are triggered
  • Switch between Celsius and Fahnreheit measurement modes
  • Long battery life - up to 1000 hours in portable mode, or 3 years of recording with 15 minute measurement interval
  • Export your data into the software as tables and graphs
  • Real-time viewing of measurement data on PC
  • USB and Bluetooth wireless communication
  • Automatic power off function (can be configured)
  • Built-in magnet for hands-free use

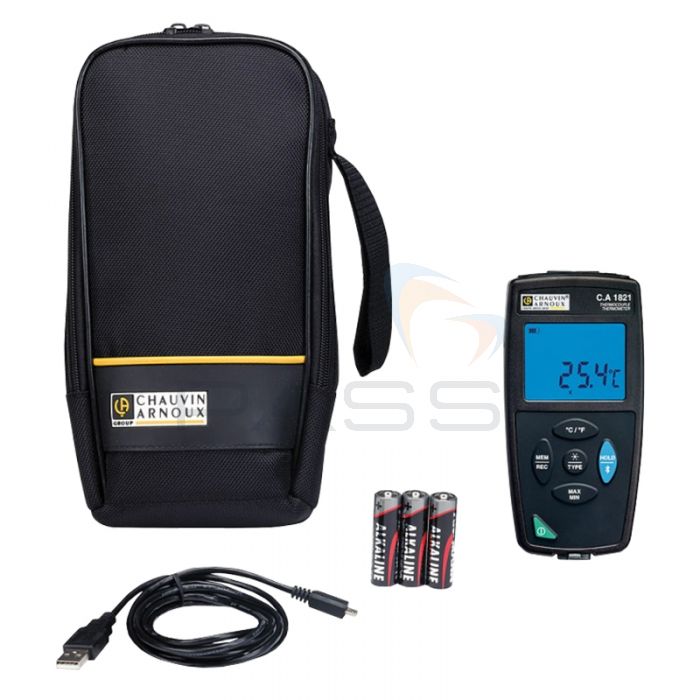

What's Included?

  • Chauvin Arnoux CA1821 Digital Thermometer
  • Carrying Bag
  • 3 x 1.5V AA Batteries
  • USB Cable
  • Test Report
  • Quick Startup Guide

(Software/user manual available from Chauvin Arnoux website)

Technical Specs

Part Code: P01654821

Chauvin Arnoux CA1821 Technical Specifications

Measurements
Measurement Range J - 210 to + 1,200 °C -346 to + 2,192 °F
K - 200 to + 1,372 °C -328 to + 2,501 °F
T - 250 to + 400 °C -418 to + 752 °F
N - 200 to + 1,300 °C -328 to + 2,372 °F
E - 150 to + 950 °C -238 to + 1,742 °F
R - 0 to + 1,767 °C 32 to + 3,212 °F
S - 0 to + 1,767 °C 32 to + 3,212 °F
Resolution Display in °C: ø < 1,000 °C : 0.1 °C and ø ≥ 1,000°C : 1 °C
Display in °F: ø < 1,000 °F : 0.1 °F and ø ≥ 1,000°F : 1 °F
Intrinsic Uncertainty in Degrees C (J. K. T. N. E)
ø ≤ - 100°C ± (0.2% Reading + 0.6°C)
- 100°C < ø ≤ + 100°C ± (0.15% R + 0.6°C)
+ 100°C < ø ± (0.1% R + 0.6°C)
(R. S)
ø ≤ + 100°C ± (0.15% R + 1.0°C)
+ 100°C < ø ± (0.1% R + 1.0°C)
Functions
Recording Manual start/stop on the product
Short press on MEM: spot recording / Long press on REC: recording at the rate of the current mode
Programmed recording
Start date, recording rate (interval from 1 minute to 2 hours) and end date can be customized with the PC software
Alarms Alarm thresholds set using the software. Visual alert on the product in the event of an overrun
Recording can be triggered on alarm thresholds
Data Storage More than 1 million points
MIN/MAX/HOLD Yes
Units Celsius or Fahrenheit (selectable)
Backlight Yes
Automatic Power Off Yes (configurable)
Power Supply
Type 3 x 1.5V AA / LR6 alkaline batteries
Mains connection possible using optional mains/micro USB adapter
Battery Life 1000 hours (portable mode)
3 years for recording (assumes 15 minute measurement interval)
Physical Specifications
Interfaces 2: Bluetooth and USB
Fixations

Casing equipped with a magnet, a wall-mount system and a slot for suspension of the thermometer.
Compatible with Multifix accessory. Sheath available as accessory

Connections Compensated miniature female connectors
Dimensions 150 x 72 x 32mm
Weight 260g (with batteries)
Ingress Protection IP54 (casing)
Product Operating Range Temperature from -10 to +60°C
Humidity from 10 to 90% RH
Other Specifications
Windows Data Logger Transfer Software Functions Real-time mode
Automatic report generation in Word format
Data format compatible with Dataview software
Graph or value-table presentation
Data export in graph or Excel table format
Warranty 2 years
