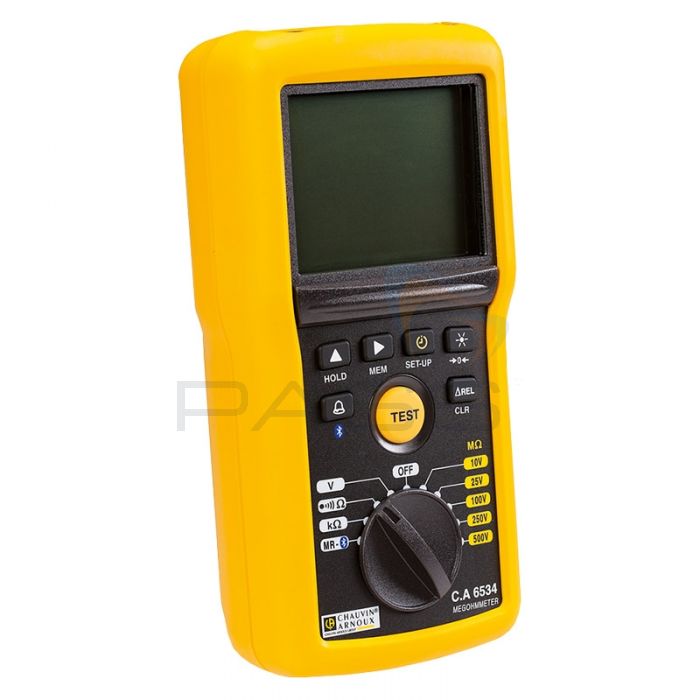

Chauvin Arnoux CA6534 Electronics Megohmmeter
The Chauvin Arnoux CA6534 Electronics Megohmmeter functions as both an insulation and continuity tester and digital multimeter. It includes a number of test functions optimised for the electronics industries.
The Chauvin Arnoux CA6534 Electronics Megohmmeter is able to perform the following tests:
- Insulation: test voltage of 10 to 500V with a measurement range 2KΩ to 50GΩ
- Continuity: 0 to 100Ω (20mA/ 200mA measurement current)
- Resistance: 0 to 1000kΩ
- Voltage: 0.3V to 700V DC
The Chauvin Arnoux CA6534 Electronics Megohmmeter is ideal for both low-current applications and power stages. Also adding to this product's scope-for-use is its ability to conduct electrostatic discharge applications, its 10V and 100V test voltages can also be used with appropriate electrodes to faciltate these tests.
The measurements taken using the Chauvin Arnoux CA6534 Electronics Megohmmeter are indicated on its backlit dual, digital display with a logarithmic bar graph. Via the secondary display, the user can view the actual test voltage, the test current and the measured value. In addition to this, when the megohmmeter is used with Alarm function if one of the upper or lower limits is breached this will be indicated on the secondary display. Furthermore, when the Reference function is engaged any reading that differs from the reference value will be displayed on the secondary display, along with the value and percentage of the differentiation.
The Chauvin Arnoux CA6534 Electronics Megohmmeter includes a number of modes and functions which facilitate the user’s ability to tailor the Chauvin Arnoux CA6534 Electronics Megohmmeter to his/her requirements. These modes and functions include:
- Manual Mode
- Lock mode – this mode will lock the instrument into performing an insulation test until the mode button is pressed for a second time or fifteen minutes have elapsed. This mode is particularly useful for conducting hands-free measurements.
- Timer mode – again this mode facilitates hands-free operation as it allows the user to conduct tests over pre-programmed durations. The user is able to set test lengths between 1 and 39:59 minutes.
- Alarm function – as indicated above the user is able to set upper and lower thresholds for measurement tests (insulation and continuity) which are indicated on the screen. If these limits are breached the Chauvin Arnoux CA6534 Electronics Megohmmeter will issue a visible and audible signal.
- Reference function – ideal for measuring the difference in resistance between two wires. As indicated previously, when this mode is engaged the megohmmeter will indicate measurements that differ from the reference value via the display.
With regards to this product’s physicality, also adding to its ease-of-use is its magnetic stand which allows the user to mount the tester on a metal surface, again facilitating hands-free measurements.
Further to this, its 600V CAT IV, IP54/ IK04 casing ensures that it is suitable for use within a variety of rugged environments, whilst the design of its operating system means that it remains easy-to-use even when wearing safety gloves.
In addition to the aforementioned safety and ingress protection standards, this compact and lightweight tester is also compliant with the IEC 61557 standard with regards to its continuity test (200mA current) and insulation test (up to 2GΩ) functions. Moreover, the Chauvin Arnoux CA6534 Electronics Megohmmeter’s continuity test is equipped with an active fuseless protection for when a voltage is present, adding to the safety of this instrument.
In addition to its ergonomic and safety features, as well as its measurement capabilities, the Chauvin Arnoux CA6534 Electronics Megohmmeter has been designed to accommodate efficient data collection and as such includes an internal memory cable of storing up to 1300 records. These records may be transferred to other compatible devices via Bluetooth or by may be sent to a PC using the Megohmmeter Transfer (MEG) Software. Once transferred the user is able to view the readings according to measurement type. Furthermore, this software may be used to conduct tests remotely; the operator can view the results via a real-time graphical display.
Finally, this instrument is also compatible with Chauvin Arnoux’s DataView® Software (NOT included), which allows the user to create customised measurement reports including the site location and operator details.
The Chauvin Arnoux CA6534 Electronics Megohmmeter is a sophisticated, rugged and adaptable instrument, ideal for conducting a variety of tests within the electronics industries.
Chauvin Arnoux CA6534 Electronics Megohmmeter Key Features
- Functions as both an insulation and continuity tester and digital multimeter
- Optimised for use in the electronics industries
- Insulation: test voltage of 10 to 500V with a measurement range 2KΩ to 50GΩ
- Continuity: 0 to 100Ω (20mA/ 200mA measurement current)
- Resistance: 0 to 1000kΩ
- Voltage: 0.3V to 700V DC
- Ideal for low-current applications and power stages
- 10V and 100V test voltages can be used with appropriate electrodes for electrostatic discharge application
- Backlit, dual, digital display with logarithmic bar graph
- View the actual test voltage, the test current and measured value via the secondary display
- Breaches of upper or lower limits are indicated on the secondary display
- Measurements which differ from the reference measurement, as well as the calculated variation value and percentage, are indicated on the second display when the reference function is engaged
- Manual mode
- Lock mode
- Timer mode
- Alarm function
- Reference function
- Magnetic stand
- 600V CAT IV and IP54/ IK04 casing
- Easy to use even when wearing safety gloves
- Compact and lightweight
- Continuity test (200mA current) is compliant with the IEC 61557 standard
- Insulation test (up to 2GΩ) is compliant with the IEC 61557 standard
- The continuity test is equipped with active fuseless protection for when a voltage is present
- Internal memory can store up to 1300 measurements
- Bluetooth connectivity
- Transfer records to a PC using the included Megohmmeter Transfer (MEG) Software
- Megohmmeter Transfer (MEG) Software can be used to operate the instrument remotely
- Using the Megohmmeter Transfer (MEG) Software the operator can view results on a real-time graphical display
- Compatible with Chauvin Arnoux’s DataView® Software (NOT included)
- Sophisticated, rugged, adaptable instrument
What’s Included?
- Chauvin Arnoux CA6534 Electronics Megohmmeter
- Carry Bag
- 2x 1.5m Elbowed-straight Safety Leads (red and black)
- 1x Red Crocodile Clip
- 1x Black Test Probe
- 6x LR6/ AA Batteries
- Multilingual User Manual on CD
- Quick Start-up Guide
- Multilingual Safety Data Sheet
- Megohmmeter Transfer (MEG) Software CD
- 2x Wire-grips (red and black)
Chauvin Arnoux CA6534 Electronics Megohmmeter Technical Specifications and Comparison Table
The Chauvin Arnoux CA6534 Electronics Megohmmeter is part of Chauvin Arnoux's CA65XX Series of Megohmmeters; please find below two tables detailing the comparisons between these models and their technical specifications.
Comparison Table
| Function | C.A 6522 | C.A 6524 | C.A 6526 | C.A 6532 | C.A 6534 | C.A 6536 |
| Applications | Industrial maintenance | Telecom | Electronics / ESD | Special | ||
| Test voltage | 250-500-1,000 V | 50-100-250-500-1,000 V | 50-100 V | 10-25-100-250-500 V | 10 to 100 V 1 V increments | |
| Range | 40 GΩ | 200 GΩ | 200 GΩ | 20 GΩ | 50 GΩ | 20 GΩ |
| I leakage | - | X | X | X | X | X |
| Manual / Lock / Duration modes | X | X | X | X | X | X |
| PI / DAR ratios | - | X | X | X | - | - |
| Alarms | - | X | X | X | X | X |
| ∆REL | - | X | X | X | X | X |
| Continuity | X | X | X | X | X | X |
| Voltage | X | X | X | X | X | X |
| Frequency | - | X | X | X | - | - |
| R | - | X | X | X | X | X |
| Capacitance | - | - | X | X | - | - |
| Distance = f(C | - | - | - | X | - | - |
| Magnetic mounting | - | X | X | X | X | X |
| Storage | - | X | X | X | X | - |
| Communication | - | - | X | X | X | - |
| Categories | CAT IV 600 V | |||||
| Display | Double + bargraph | |||||
Technical Specifications
| Technical Specification | C.A 6522 | C.A 6524 | C.A 6526 | C.A 6532 | C.A 6534 | C.A 6536 |
| Voltage | ||||||
| Measurement range / Resolution | 0.3 V-399.9 V / 0,1 V; 400 V-700 V / 1 V | |||||
| Accuracy / Input impedance | ± (3 % + 2 cts) / 400 kΩ | |||||
| Operating frequency | DC; 15.3-800 Hz | |||||
| Frequency | ||||||
| Measurement range / Resolution / Accuracy | - | 15.3 Hz-399.9 Hz / 0.1 Hz / ± (1 % + 2 cts); 400-800 Hz / 1 Hz / ± (1 % + 1 ct) | - | - | ||
| Insulation | ||||||
| Test voltage | 250-500 -1,000 V | 50 - 100 - 250 - 500 - 1,000 V | 50 - 100 V | 10- 25 - 100 - 250 - 500 V | 10 V to 100 V in 1 V steps | |
| Range at maximum test voltage | 40 GΩ | 200 GΩ | 20 GΩ | 50 GΩ | 20 GΩ | |
| Compliance with IEC 61557-2 standard | 2 GΩ | 2 GΩ | 2 GΩ | |||
| Measurement range: 10 V | - | - | - | - | 2 kΩ - 1 GΩ | 2 kΩ - 2 GΩ |
| 25V | - | - | - | - | 5 kΩ-2 GΩ | (UN/5) kΩ - |
| 50V | - | 10 kΩ-10 GΩ | 10 kΩ-10 GΩ | - | (UN/5) GΩ | |
| 100 V | - | 20 kΩ-20 GΩ | 20 kΩ-20 GΩ | 20 kΩ-10 GΩ | 20 kΩ-20 GΩ | |
| 250V | 50 kΩ-10 GΩ | 50 kΩ-50 GΩ | - | 50 kΩ-25 GΩ | - | |
| 500V | 100 kΩ-20 GΩ | 100 kΩ-100 GΩ | - | 100 kΩ-50 GΩ | - | |
| 1000V | 200 kΩ-40 GΩ | 200 kΩ-200 GΩ | - | - | - | |
| Variable test voltage | - | - | - | - | - | 10 V to 100 V |
| Measurement range / Resolution |
10(1)-999 kΩ and 1.000-3.999 MΩ / 1 kΩ; 4.00 - 39.99 MΩ / 10 kΩ; 40.0-399.9 MΩ / 100 kΩ; 400 - 3,999 MΩ / 1 MΩ; 4.00 - 39.99 GΩ / 10 MΩ; 40.0 - 200 GΩ / 100 MΩ |
|||||
| Accuracy | ± (3 % + 2 cts)(2) | ± (3 % + 2 cts)(3) | ||||
| Test voltage (I < 1 mA | -0 % + 20 % | ± 0.5 V | ||||
| Display of test voltage | ± (3 % + 3 cts) | ± (3 % + 3 cts) | ||||
| Display of test current / resolution | - | 0.01 µA - 39.99 µA / 10 nA; 40.0 -399.9 µA / 100 nA; 0.400 -2.000 mA/ 1 µA | ||||
| Accuracy of test current | - | ± (10 % + 3 cts) | ||||
| PI/DAR ratios | - | 10 min / 1 min - 1 min / 30 s | - | - | ||
| Timer (min:s) | 0:00 - 39:59 | |||||
| Discharge time (at 25V) | - | < 2 s/µF | ||||
| Alarms | - | 2 fixed thresholds + 1 programmable threshold | ||||
| Continuity | ||||||
| Range for continuity measurement | 0.00 Ω-10.00 Ω (200 mA) | 0.00 Ω-10.00 Ω (200 mA); 0.0 -100.0 Ω (20 mA) | ||||
| Accuracy / Open-circuit voltage | ± (2 % + 2 cts) / ≥ 6 V | |||||
| Measurement current | 200 mA range: 200 mA (-0 mA +20 mA); 20 mA range: 20 mA ± 5 mA | |||||
| Continuity thresholds (quick beep) | 2 Ω fixed | 2 Ω, 1 Ω, programmable threshold | ||||
| Compensation of cables | up to 9.99 Ω | |||||
| Resistance | ||||||
| Measurement range / Resolution / Accuracy | - |
0 -3,999 Ω / 1 Ω; 4.00 kΩ - 39.99 kΩ / 10 Ω / ± (3 % + 2 cts) 40.0 kΩ - 399.9 kΩ / 100 Ω; 400 kΩ-1,000 kΩ / 1 kΩ / ± (3 % + 2 cts) |
||||
| Capacitance | ||||||
| Measurement range / Resolution | - | - |
0.1 nF -399.9 nF / 0.1 nF 400 nF -3,999 nF / 1 nF 4.00 µF -10.0 µF / 10 nF |
- | - | |
| Accuracy | - | - | ± (3 % + 2 cts) | - | - | |
| Line length | - | - | - | 0 -100 km | - | - |
| Gerneral Specifications | ||||||
| Display | 2 x 4,000 cts + logarithmic bargraph | |||||
| Storage | - | 300 measurements | 1,300 measurements | - | ||
| Communication | - | - | Bluetooth® Class II | - | ||
| Power supply / Automatic shutdown | 6 x LR6(AA) batteries / 5 min, deactivatable | |||||
| Battery life | 1,500/2,500/6,000 measurements (4): UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF) | |||||
| Dimensions (h x w x d) / Weight / IP rating | 211 x 108 x 60 mm / 850 g / IP 54 / IK 04 | |||||
| EMC / Electrical safety | IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600 V CAT IV | |||||
| Compliance with standards | IEC 61557 parts 1, 2, 4 and 10 |
|||||
| SKU | P01140834 |
|---|---|
| Manufacturer Part Code | P01140834 |
| Country of Origin | France |
