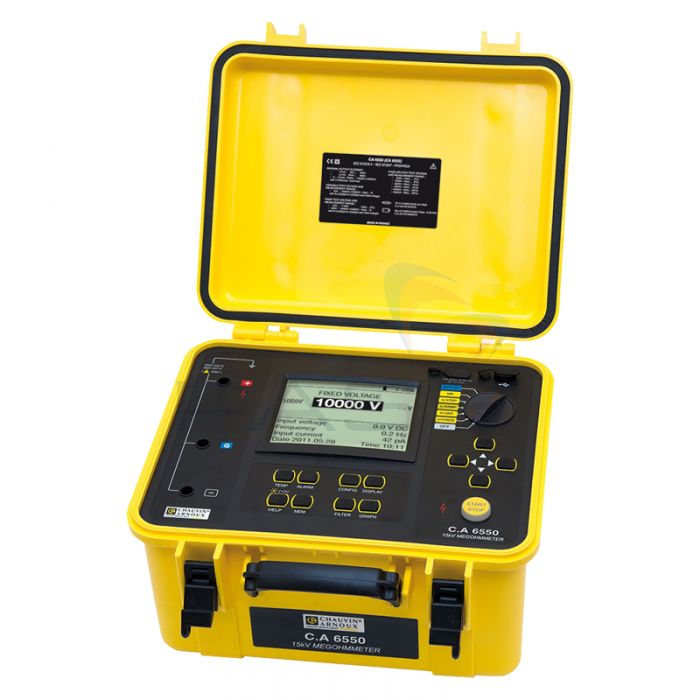

Chauvin Arnoux CA6550 Megohmmeter Digital

Chauvin Arnoux's CA6500 range of megohmmeters are purpose-built for testing on high voltage applications such as transformers, cables, rotating machinery and more.

This device uses test voltages of 500V, 1000V, 2500V, 5000V and 10000V, giving this device the ability to measure resistance levels across five ranges. These ranges are:

  • 500V: 10 kΩ to 2 TΩ
  • 1,000V: 10 kΩ to 4 TΩ
  • 2,500V: 10 kΩ to 10 TΩ
  • 5,000V: 10 kΩ to 15 TΩ
  • 10,000V: 10 kΩ to 25 TΩ

The test voltage used can be either a fixed value as defined above, or alternatively can be user adjusted between a range of 40 to 10000V with 3 presettable voltage values. Voltage can then be increased in increments of 40-10kV steps.

As well as insulation resistance measurements this megohmmeter can also be used to carry out voltage measurements from 0 to 2500V AC and 0 to 4000V DC, capacitance from 0.001 to 9.999μF and 10.00-49.99μF and leakage current measurements from 0-8mA.

Once testing is completed, the tester will automatically discharge itself to maintain accuracy. Since overall reduction in insulation integrity can result in incorrect readings, the CA6550 also includes the ability to carry out PI, DAR and DD quality ratio testing and can also calculate reference temperatures.

This tester comes as standard built into its own protective carrying case with large LCD graphical screen. It also has built-in memory, allowing it to store and download a significant amount of testing data.

The CA6550 runs on rechargeable batteries and is CAT IV 1000V rated and compliant with IEC 61010-1 and IEC 61557.

Chauvin Arnoux CA6550 Digital Megohmmeter Key Features

  • Measures insulation resistance up to 25TΩ
  • Five selectable test voltages of 500V, 1000V, 2500V, 5000V and 10000V
  • Go/No Go testing
  • Tests with programmable duration
  • Polarisation index, dielectric absorption ratio and dielectric discharge testing
  • Fixed voltage mode
  • Ramp mode
  • Step mode
  • Voltage, capacitance and leakage current measurements
  • Calculation of R at reference temperature
  • Graphical display
  • Built inside its own protective carrying case
  • Large size memory stores thousands of measurements (with download options)
  • Rechargeable Batteries

Full List of Products Included

  • Chauvin Arnoux CA6550 Digital Megohmmeter
  • Carrying Bag
  • 2 x 3m Safety Leads with HV Plugs (Red/Blue)
  • 3m Guard Test Leads with HV Plug and Rear Connector (Black
  • 3 x Crocodile Clips (Red, Blue and Black)
  • 2 x CAT IV 1000V Test Probes (Red/Black
  • Blue Lead with Rear Connection
  • 2m Mains Power Cable
  • DataView Software Package
  • Optical/USB Communication Lead
  • Operating Manual (CD-ROM and Print)
  • 5 Specification Labels

Chauvin Arnoux CA6550 Technical Specifications/Comparison Chart

The following chart outlines the functions of the CA6550 and its sister device, the CA6555.



CA6550

CA6555

Test Voltages   10kV 15kV
Test Voltages Ranges 500V: 10kΩ to 2TΩ
1000V: 10kΩ to 4TΩ
2500V: 10kΩ to 10TΩ
5000V: 10kΩ to 15TΩ
500V: 10kΩ to 25TΩ
      15000V: 10kΩ to 30TΩ
  Fixed Test Voltages 500 / 1,000 / 2,500 / 5,000 / 10,000 V 500 / 1,000 / 2,500 / 5,000 / 10,000 / 15,000 V
  Variable Test Voltages 40 V - 10,000 V
3 Settable Voltage Values
40 V - 15,000 V
3 Settable Voltage Values
  Adjustment Increment
for Variable Voltages
Variable: 40-10 kV step : 40 V-1 kV: 10 V
1 kV-10 kV: 100 V
Variable: 40-15 kV step: 40 V-1 kV: 10 V
1 kV-15 kV: 100 V
  Ramp Mode 3 presettable ramps: start voltage / end voltage / duration
  Ramp Configuration Mode 40-1,100 V / 500-10,000 V 40-1,100 V / 500-15,000 V
  Step Mode Up to 10 steps (value and duration con gurable for each step)
Voltage Measurement After Test   AC: 0 – 2,500 V / DC: 0 – 4,000 V
Capacitance Measurement   0.001-9.999 μF / 10.00-49.99 μF
Leakage Current Measurement   0 - 8 mA
Discharge After Test   Yes/Automatic
Additional Test Stop Modes I-limit Programmable: 0.2-5 mA
Early Break di/dt
Timer Up to 99 minutes 59 seconds
Burning Mode Burning Constant Testing
Ratio Calculation   PI, DAR, DD
Calulcation of R at ref. T°   Yes
Measurement Display Filter   3 Filters with 3 Possible Time Constant
Graphs on Display   R(t)+u(t); i(t); i(u);
Storage   256 recordings, 80,000 points : R, U, I and date
Communication   Optically-isolated port for USB and RS232 links
PC Software   DataView
Power Supply   NiMH rechargeable batteries, 8x 1.2 V / 4,000 mAh
charging by external voltage: 90-260 V 50/60 Hz
Battery Charging   Battery charging possible while performing insulation measurements
Electrical Safety   1,000 V CAT IV - IEC 61010-1 and IEC 61557
EMC, Mechanical Protection, Altitude   EN 61326-1 , IP54 , 3,000 m
Dimensions and Weight   LxWxH: 340 x 300 x 200 mm, 6.2 kg approx. (excluding accessories)
