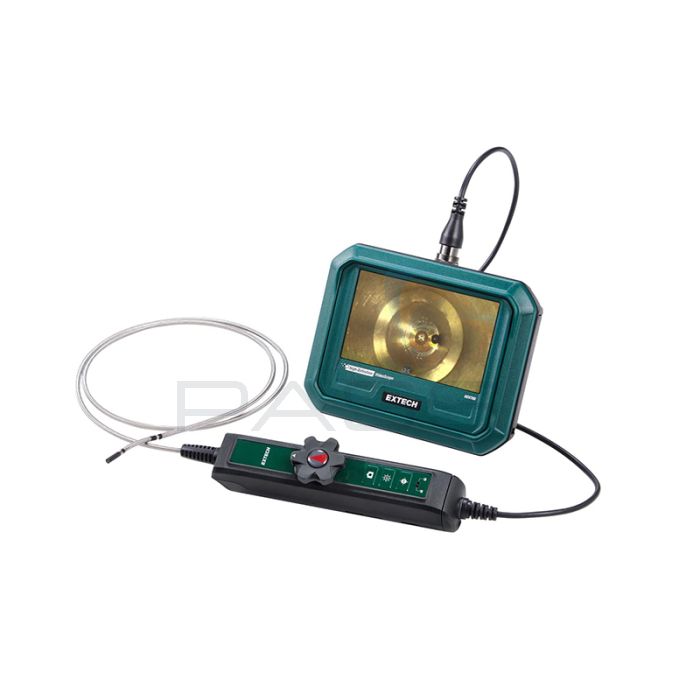

Extech HDV730 Videoscope Kit (with Ø 3.9mm x 1m 2-Way Articulating Camera Probe)
Designed for condition monitoring in manufacturing, HVAC/R, plumbing, building, and automotive industries, the Extech HDV730 Videoscope Kit includes:
- 1x Extech HDV700 High-Performance Videoscope
- 1x Extech HDV7C-A2-39HD-1 Ø 3.9mm x 1m HD Camera Probe
Extech HDV700 High-Performance Videoscope Overview
Designed for use with the supplied Extech HDV7C-A2-39HD-1 Ø 3.9mm x 1m HD Camera Probe, the Extech HDV700 High-Performance Videoscope is a lightweight and versatile borescope. It is ideal for inspecting hard-to-reach areas and checking difficult-to-access components without disassembling equipment. Clear, bright footage is indicated on the five-inch capacitive touchscreen display. Videos and images can be saved with voice annotations or photo notes. Furthermore, data management is made easy due to the Extech HDV700 High-Performance Videoscope’s Session and Tag features.
Follow this link for more information about the Extech HDV700 High-Performance Videoscope.
Extech HDV7C-A2-39HD-1 Ø 3.9mm x 1m HD Camera Probe Overview
This two-way 180° articulating probe is waterproof (IP67), has a length of 1m, and a diameter of 3.9mm. Made from flexible stainless-steel mesh, the Extech HDV7C-A2-39HD-1 Ø 3.9mm x 1m HD Camera Probe can be used with Extech’s HDV700 High-Performance Videoscope to inspect difficult-to-access areas or components.
To find out more about the Extech HDV7C-A2-39HD-1 Ø 3.9mm x 1m HD Camera Probe please click here.
What’s Included?
- Extech HDV700 High-Performance Videoscope
- Extech HDV7C-49-DUAL-1 Ø 3.9mm x 1m HD Camera Probe
- 32 GB Micro SD Card
- USB-A to USB-C Cable
- HDMI Type A to Type D Cable
- Built-in Li-ion Rechargeable Battery
- Universal Adapter
Extech HDV700 High-Performance Videoscope Technical Specifications
| Display (Resolution) | 5” color TFT (800 × 480) |
| Touchscreen (Backlight) | Capacitive touch (500 nits) |
| Image/Video Format | JPEG (1280 × 720)/MP4 (1280 × 720) |
| Voice and Text Annotation | Yes |
| Video Output | Micro HDMI |
| Data Communication Interface | USB-C, Micro SD |
| Storage Capacity | Up to 64 GB micro SD (32 GB microSD included) |
| Battery Type (Life) | Rechargeable 3.6 V Li-ion (5 hours) |
| Tripod Mount | UNC ¼”-20 |
| Power | 5 V, 3 A DC with universal adapters (US, EU, UK, AU) |
| Drop Test | 1 m (3.28 ft) |
| IP Rating | Videoscope Screen: IP54 Camera probe: IP67 |
| Dimensions [W × H × D] | 161.9 mm × 127.9 mm × 30 mm (6.38 in × 5.04 in × 1.18 in) |
| Weight | 705 g (1.55 lb) |
Extech HDV700 Series Camera Probes
| Model Number | Diameter | Length | Probe Flexibility | Resolution | Depth Of Field | Field of View | Direction of View |
| General Purpose | |||||||
| HDV7C-55-HD-1 | 5.5 mm | 1 m | Semi-rigid | 1280 × 720 | 10 mm to infinity | 90˚ | Forward |
| HDV7C-55-3 | 5.5 mm | 3 m | 640 × 480 | ||||
| Dual View Inspection | |||||||
| HDV7C-49-DUAL-1 | 4.9 mm | 1 m | Semi-rigid | 1280 × 720 | 10 mm to infinity | 90˚ | Forward & Side |
| 2-Way 180˚Articulation Camera | |||||||
| HDV7C-A2-39-HD-1 | 3.9 mm | 1 m | Flexible, Stainless Steel Mesh |
1280 × 720 | 10 mm to infinity | 90˚ | Forward |
| HDV7C-A2-45-15 | 4.5 mm | 1.5 m | 640 × 480 | ||||
| 4-Way 110˚Articulation Camera | |||||||
| HDV7C-A4-60-1 | 6 mm | 1 m | Flexible, Stainless Steel Mesh |
640 × 480 | 10 mm to infinity | 87.1˚ | Forward |
| HDV7C-A4-60-3 | 6 mm | 3 m | 640 × 480 | ||||
| Pipe Inspection | |||||||
| HDV7C-P28-30 | 28 mm | 30 m | Fiberglass | 640 × 480 | 10 mm to infinity | 150˚ | Forward |
| SKU | HDV730 |
|---|---|
| Manufacturer Part Code | HDV730 |
