Extech SDL200 4 Channel Datalogging Thermometer

Extech SDL200 4 Channel Datalogging Thermometer
sku: SDL200
MPN: SDL200

Free UK Delivery On Orders Over £40
  • 4-Channel datalogging with 6 Thermocouple types (J, K, E, T, R,S) and 2-Channel datalogging with RTD (Pt100Ohm) probes
  • Records readings with real date and time stamp
  • User programmable sampling rate: 1 to 3600 seconds

Was: £300.49
You Save: £81.00
£219.49 Incl. VAT £263.39
Members earn 438 points

Do you have a question or found it cheaper? Contact us

Description

Extech SDL200 4 Channel Datalogging Thermometer Details

A comprehensive solution for measuring temperature, the Extech SDL200 is capable of carrying out up to four temperature measurements at the same time and store this information directly onto an SD card for future reference.

It's a tool that's suitable for use either performing standalone single measurements of can alternatively be used to accurately track temperature over a time period by allowing the user to choose between different sampling rate times between a range of 1 to 3600 seconds. If you're needing to look at the overall efficiency of a system or need to carry out any other types of continuous temperature measurement the SDL200 is certainly a great tool for the job.

This unit also includes the ability to connect up to 6 different thermocouples (J, K, E, T, R and S) and can also be used to connect to PT100 RTD probes to carry out 2-channel RTD temperature datalogging. When probes are connected up to this thermometer the device will relay testing information through its LCD screen which can display T1, T2, T3, T4 or differential T1-T2 readings.

The built-in memory of this unit allows it to store up to 99 individual testing records. It also ships as standard with a 2GB SD card which can be used to expand the overall memory of the unit to 20 million records (this card also allows the device to download to PC).

In addition to the features listed so far the Extech SDL200 also includes offset adjustment, real time data and time stamping, MIN/MAX and data hold functions.

Extech SDL200 4 Channel Datalogging Thermometer Key Features

  • 4 channel measurements - allows measurements of four points at the same time
  • Displays T1, T2, T3, T4 or differential T1-T2 readings
  • Offset adjustment function allows zero function to be used during relative measurements
  • Stores up to 99 records on internal memory
  • 2GB SD card expands memory range up to 20M
  • Readings are stamped with time and date for easy reference
  • User programmable sampling rate between 1 and 3600 seconds
  • MIN/MAX functions
  • Data hold function
  • Auto power off with disable function
  • Built in PC interface
  • Compatible with six different thermocouple types (J, K, E, T, R and S)
  • Type J measurement range: -148 to 2102°F (-100 to 1150°C)
  • Type K measurement range: -148 to 2372°F (-100 to 1300°C)
  • Type T measurement range: -58 to 752°F (-50 to 400°C)
  • Type E measurement range: -58 to 1652°F (-50 to 900°C)
  • Type R measurement range: 32 to 3092°F (0 to 1700°C)
  • Type S measurement range: 32 to 2732°F (0 to 1500°C)

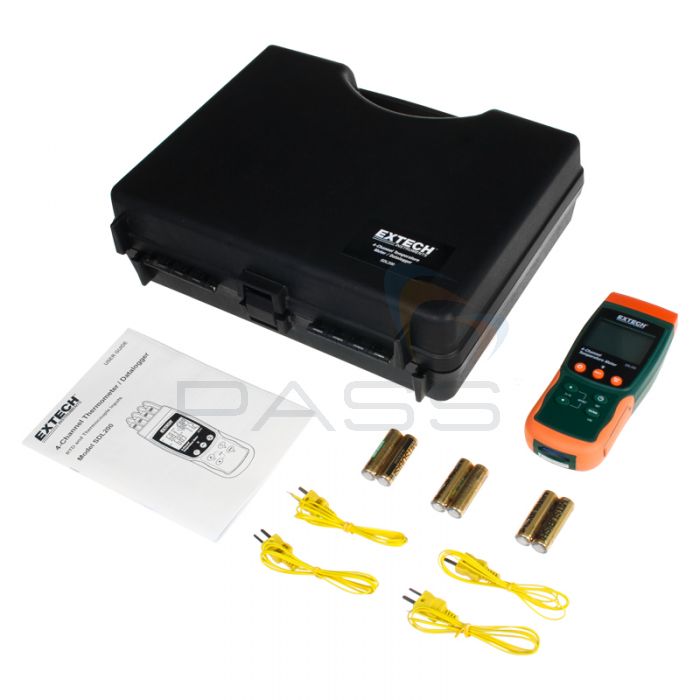

Full List of Products Included

  • Extech SDL200 4 Channel Datalogging Thermometer
  • 6 x AA Batteries
  • 4 x General Purpose Type K Bead Wire Temperature Probes
  • SD Card
  • Hard Carrying Case
Accessories (7)

Extech TP200 Type K Pipe Clamp Temperature Probe
Was: £36.38
You Save: £7.38
£29.00 Incl. VAT £34.80
Extech TP870 Bead Wire Type K Temperature Probe (40 to 482 Degrees F)
Was: £14.07
You Save: £3.07
£11.00 Incl. VAT £13.20
Extech TP875 Bead Wire Type K Temperature Probe (58 to 1000 Deg F)
Was: £29.10
You Save: £4.37
£24.73 Incl. VAT £29.68
Extech TP882 Type K Penetration Probe (50 to 1000 Deg F)
Was: £40.94
You Save: £8.17
£32.77 Incl. VAT £39.32
Extech 881602 Type K Surface Probe (58 to 1472 Deg F)
Was: £63.70
You Save: £9.55
£54.15 Incl. VAT £64.98
Extech TP400 High Temperature Type K Pipe Clamp ( 4 to 450 Deg F)
Was: £72.81
You Save: £10.92
£61.89 Incl. VAT £74.27
Extech 881603 Type K Immersion Temperature Probe
Was: £45.49
You Save: £12.72
£32.77 Incl. VAT £39.32
Technical Specs

Part Code: SDL200

Extech SDL200 Technical Specifications

Type J -148 to 2102°F (-100 to 1150°C)
Type K -148 to 2372°F (-100 to 1300°C)
Type T -58 to 752°F (-50 to 400°C)
Type E -58 to 1652°F (-50 to 900°C)
Type R 32 to 3092°F (0 to 1700°C)
Type S 32 to 2732°F (0 to 1500°C)
RTD (Pt100) -327 to 1562°F (-200 to 850°C)
Resolution 0.1°/1°
Basic Accuracy ±0.4% rdg (+1.8°F/+1°C) Types J,K,E,T, Pt100
±0.5% rdg (+2°F/+1°C) Types R,S
Datalogging 20M data records using a 2G SD card
Dimensions 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
Weight 17.6oz (500g)
